Pinpoint Test E: The Steering Wheel Control Switch Illumination Is Inoperative

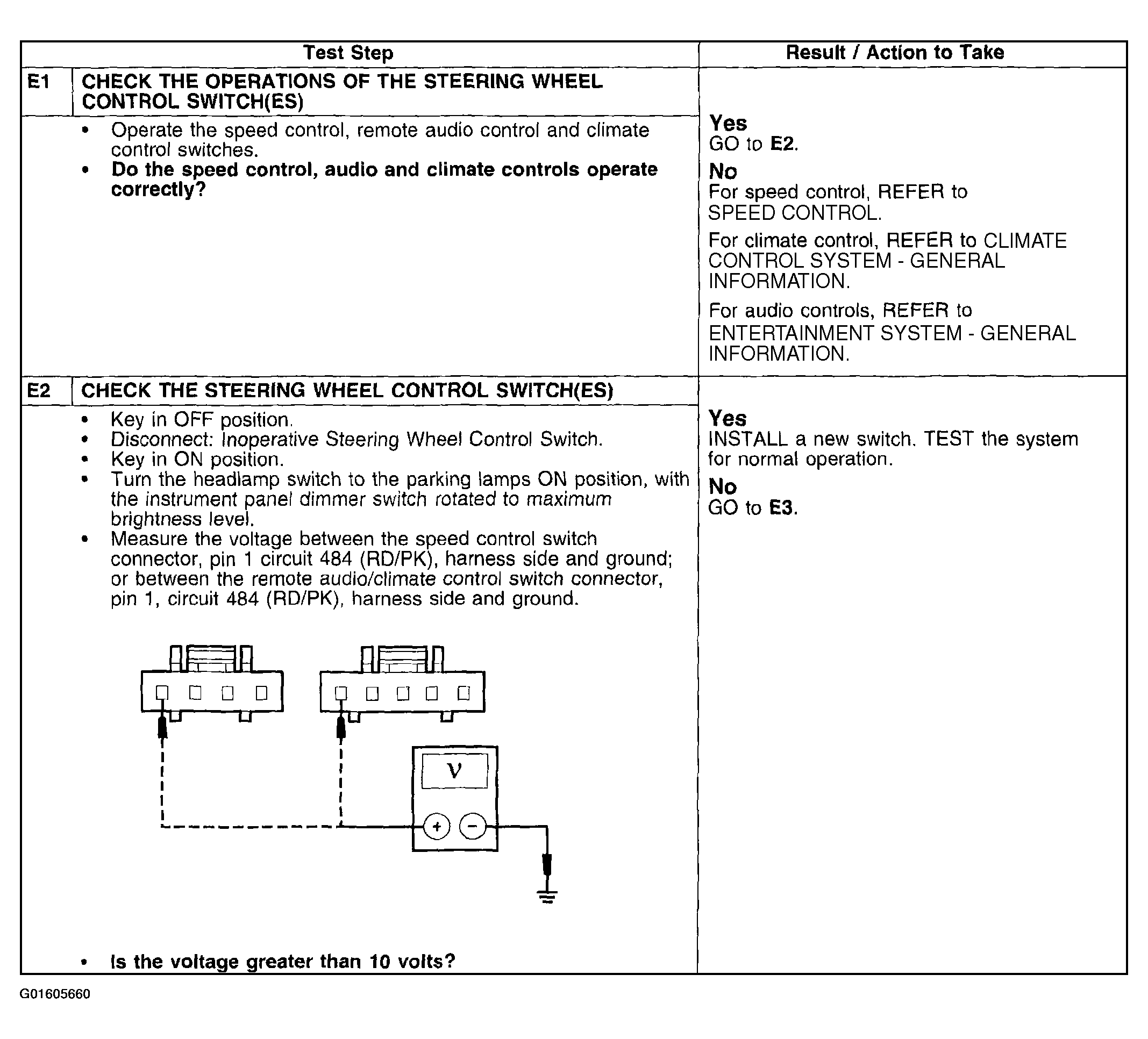

Fig 1: Pinpoint Test E: The Steering Wheel Control Switch Illumination Is Inoperative (E1-E2)
G01605660Courtesy of FORD MOTOR CO.

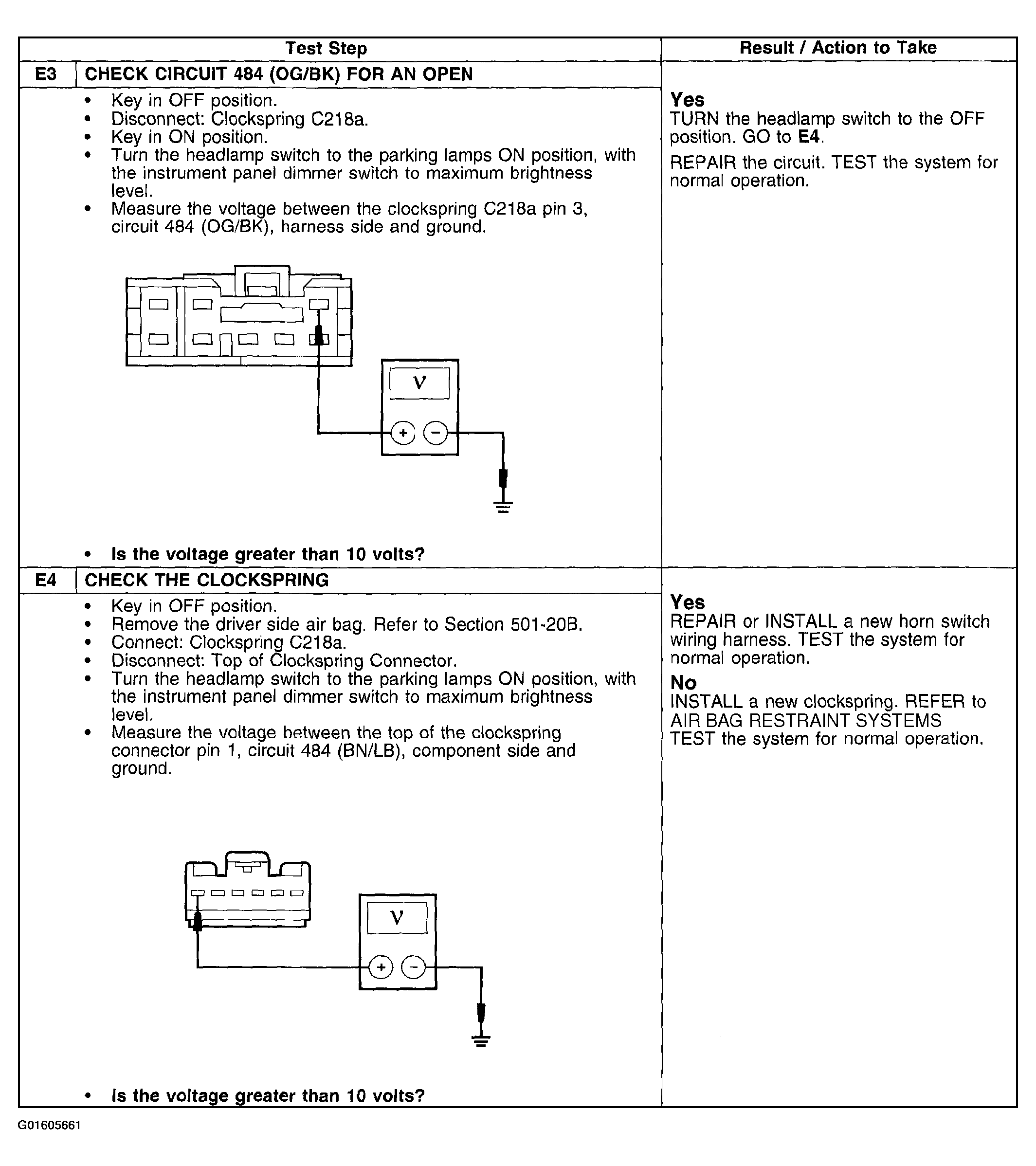

Fig 2: Pinpoint Test E: The Steering Wheel Control Switch Illumination Is Inoperative (E3-E4)
G01605661Courtesy of FORD MOTOR CO.
