Pinpoint Test C: The Climate Control Illumination Is Inoperative

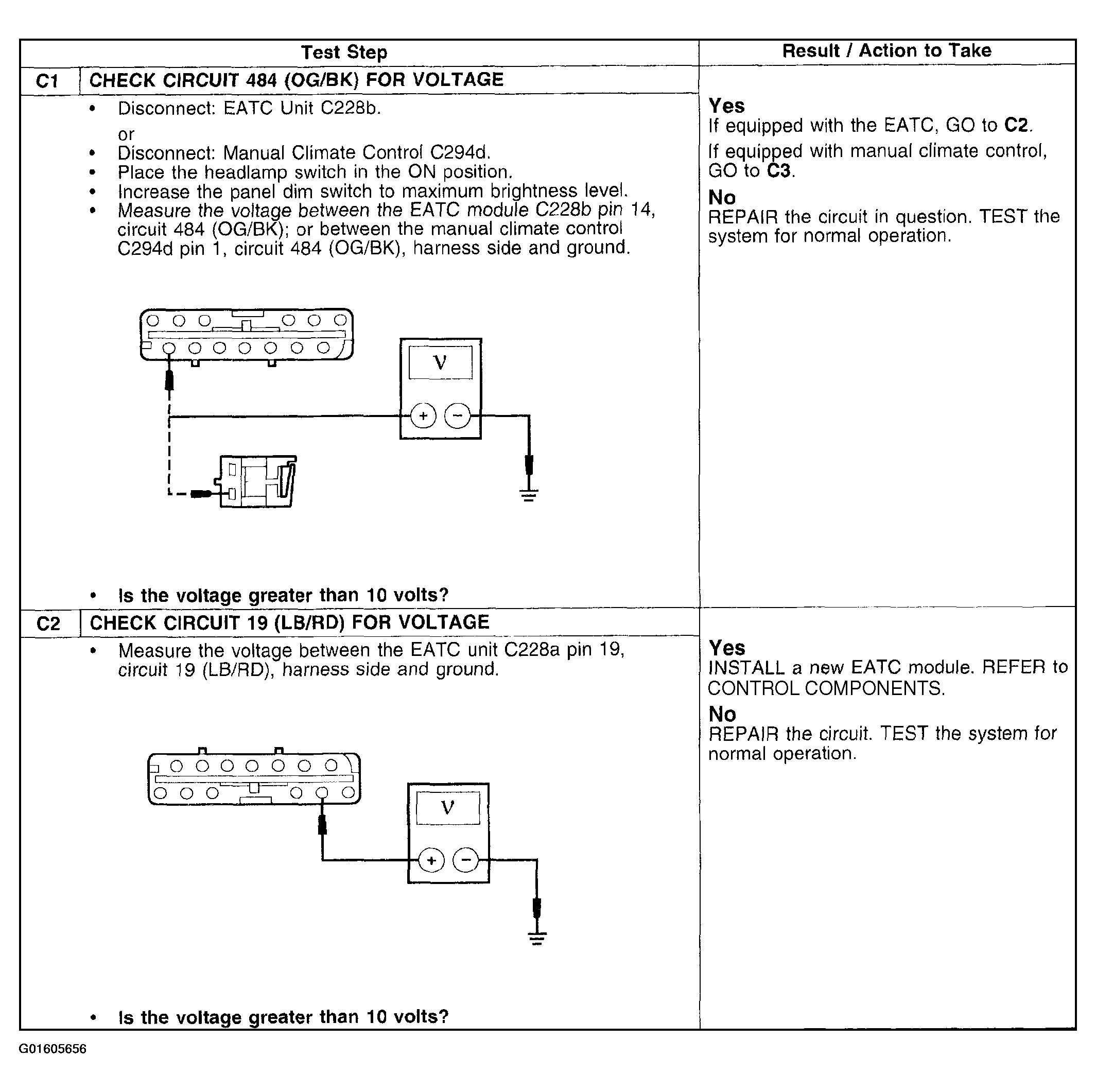

Fig 1: Pinpoint Test C: The Climate Control Illumination Is Inoperative (C1-C2)
G01605656Courtesy of FORD MOTOR CO.

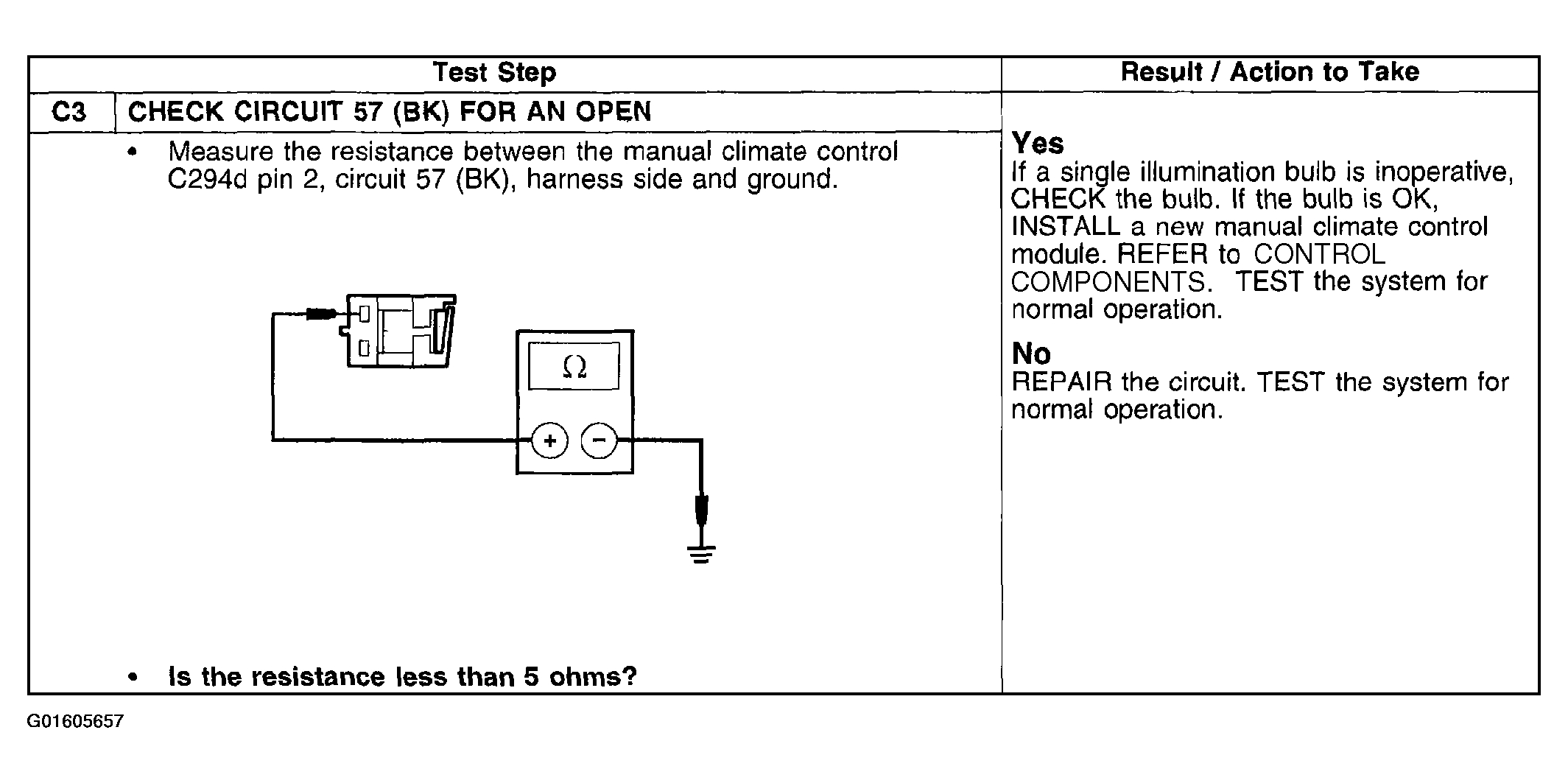

Fig 2: Pinpoint Test C: The Climate Control Illumination Is Inoperative (C3)
G01605657Courtesy of FORD MOTOR CO.
