Pinpoint Test B: The Instrument Cluster Illumination Is Inoperative

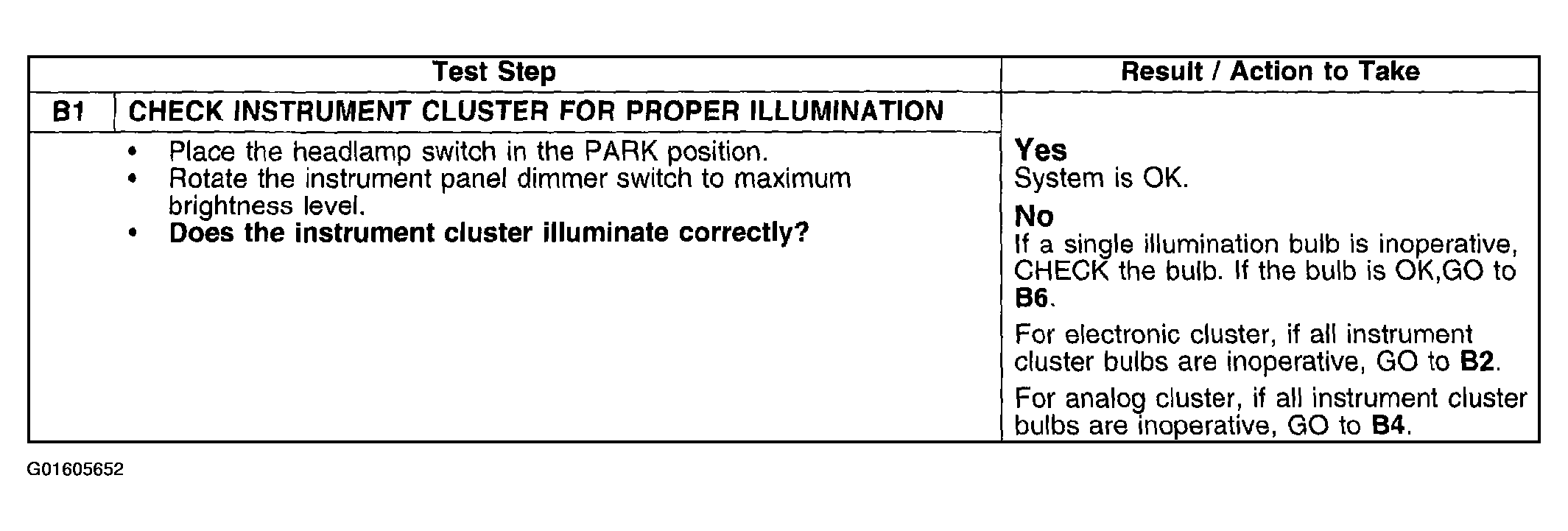

Fig 1: Pinpoint Test B: The Instrument Cluster Illumination Is Inoperative (B1)
G01605652Courtesy of FORD MOTOR CO.

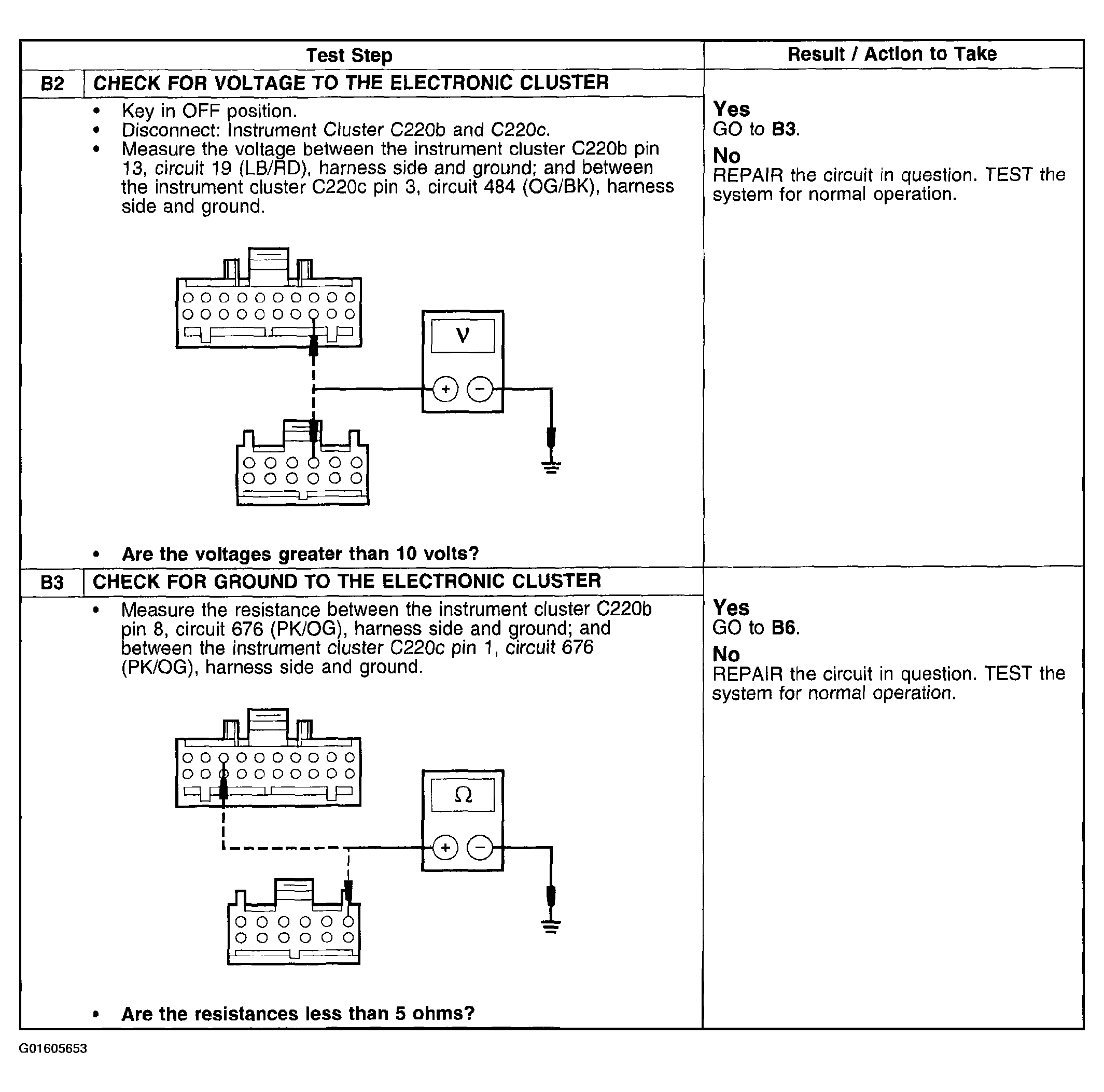

Fig 2: Pinpoint Test B: The Instrument Cluster Illumination Is Inoperative (B2-B3)
G01605653Courtesy of FORD MOTOR CO.

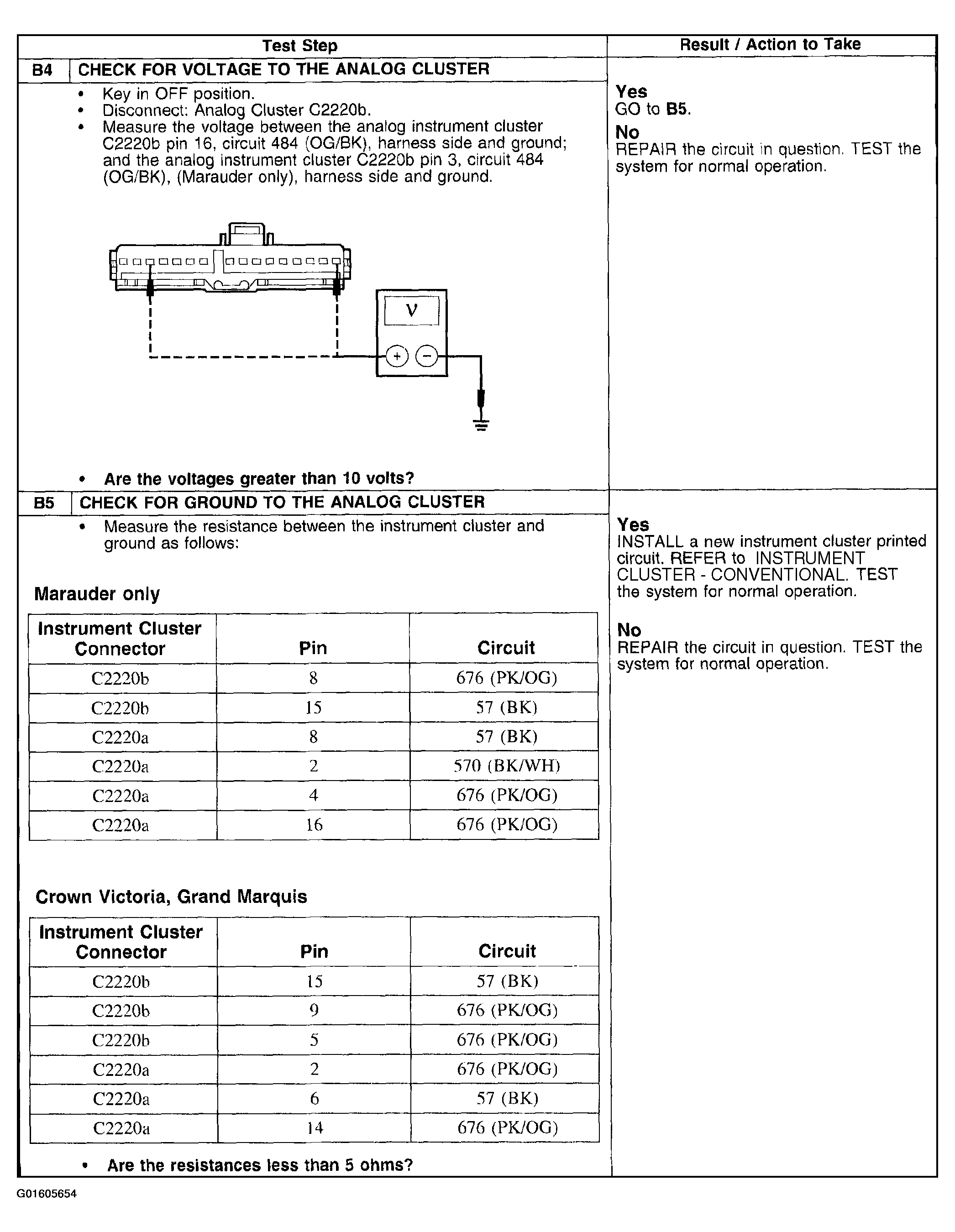

Fig 3: Pinpoint Test B: The Instrument Cluster Illumination Is Inoperative (B4-B5)
G01605654Courtesy of FORD MOTOR CO.

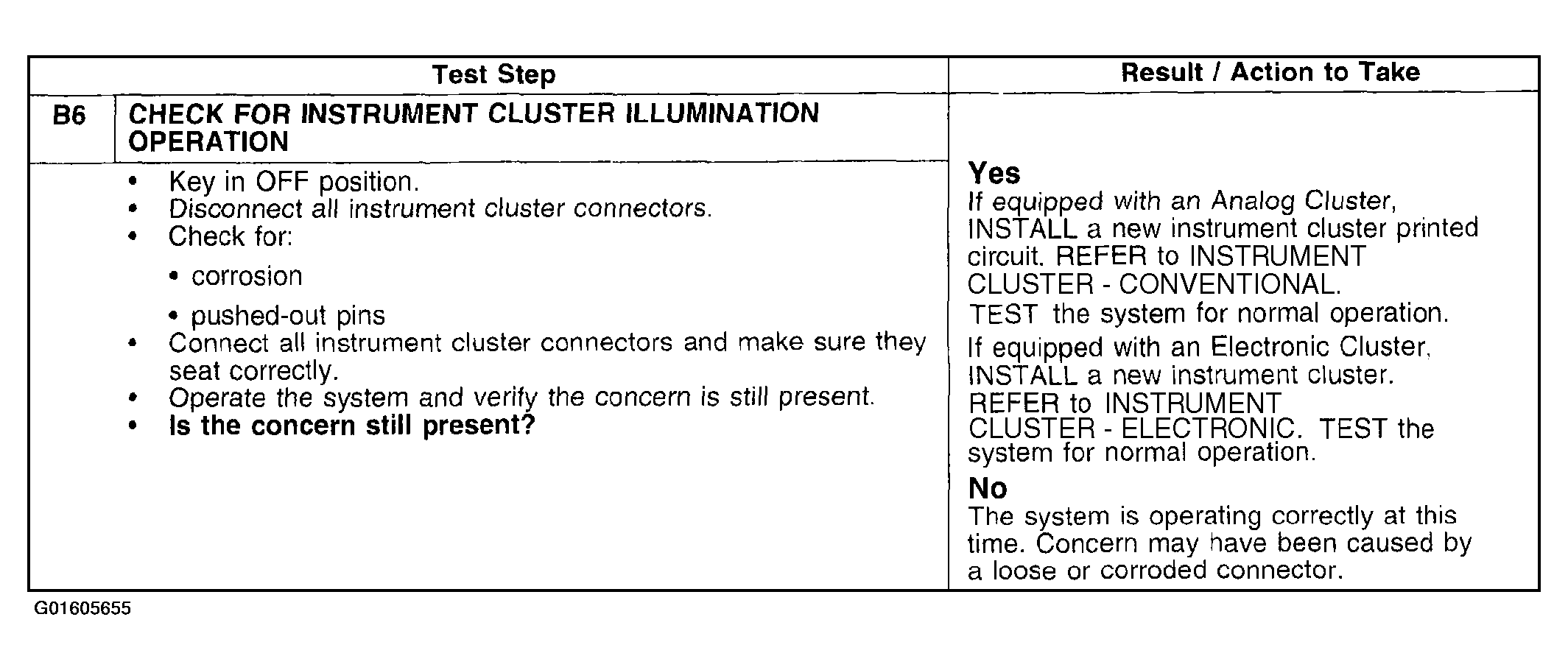

Fig 4: Pinpoint Test B: The Instrument Cluster Illumination Is Inoperative (B6)
G01605655Courtesy of FORD MOTOR CO.
