Pinpoint Test A: Control Illumination Is Inoperative

Fig 1: Pinpoint Test A: Control Illumination Is Inoperative (A1)
G01605649Courtesy of FORD MOTOR CO.

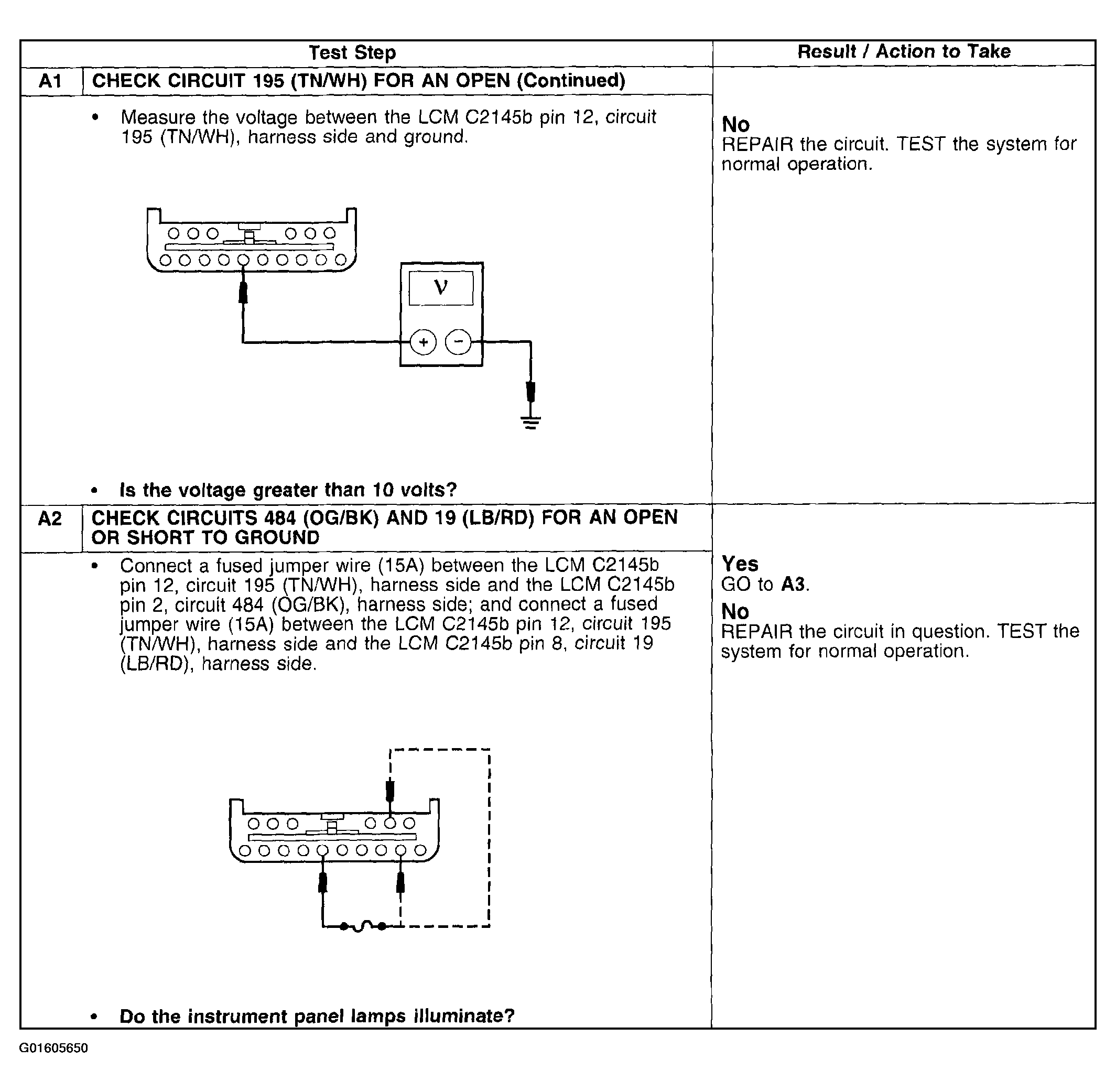

Fig 2: Pinpoint Test A: Control Illumination Is Inoperative (A1 Cont.-A2)
G01605650Courtesy of FORD MOTOR CO.

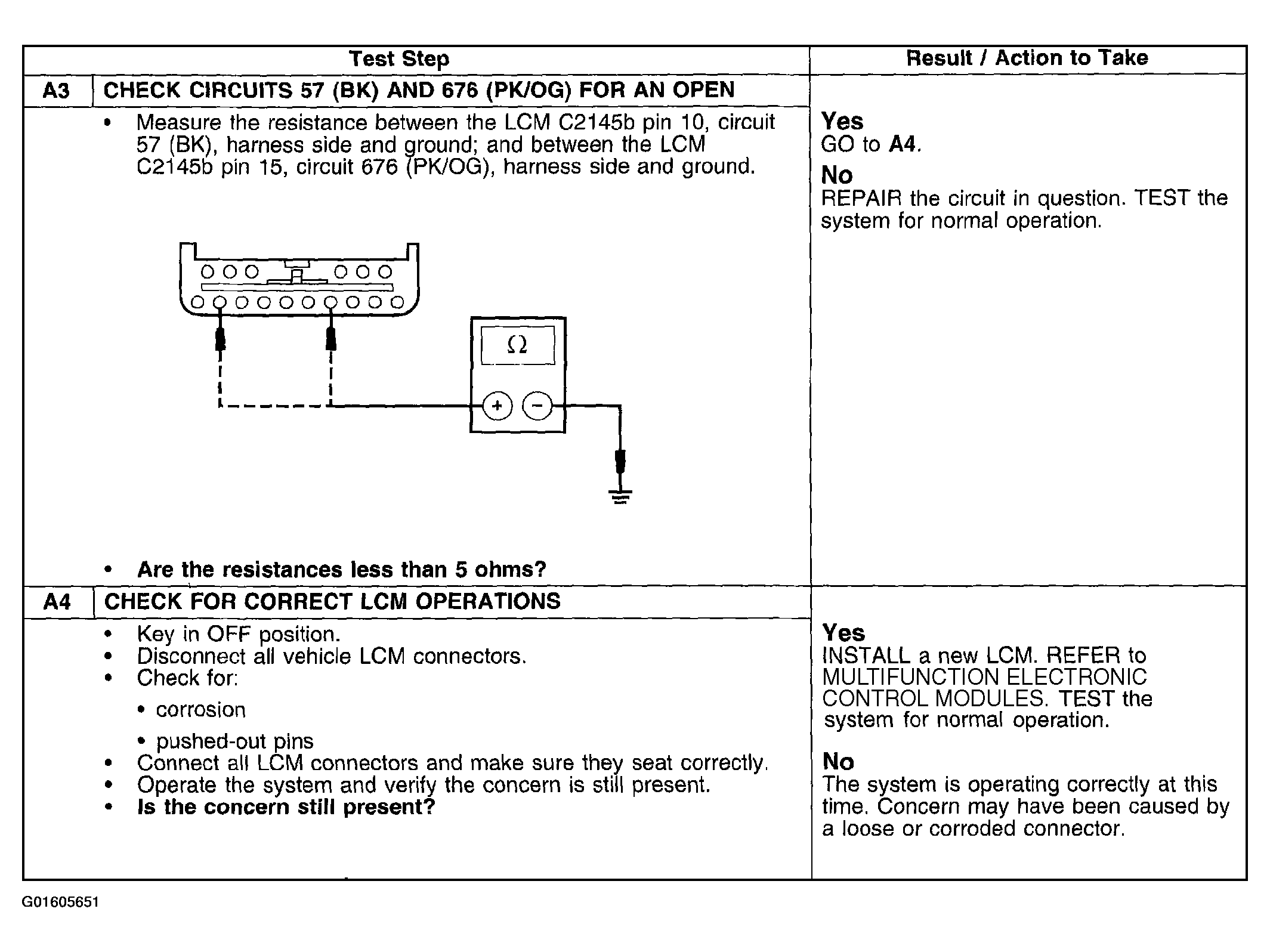

Fig 3: Pinpoint Test A: Control Illumination Is Inoperative (A3-A4)
G01605651Courtesy of FORD MOTOR CO.
