Pinpoint Test X: Instrument Cluster Is Inoperative

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

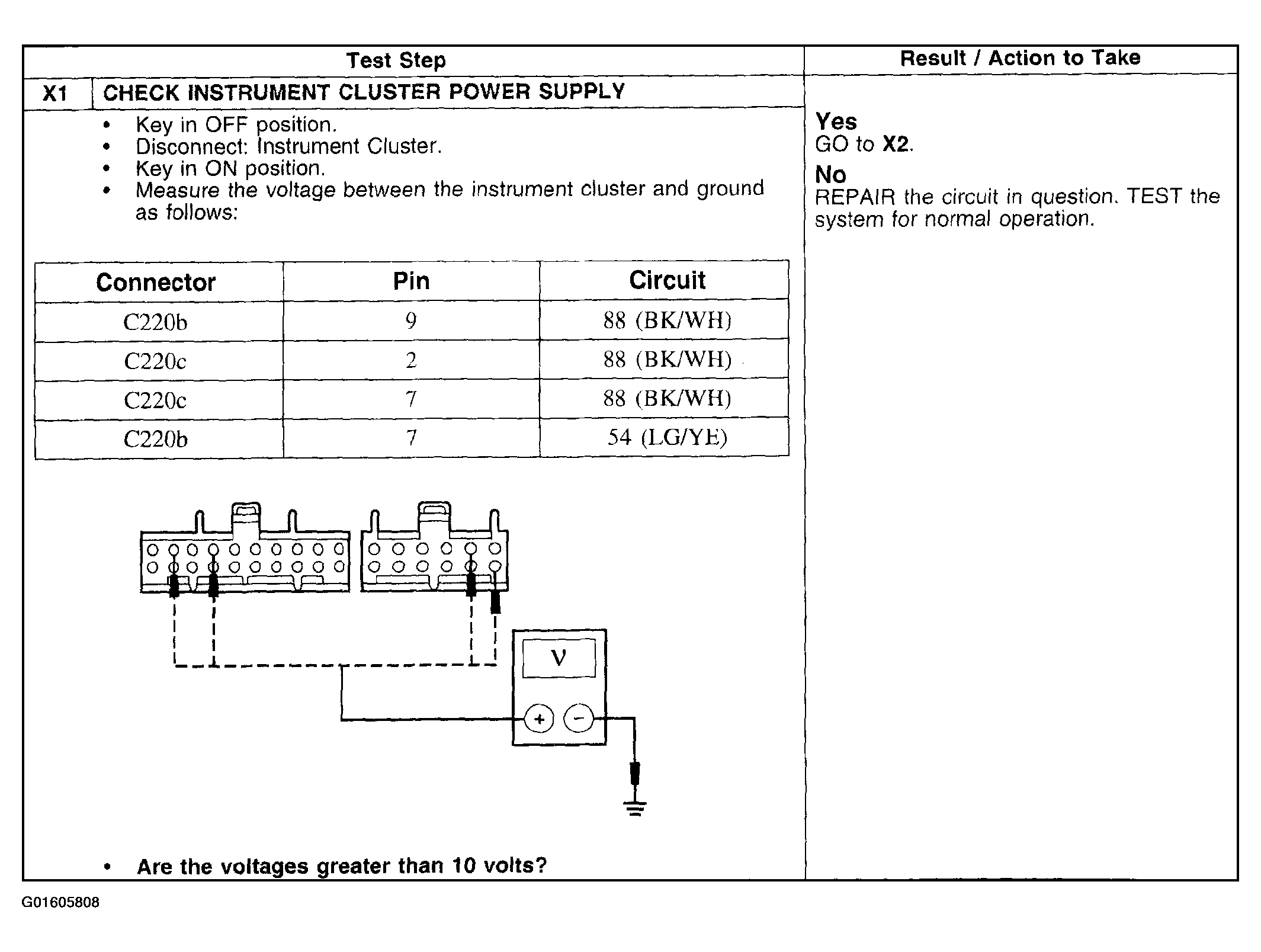

Fig 1: Pinpoint Test X: Instrument Cluster Is Inoperative (X1)
G01605808Courtesy of FORD MOTOR CO.

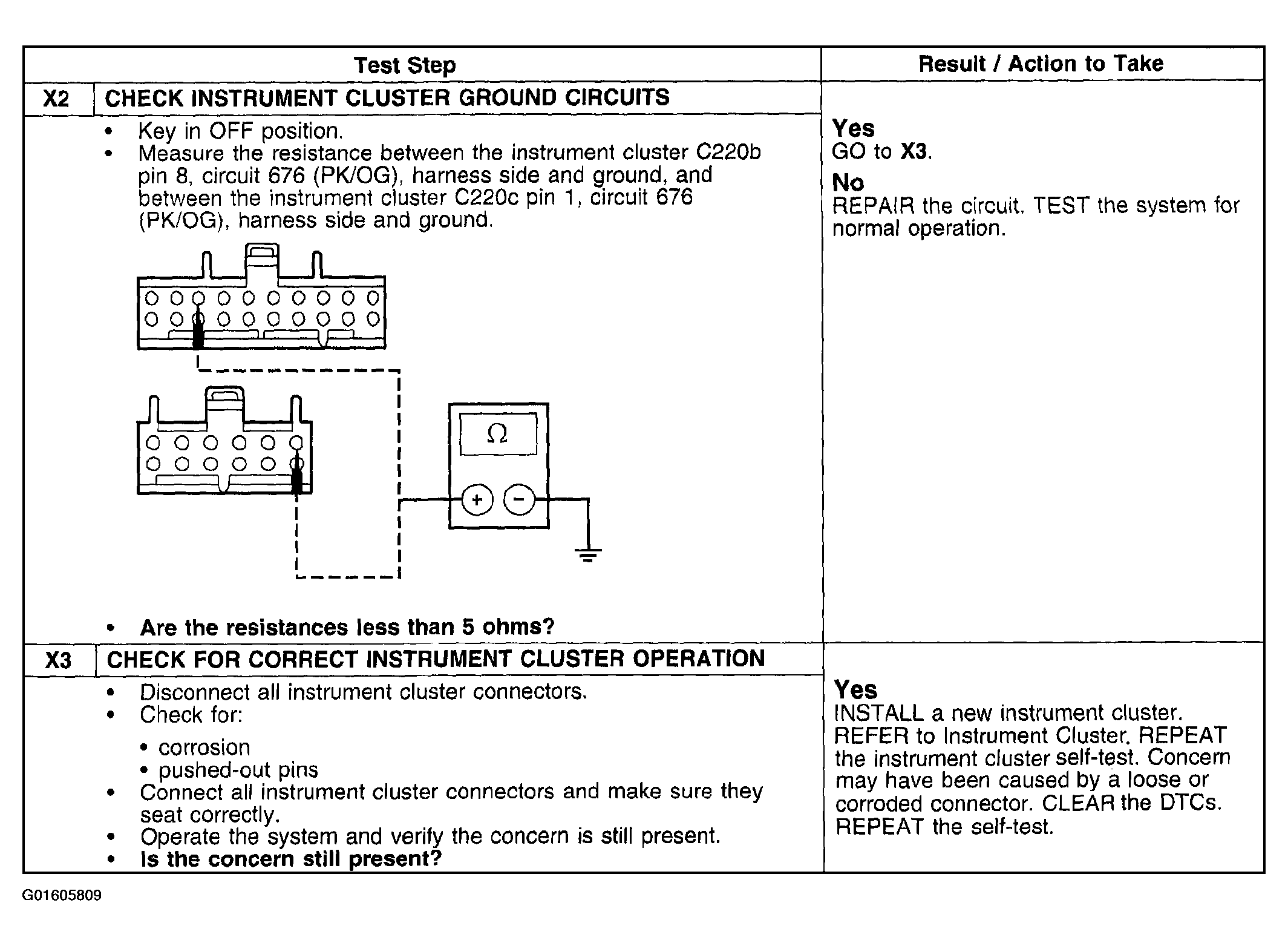

Fig 2: Pinpoint Test X: Instrument Cluster Is Inoperative (X2-X3)
G01605809Courtesy of FORD MOTOR CO.
