Pinpoint Test W: Check Fuel Cap Indicator Is Never/Always On

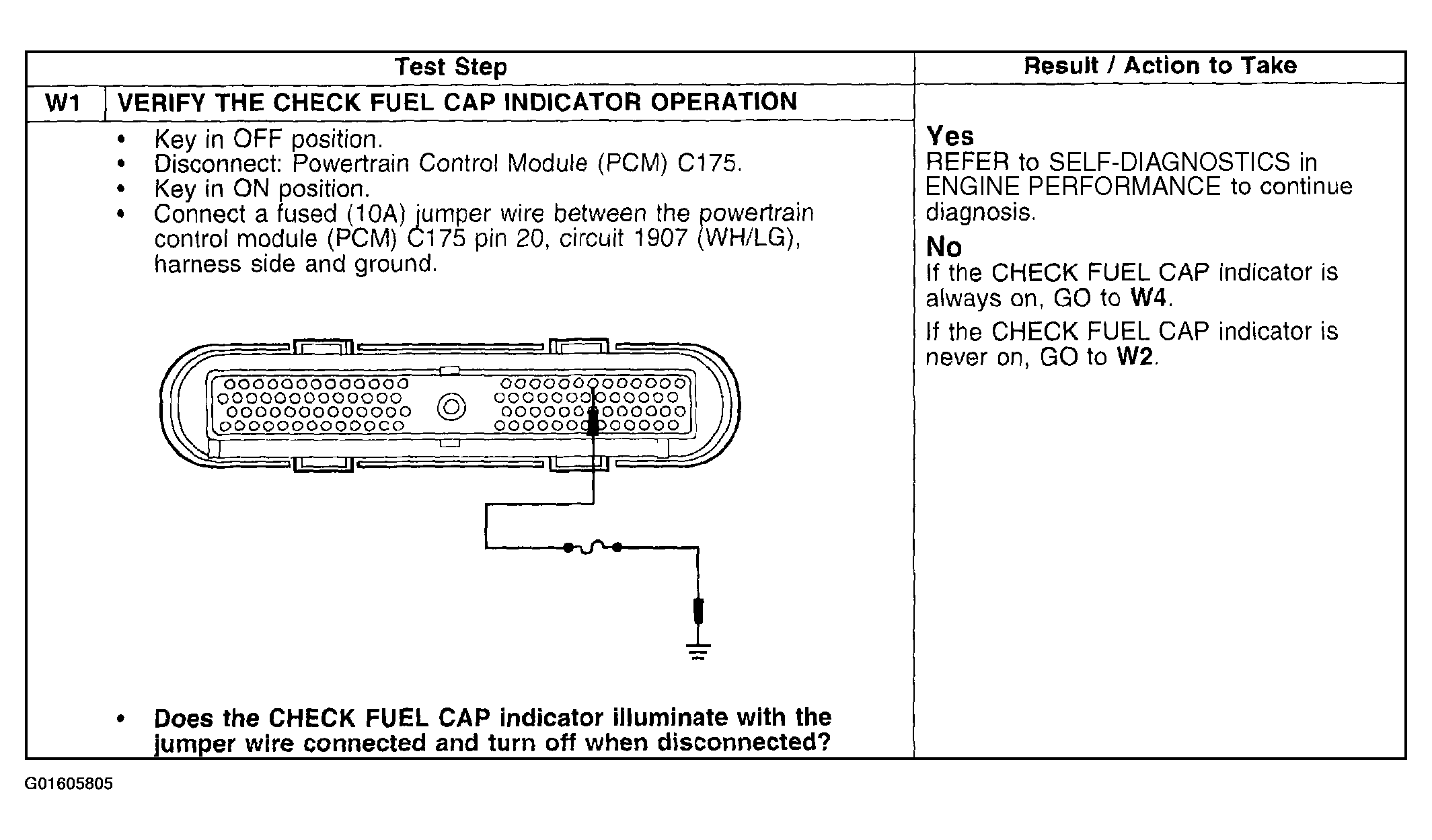

Fig 1: Pinpoint Test W: Check Fuel Cap Indicator Is Never/Always On (W1)

Courtesy of FORD MOTOR CO.

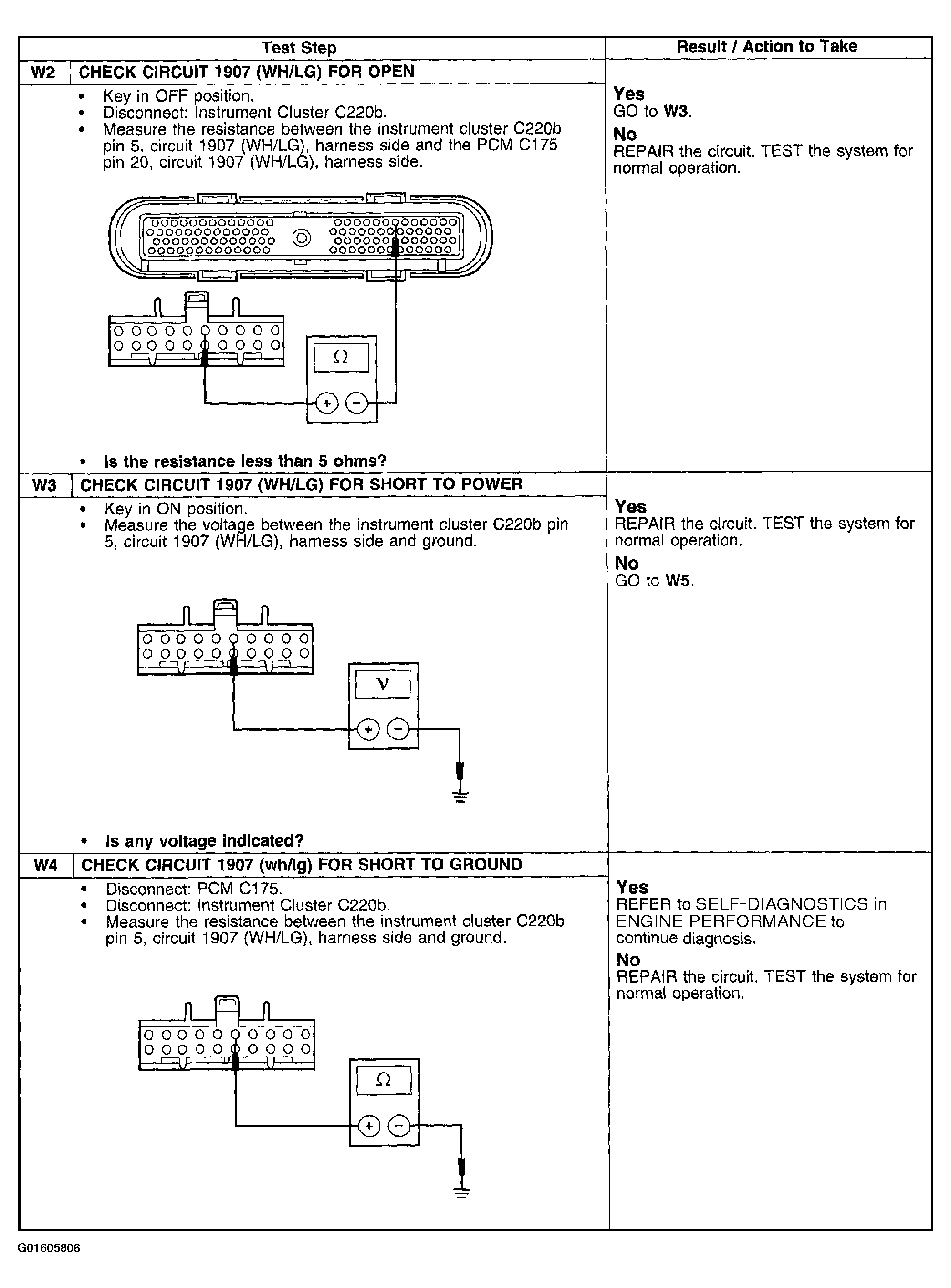

Fig 2: Pinpoint Test W: Check Fuel Cap Indicator Is Never/Always On (W2-W4)

Courtesy of FORD MOTOR CO.

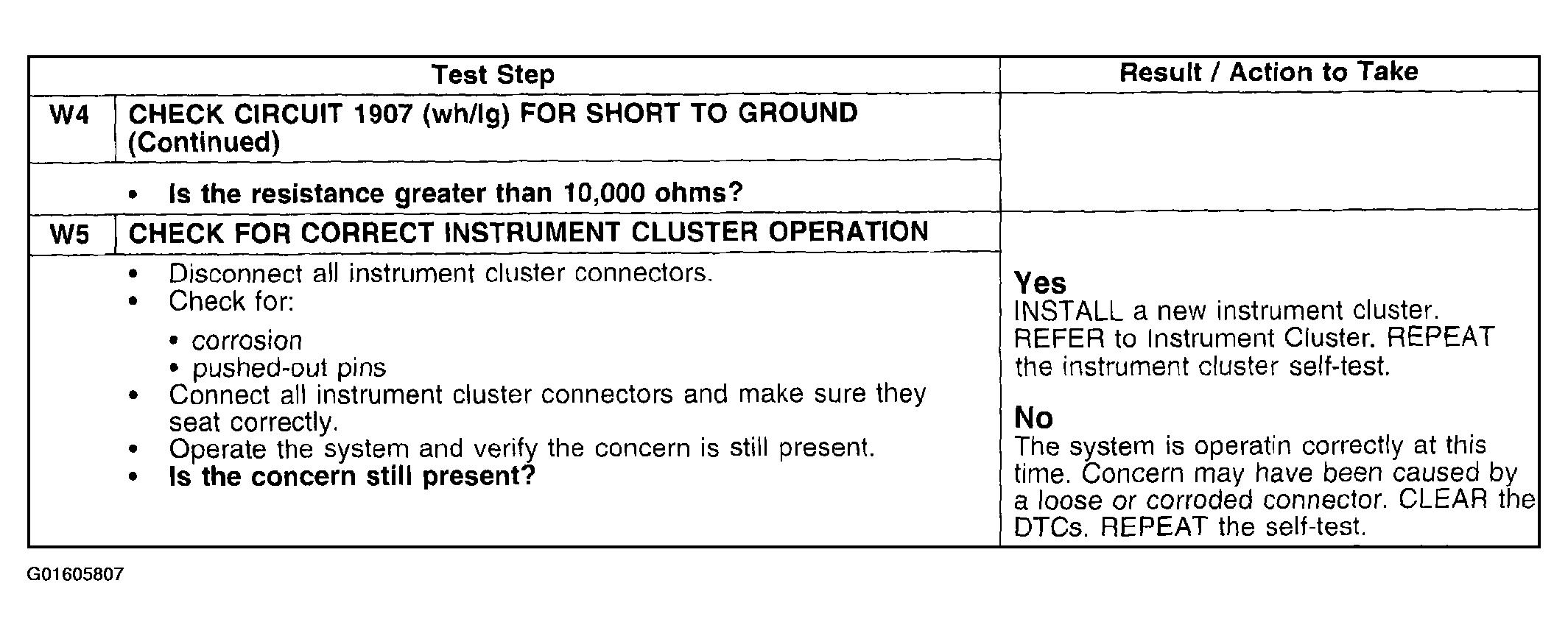

Fig 3: Pinpoint Test W: Check Fuel Cap Indicator Is Never/Always On (W4 Cont.-W5)

Courtesy of FORD MOTOR CO.
