Pinpoint Test U: Low Washer Fluid Indicator Is Never On

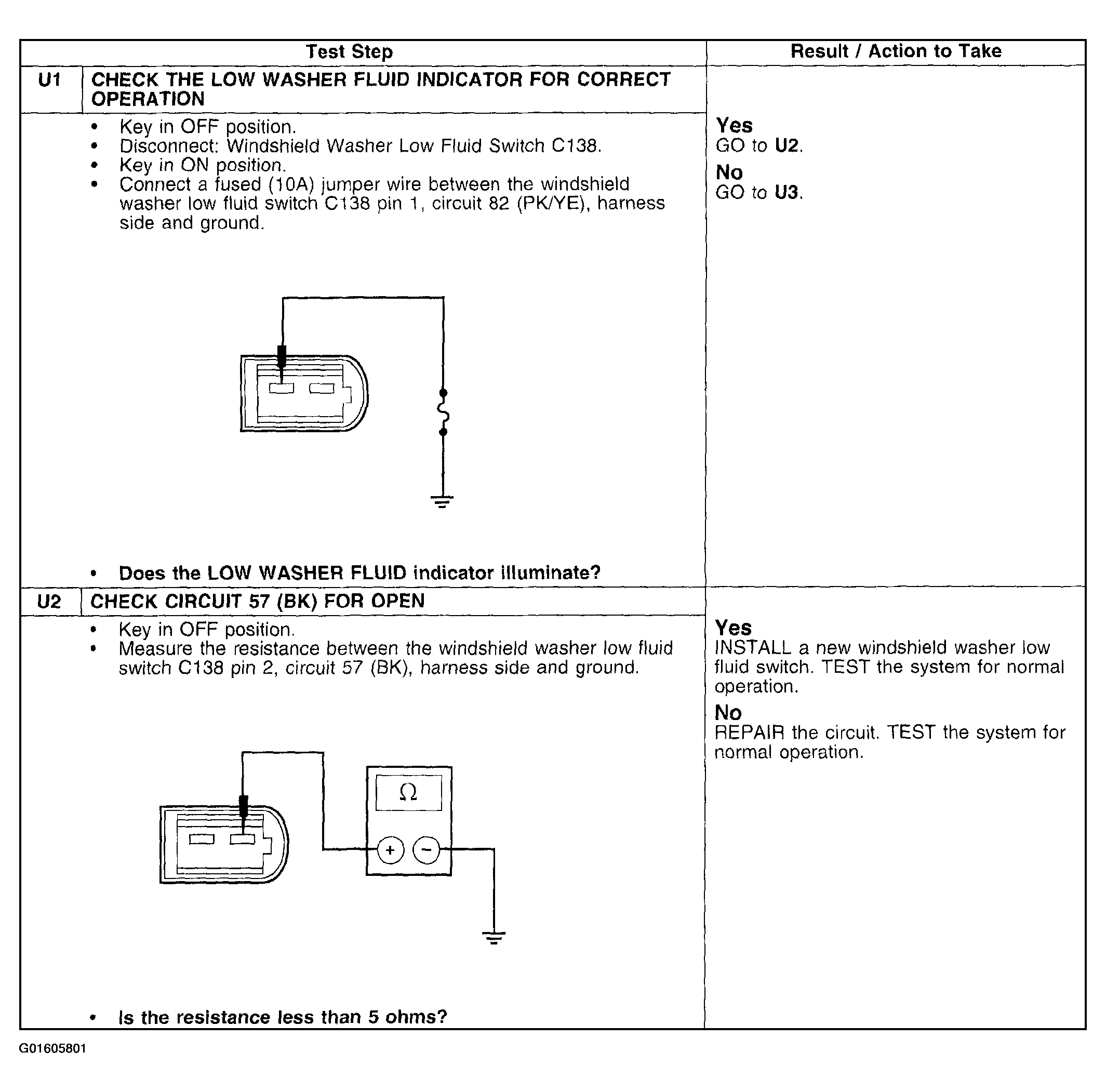

Fig 1: Pinpoint Test U: Low Washer Fluid Indicator Is Never On (U1-U2)

Courtesy of FORD MOTOR CO.

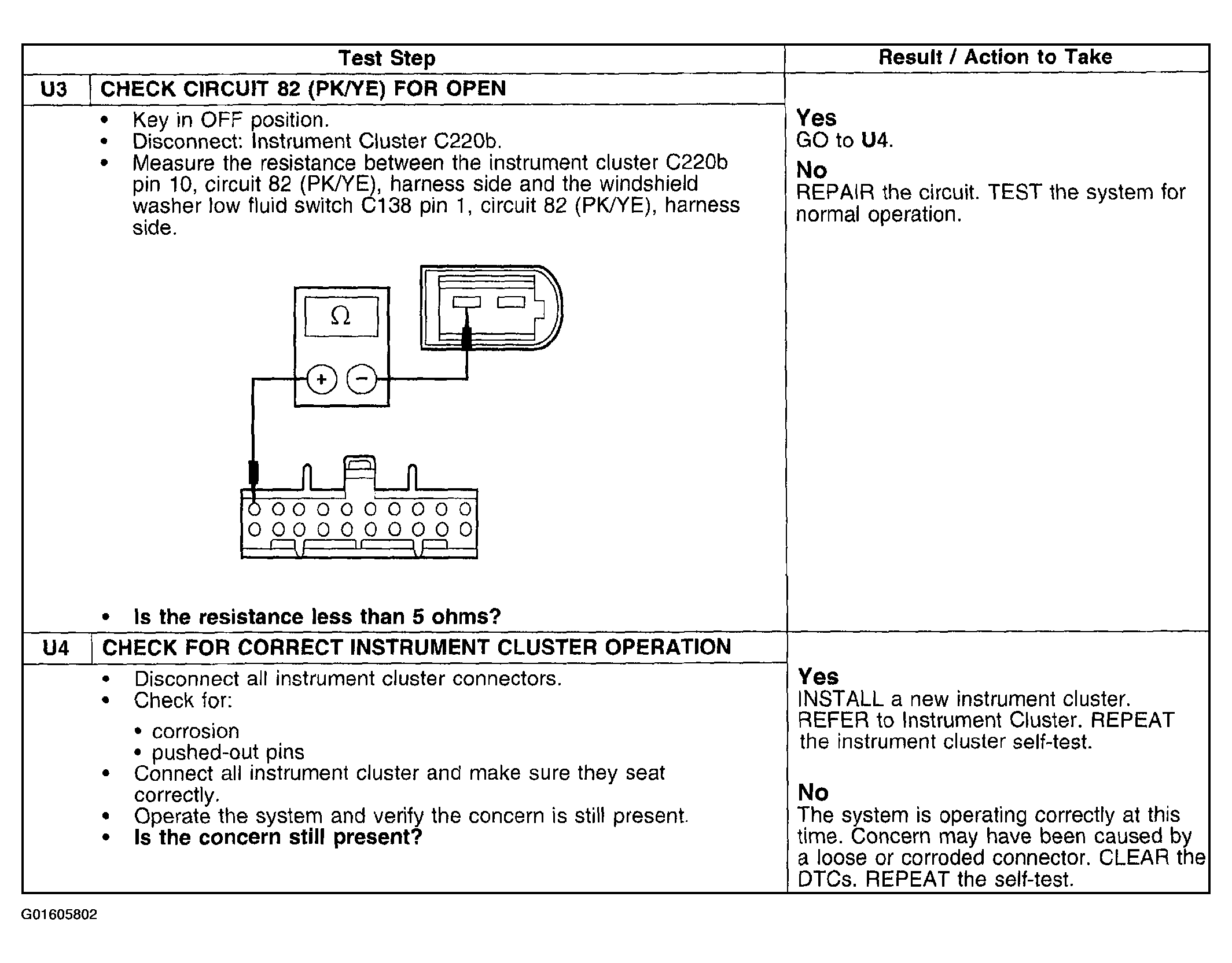

Fig 2: Pinpoint Test U: Low Washer Fluid Indicator Is Never On (U3-U4)

Courtesy of FORD MOTOR CO.
