Pinpoint Test T: Trunk Ajar Indicator Is Never On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

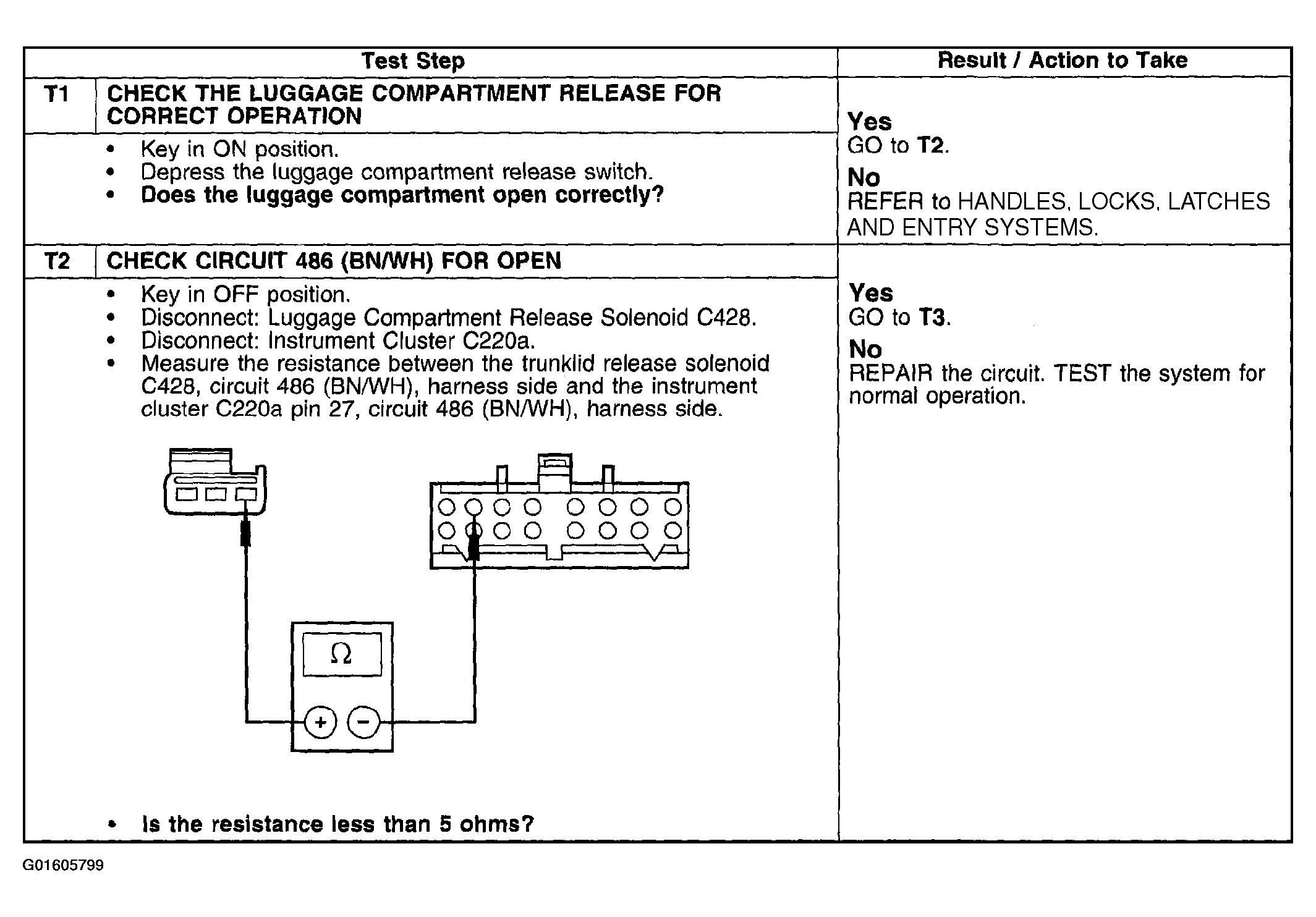

Fig 1: Pinpoint Test T: Trunk Ajar Indicator Is Never On (T1-T2)
G01605799Courtesy of FORD MOTOR CO.

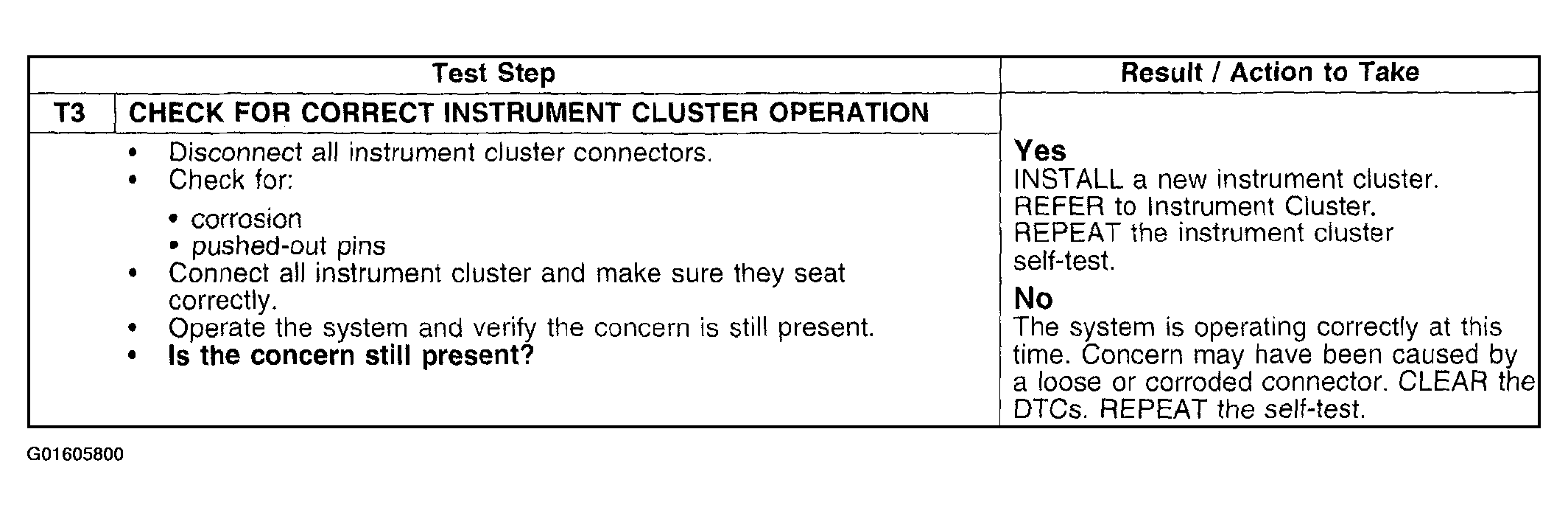

Fig 2: Pinpoint Test T: Trunk Ajar Indicator Is Never On (T3)
G01605800Courtesy of FORD MOTOR CO.
