Pinpoint Test S: Door Ajar Warning Indicator Is Never On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

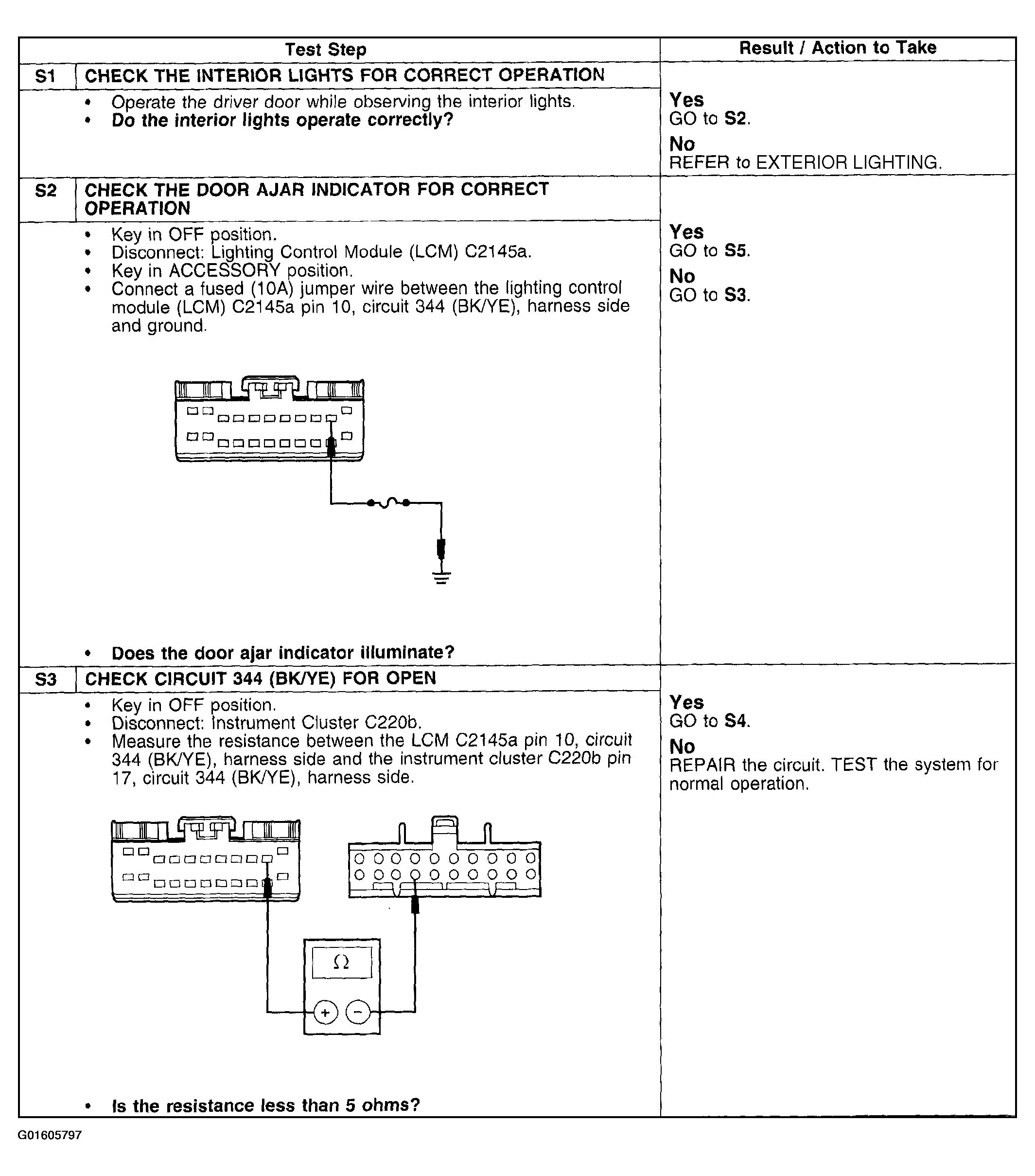

Fig 1: Pinpoint Test S: Door Ajar Warning Indicator Is Never On (S1-S3)
G01605797Courtesy of FORD MOTOR CO.

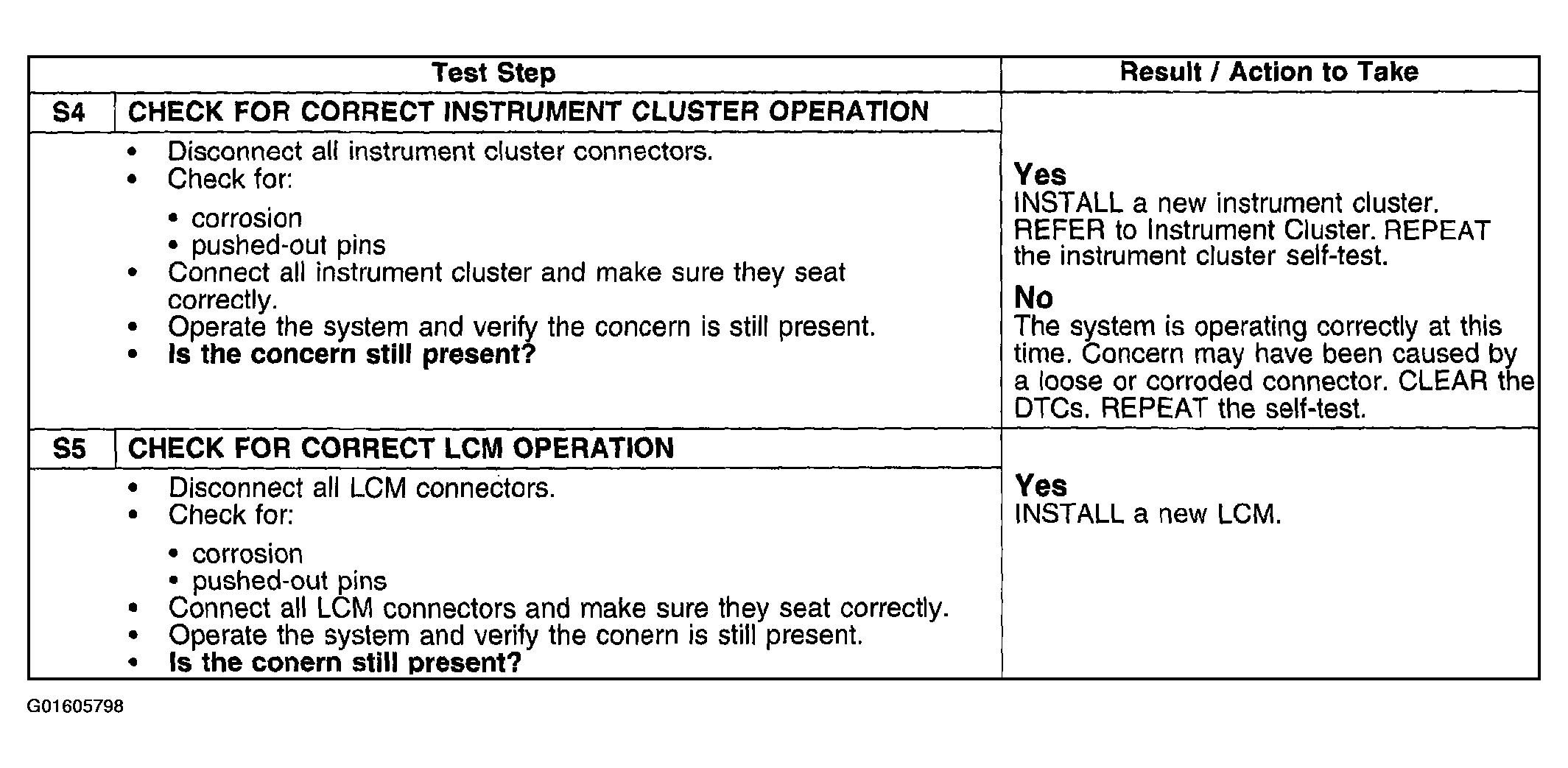

Fig 2: Pinpoint Test S: Door Ajar Warning Indicator Is Never On (S4-S5)
G01605798Courtesy of FORD MOTOR CO.
