Pinpoint Test R: Fail-Safe Cooling Indicator Is Inoperative

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

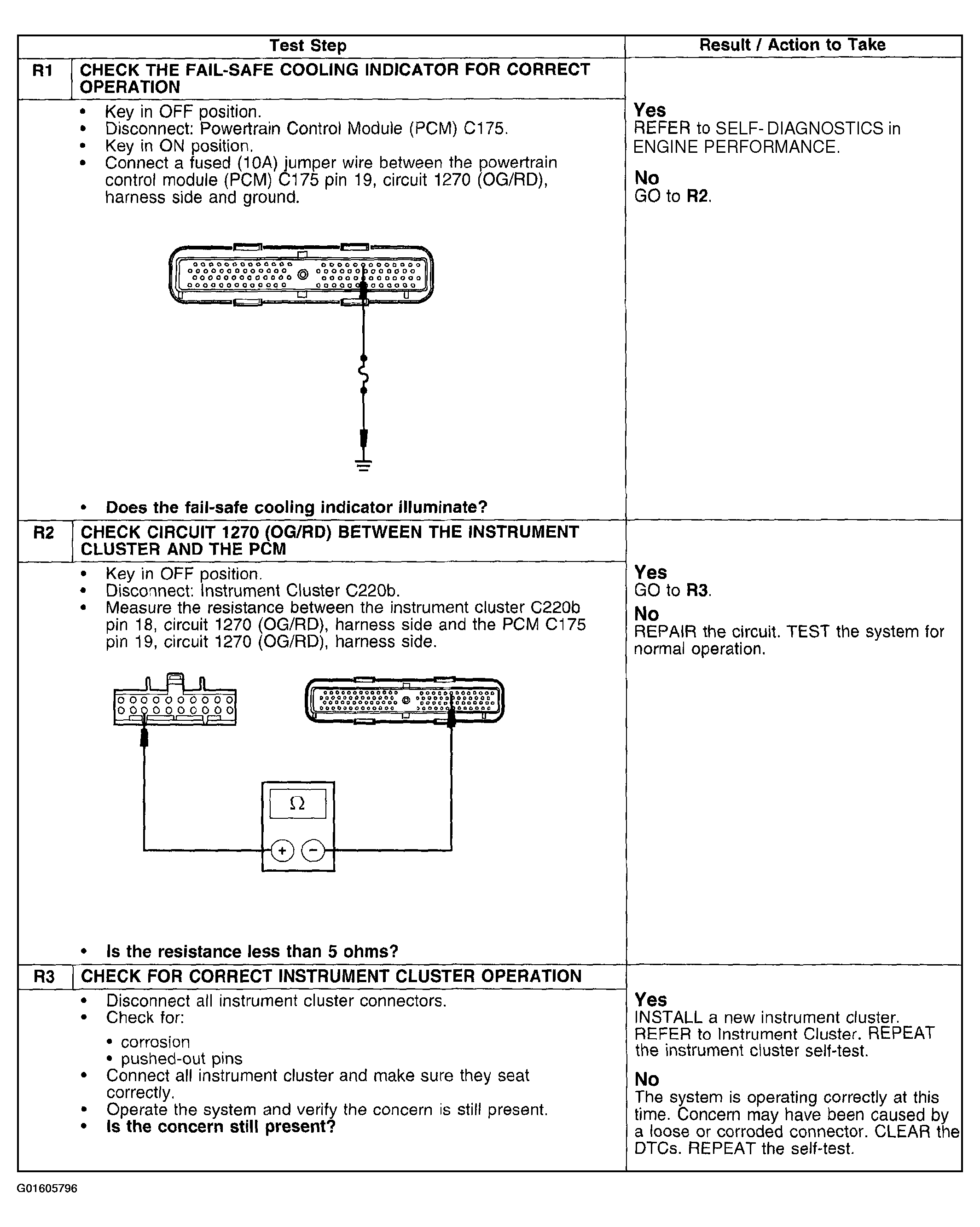

Fig 1: Pinpoint Test R: Fail-Safe Cooling Indicator Is Inoperative
G01605796Courtesy of FORD MOTOR CO.
