Pinpoint Test Q: ABS Warning Indicator Is Never On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

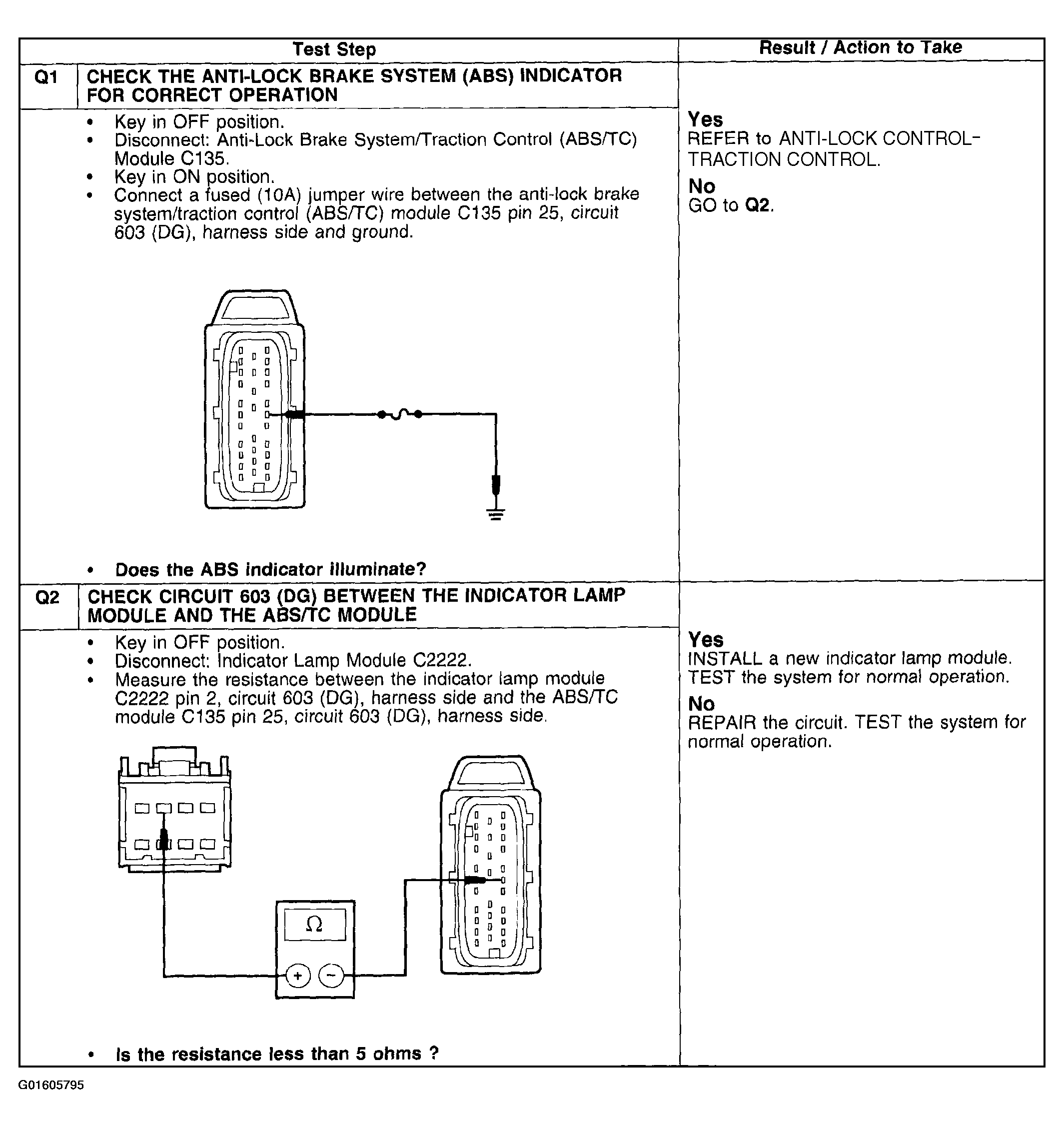

Fig 1: Pinpoint Test Q: ABS Warning Indicator Is Never On
G01605795Courtesy of FORD MOTOR CO.
