Pinpoint Test N: High Beam Indicator Is Never On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

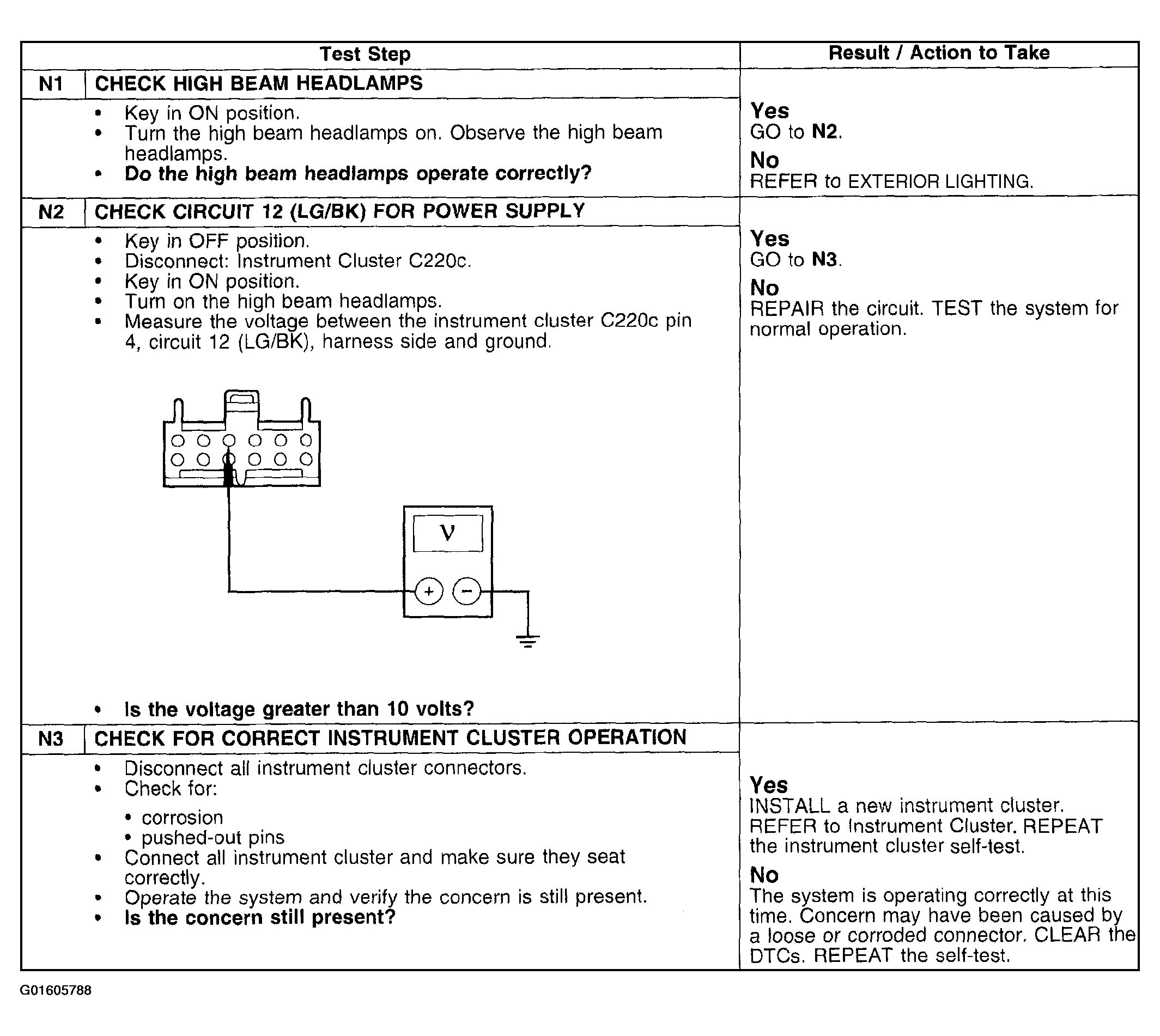

Fig 1: Pinpoint Test N: High Beam Indicator Is Never On
G01605788Courtesy of FORD MOTOR CO.
