Pinpoint Test M: RH Turn Indicator Is Never/Always On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

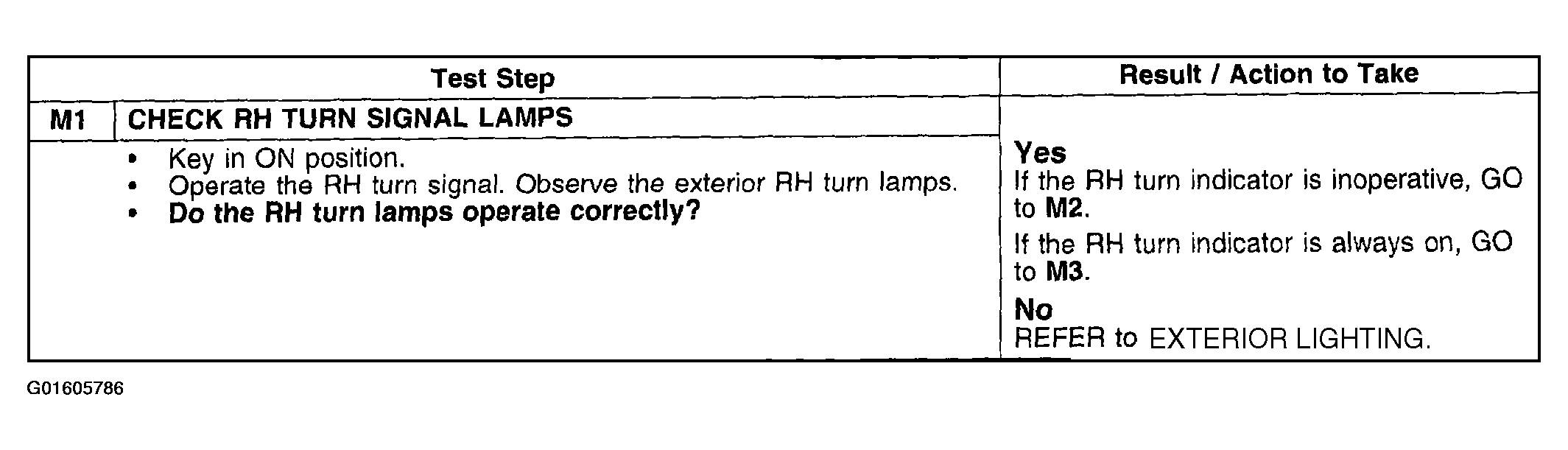

Fig 1: Pinpoint Test M: RH Turn Indicator Is Never/Always On (M1)
G01605786Courtesy of FORD MOTOR CO.

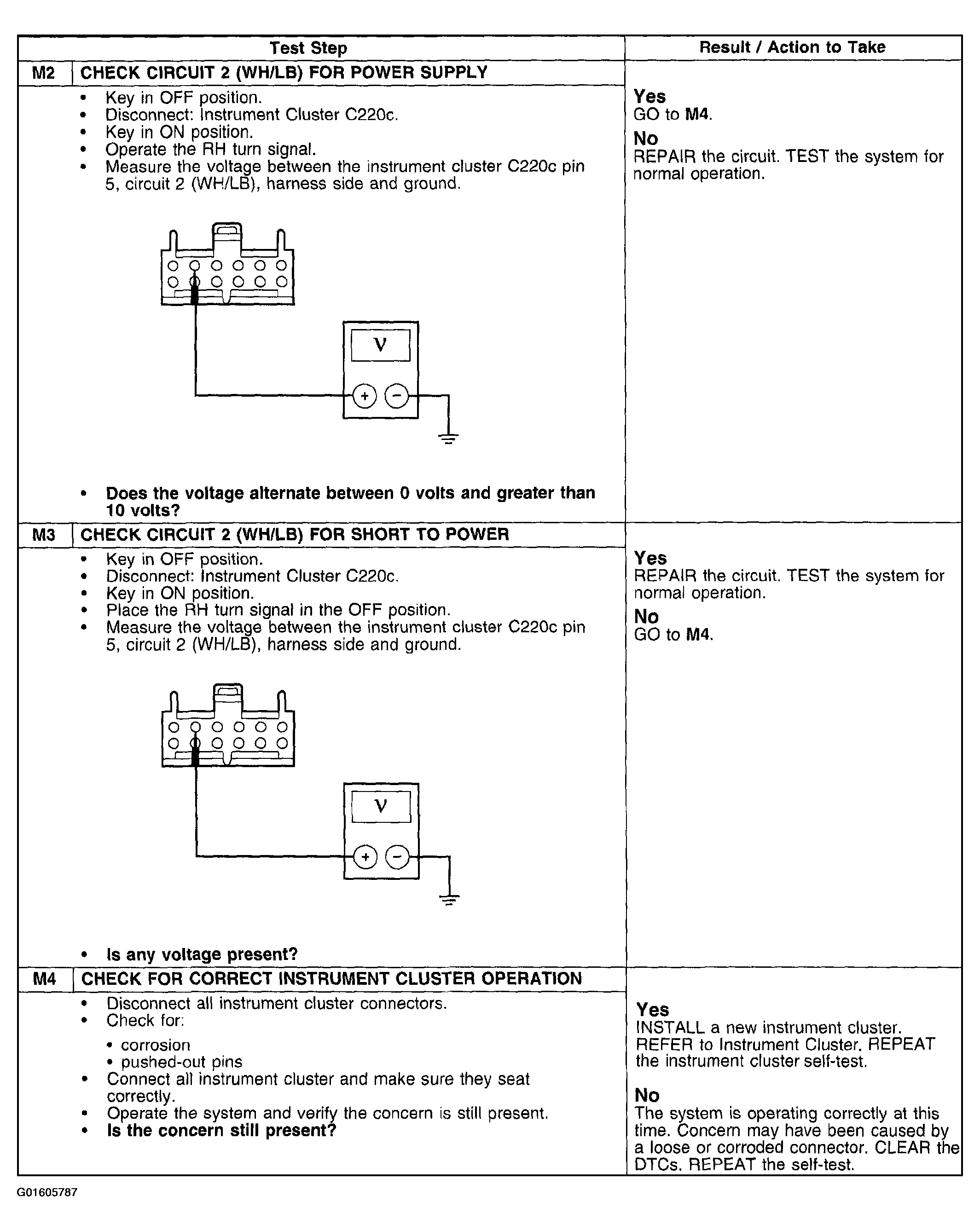

Fig 2: Pinpoint Test M: RH Turn Indicator Is Never/Always On (M2-M4)
G01605787Courtesy of FORD MOTOR CO.
