Pinpoint Test K: Check Air Suspension Indicator Is Inoperative/Always On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

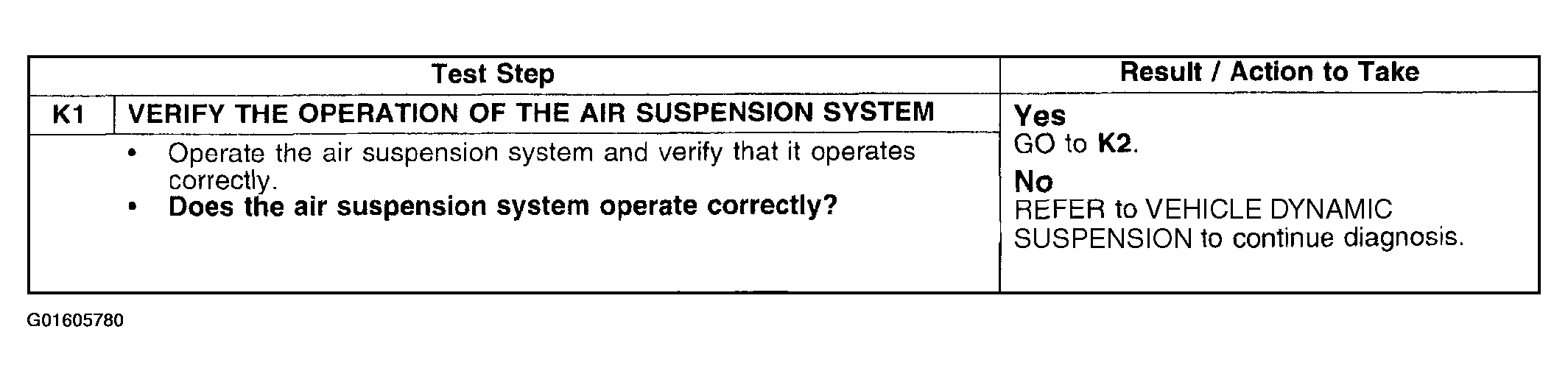

Fig 1: Pinpoint Test K: Check Air Suspension Indicator Is Inoperative/Always On (K1)

Courtesy of FORD MOTOR CO.

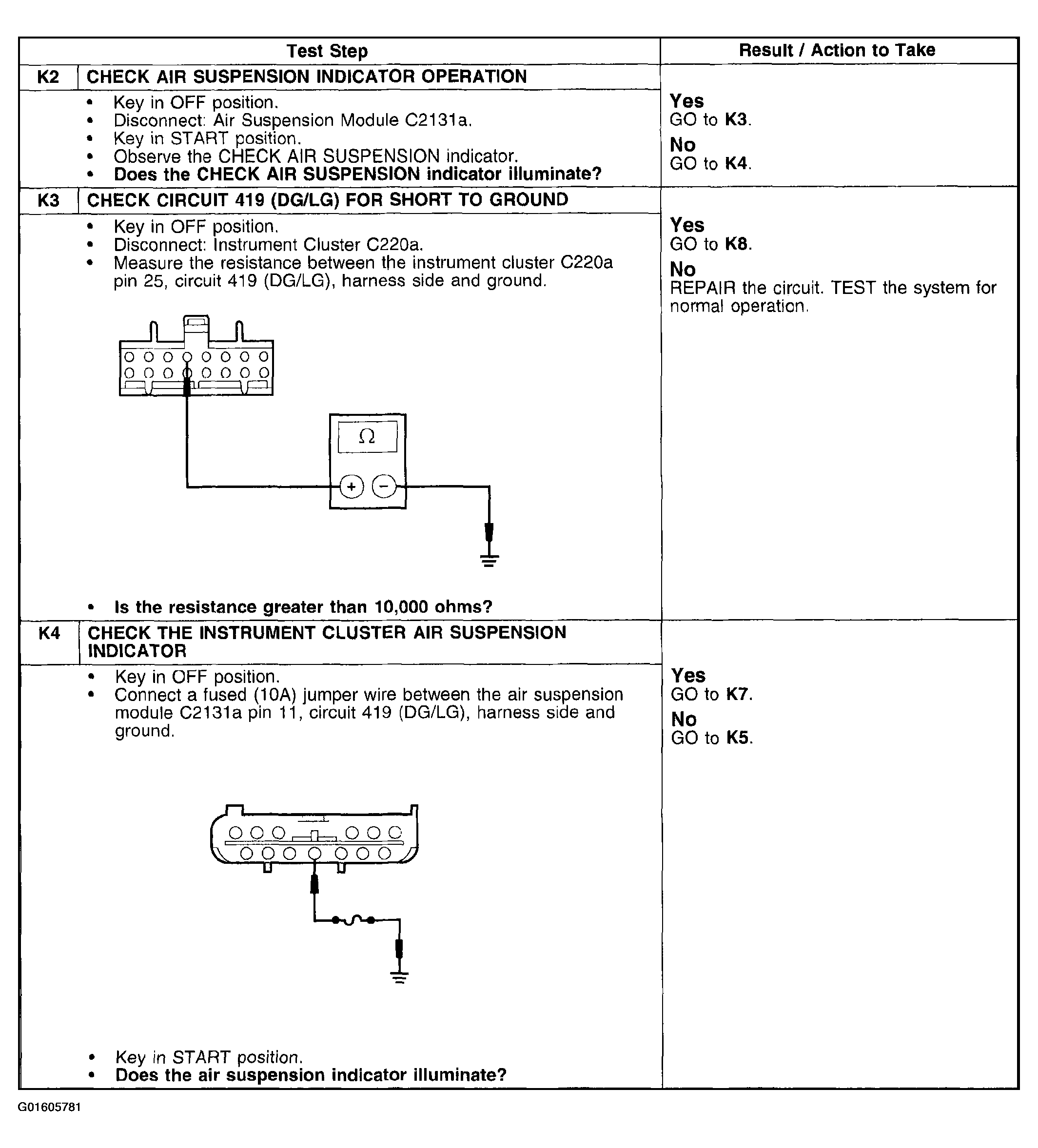

Fig 2: Pinpoint Test K: Check Air Suspension Indicator Is Inoperative/Always On (K2-K4)

Courtesy of FORD MOTOR CO.

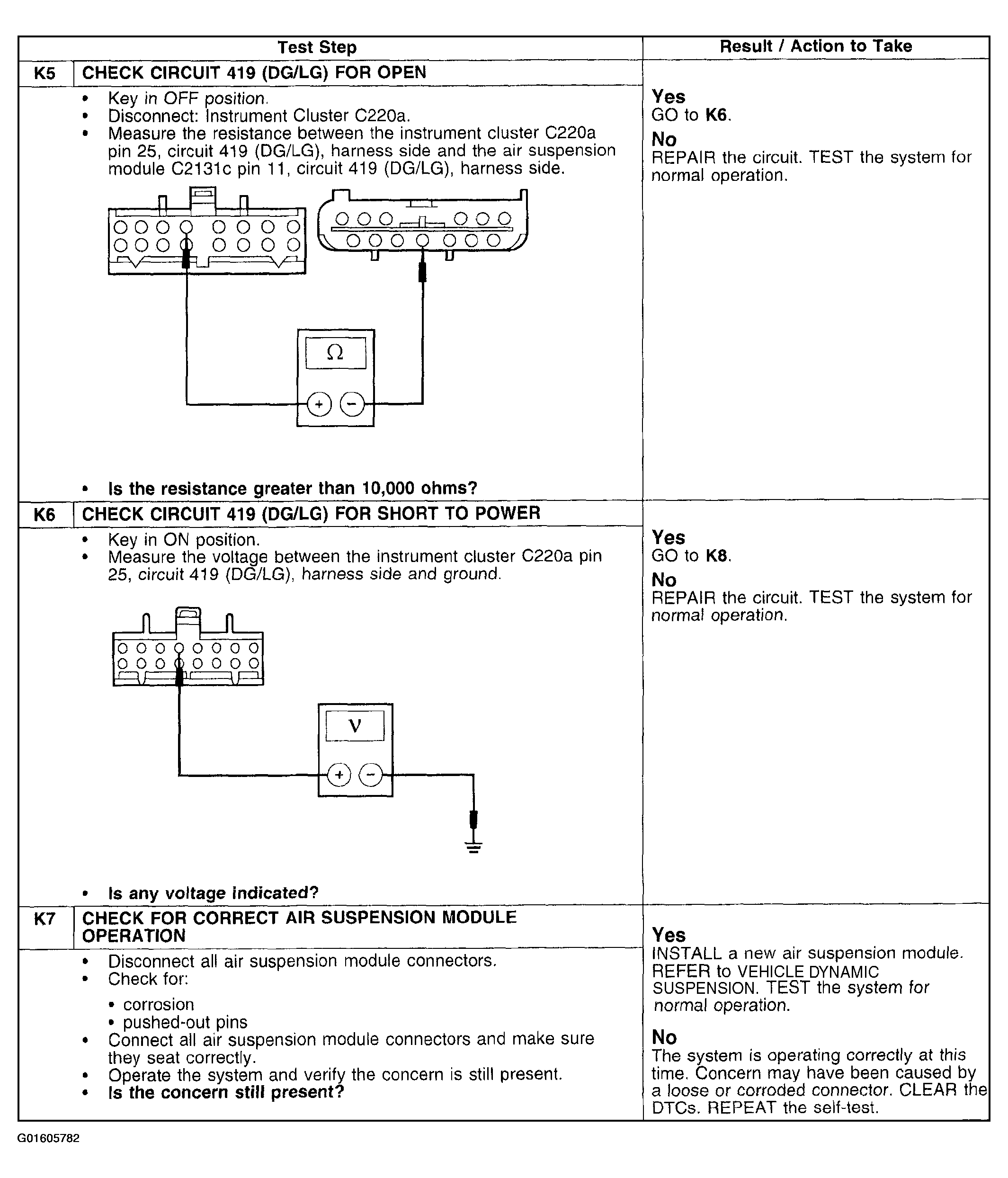

Fig 3: Pinpoint Test K: Check Air Suspension Indicator Is Inoperative/Always On (K5-K7)

Courtesy of FORD MOTOR CO.

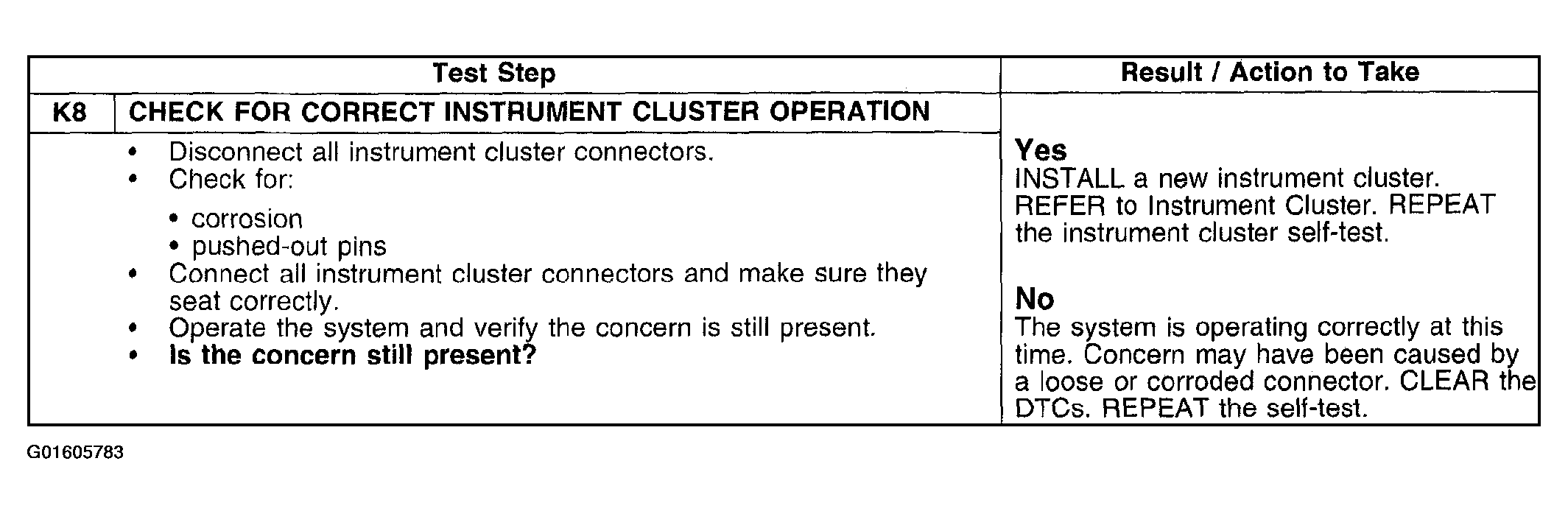

Fig 4: Pinpoint Test K: Check Air Suspension Indicator Is Inoperative/Always On (K8)

Courtesy of FORD MOTOR CO.
