Pinpoint Test G: Charging System Warning Indicator Is Never On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

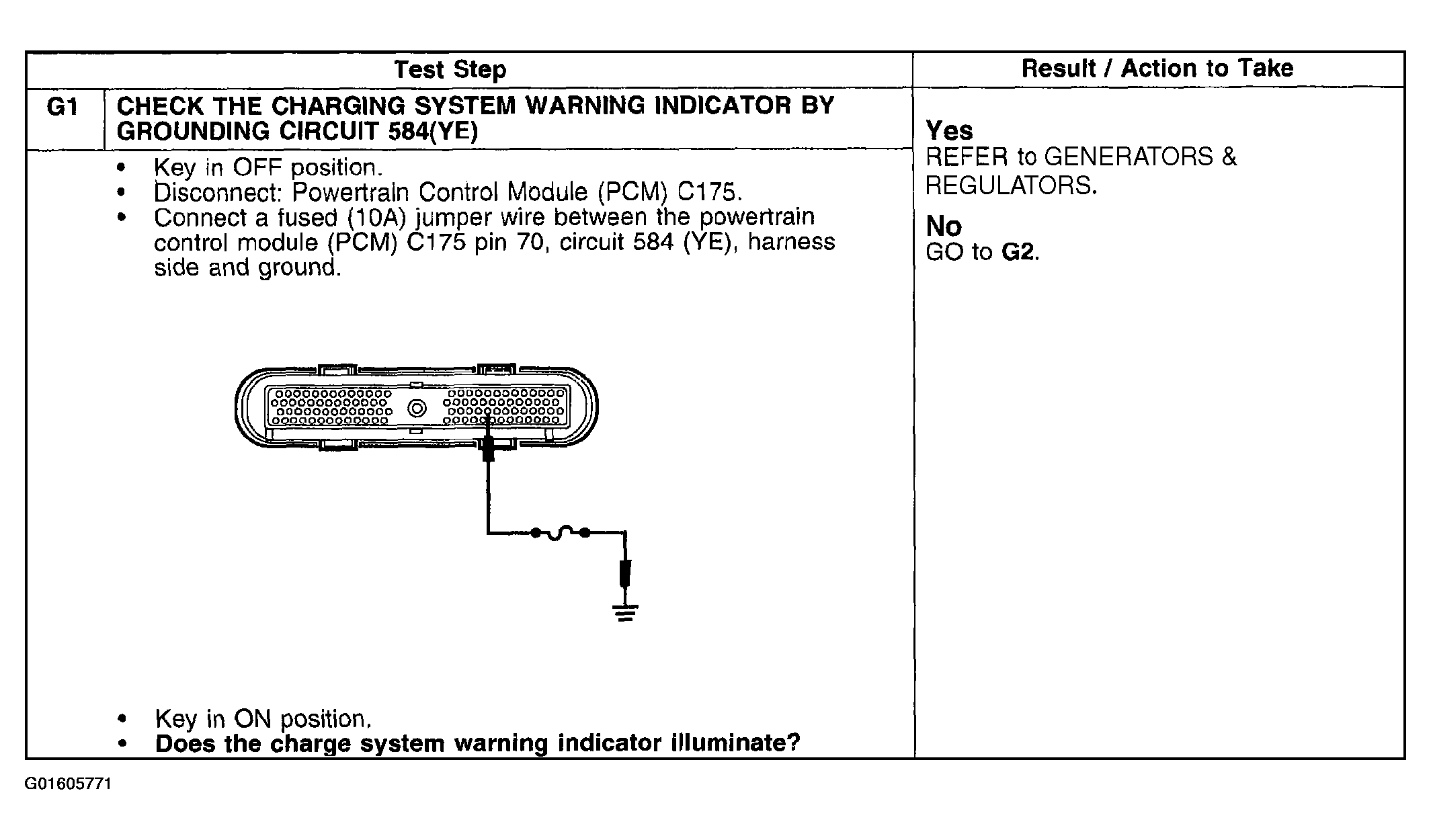

Fig 1: Pinpoint Test G: Charging System Warning Indicator Is Never On (G1)
G01605771Courtesy of FORD MOTOR CO.

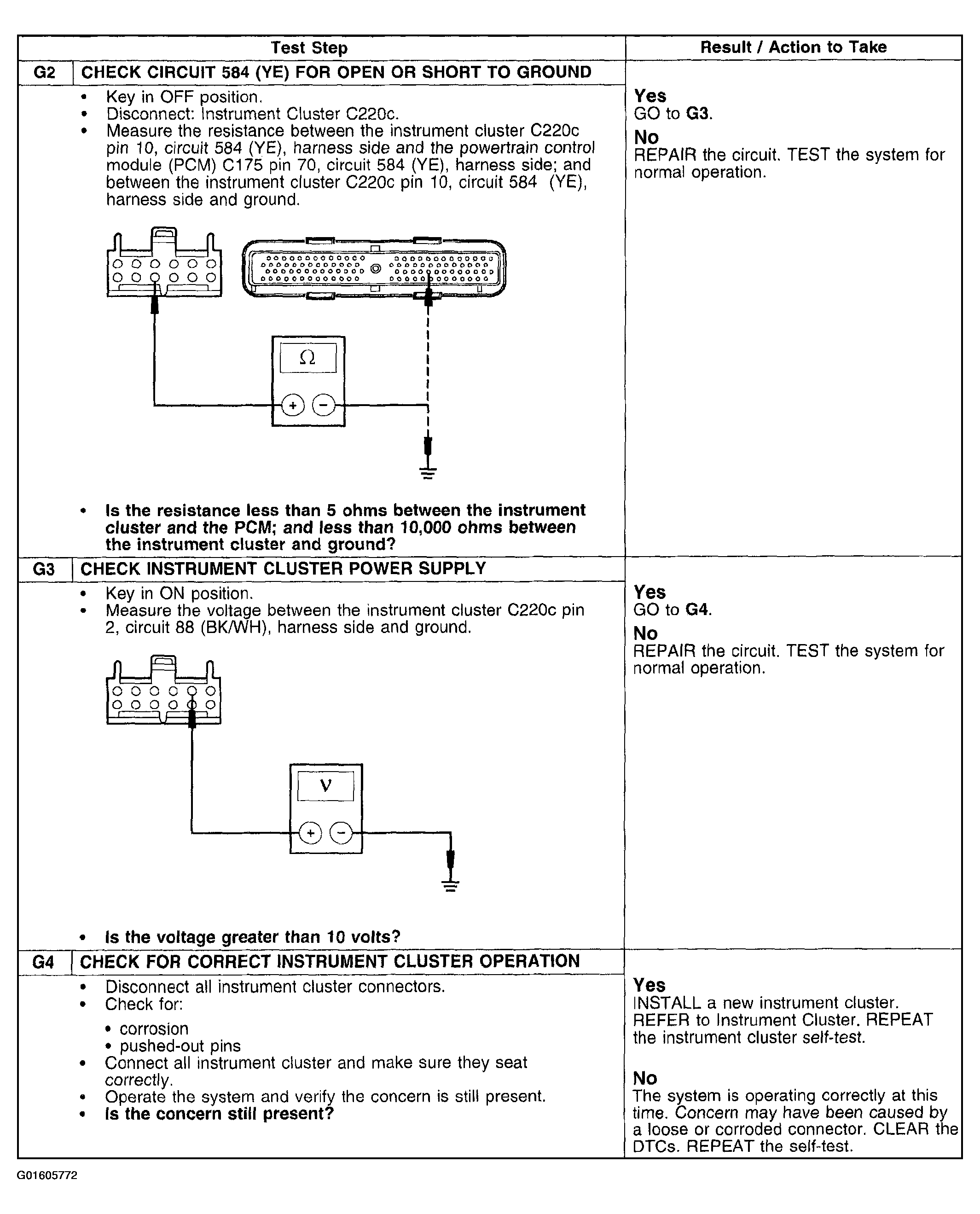

Fig 2: Pinpoint Test G: Charging System Warning Indicator Is Never On (G2-G4)
G01605772Courtesy of FORD MOTOR CO.
