Pinpoint Test F: Safety Belt Warning Indicator Is Inoperative Chime Is Operative

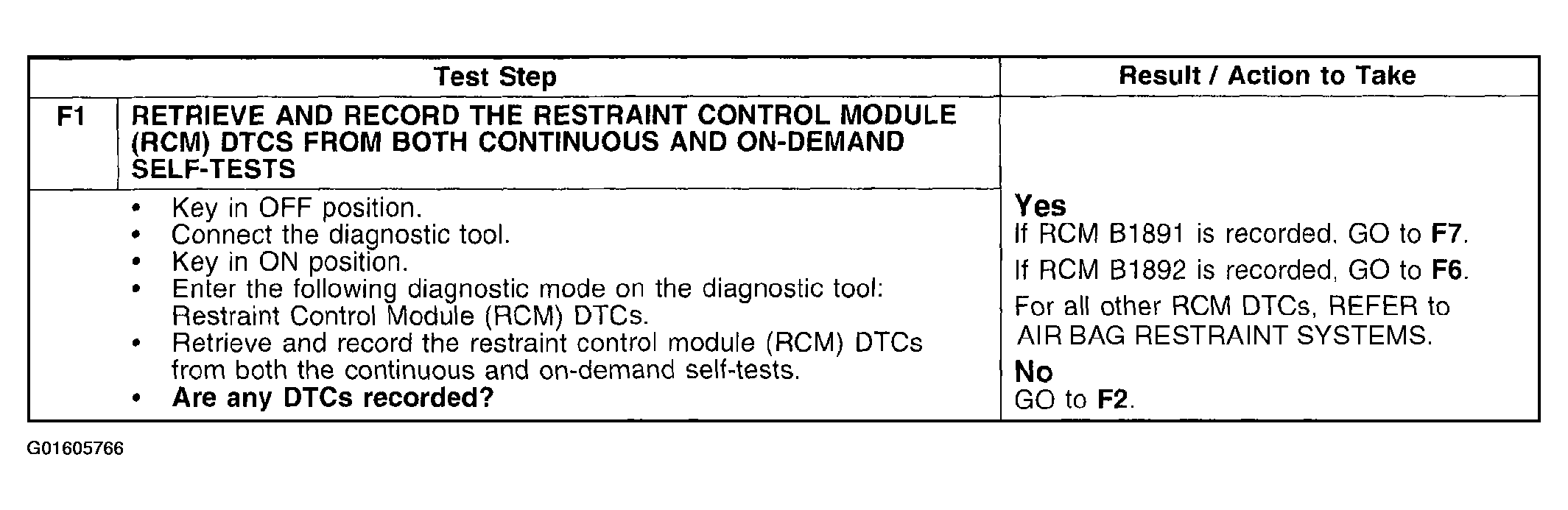

Fig 1: Pinpoint Test F: Safety Belt Warning Indicator Is Inoperative Chime Is Operative (F1)
G01605766Courtesy of FORD MOTOR CO.

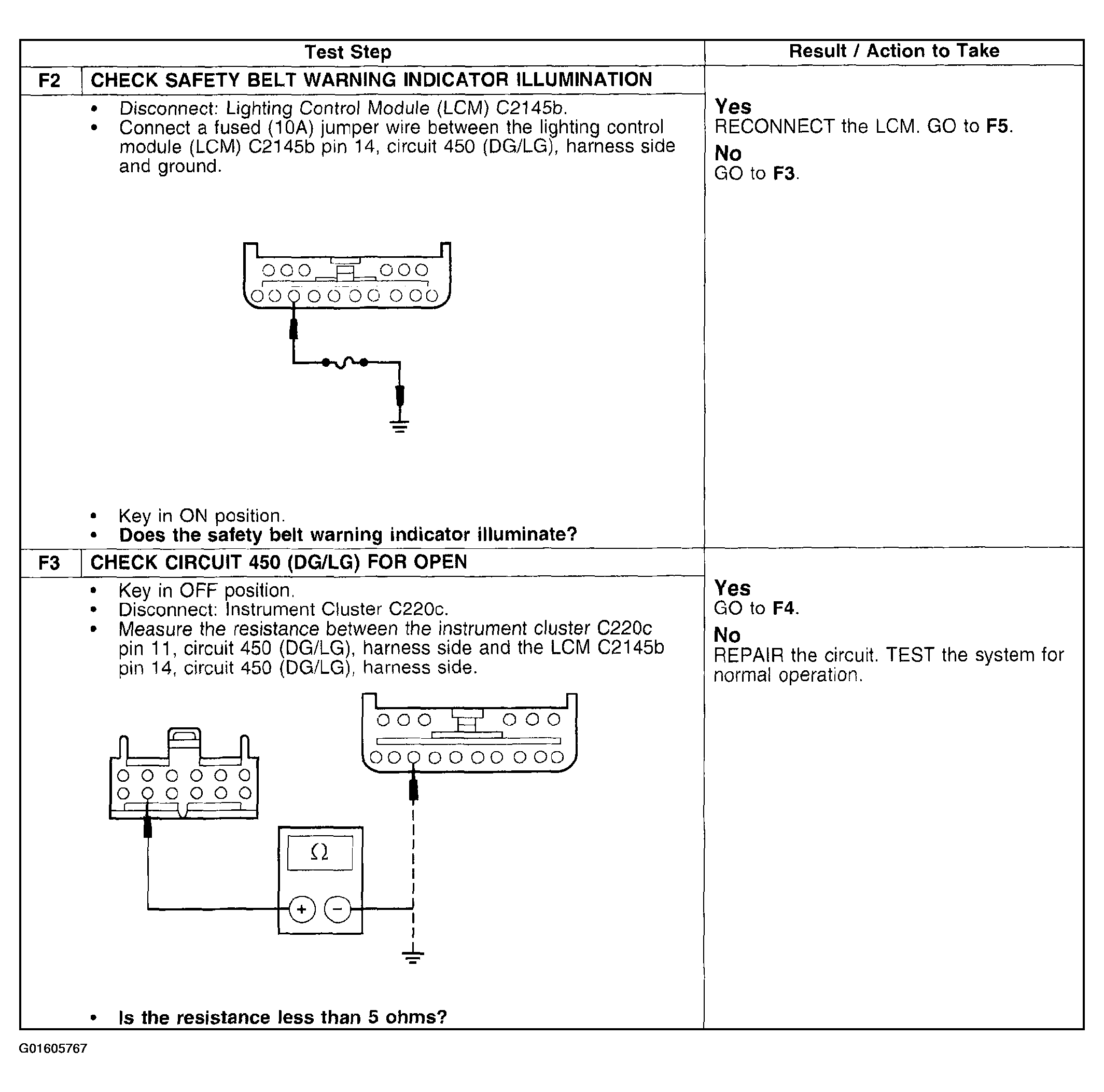

Fig 2: Pinpoint Test F: Safety Belt Warning Indicator Is Inoperative Chime Is Operative (F2-F3)
G01605767Courtesy of FORD MOTOR CO.

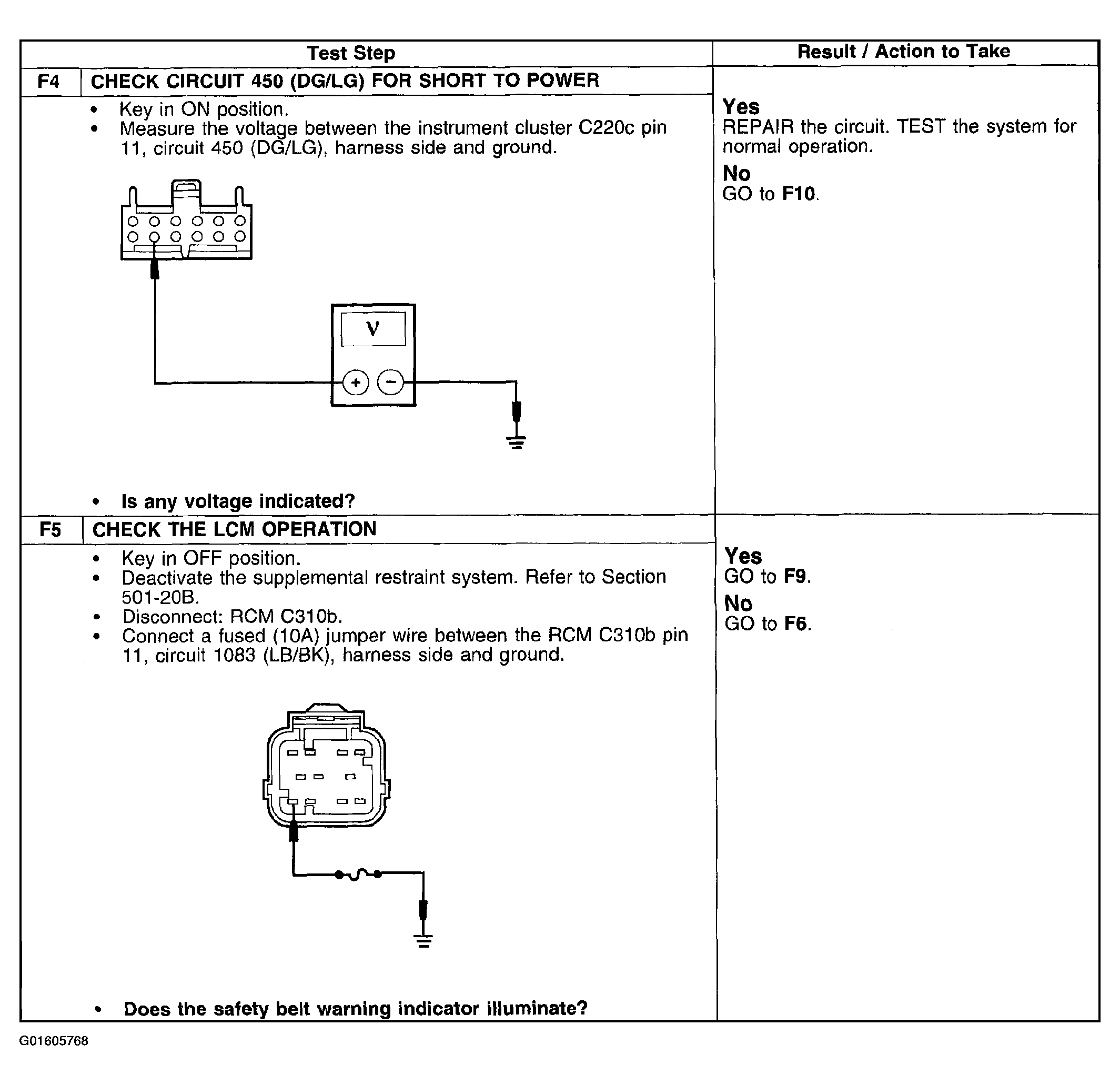

Fig 3: Pinpoint Test F: Safety Belt Warning Indicator Is Inoperative Chime Is Operative (F4-F5)
G01605768Courtesy of FORD MOTOR CO.

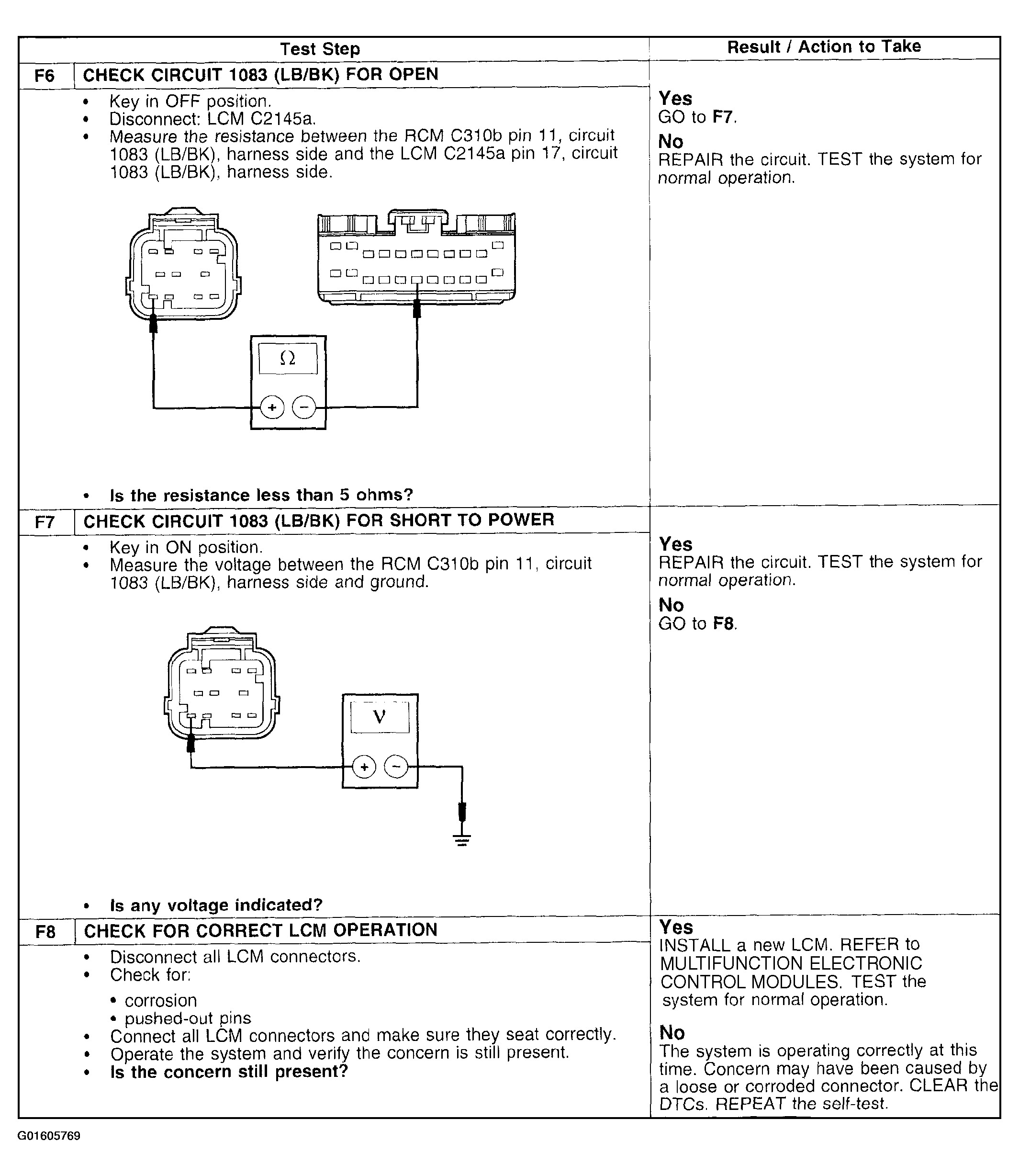

Fig 4: Pinpoint Test F: Safety Belt Warning Indicator Is Inoperative Chime Is Operative (F6-F8)
G01605769Courtesy of FORD MOTOR CO.

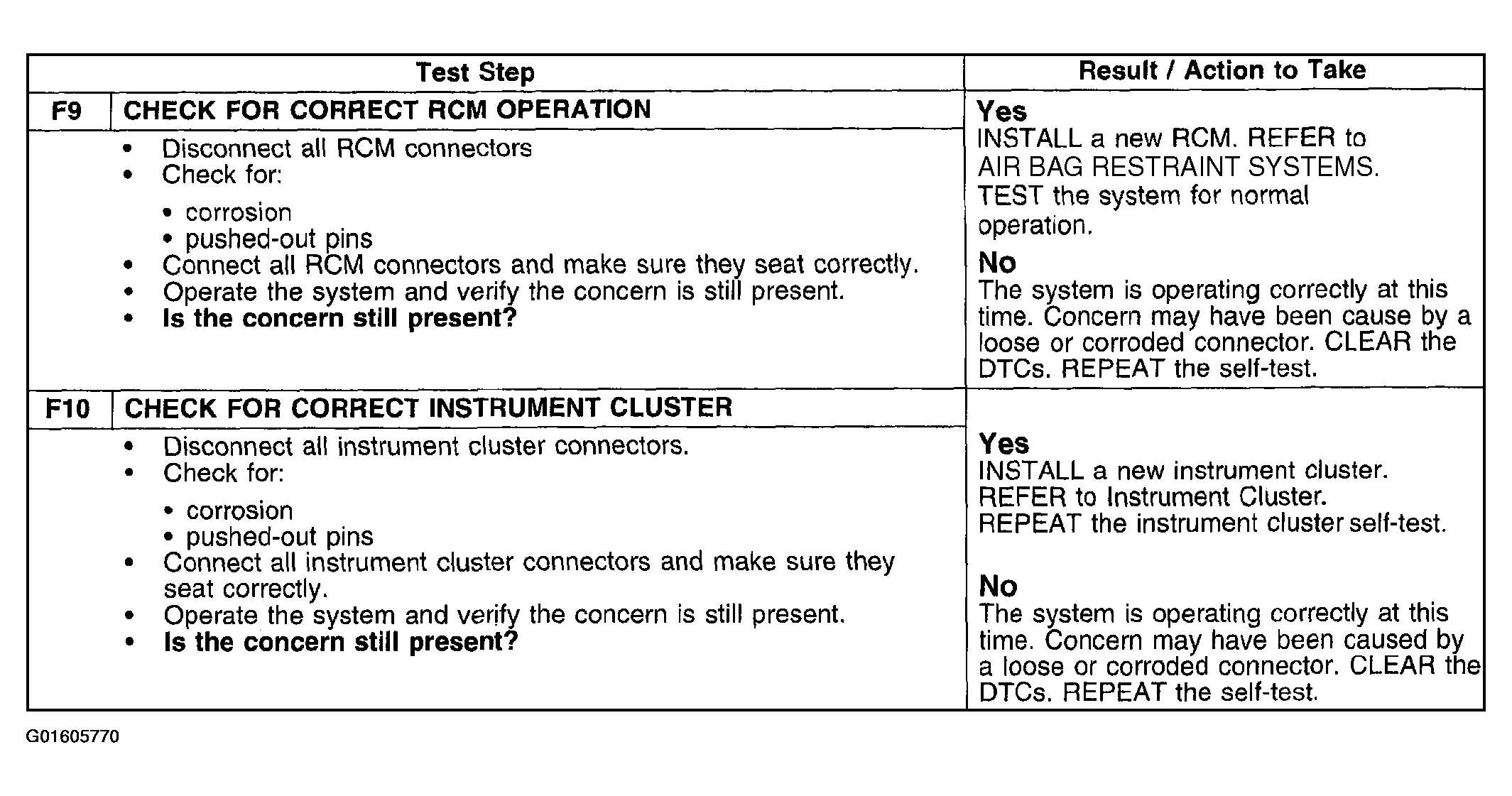

Fig 5: Pinpoint Test F: Safety Belt Warning Indicator Is Inoperative Chime Is Operative (F9-F10)
G01605770Courtesy of FORD MOTOR CO.
