Pinpoint Test E: Speedometer/Odometer Is Inoperative

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

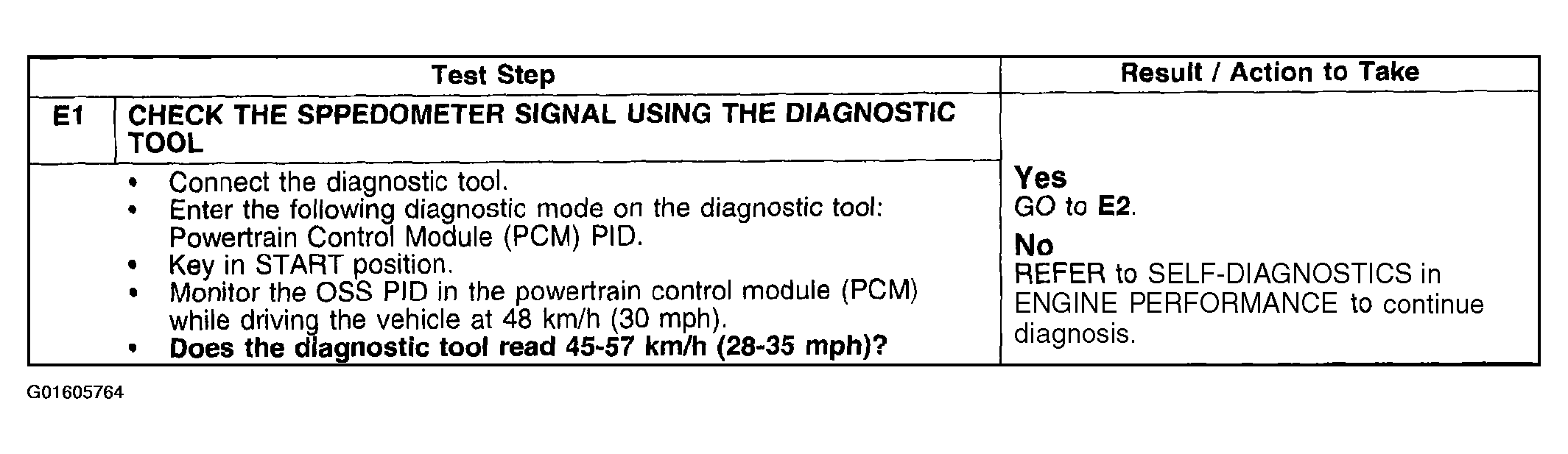

Fig 1: Pinpoint Test E: Speedometer/Odometer Is Inoperative (E1)
G01605764Courtesy of FORD MOTOR CO.

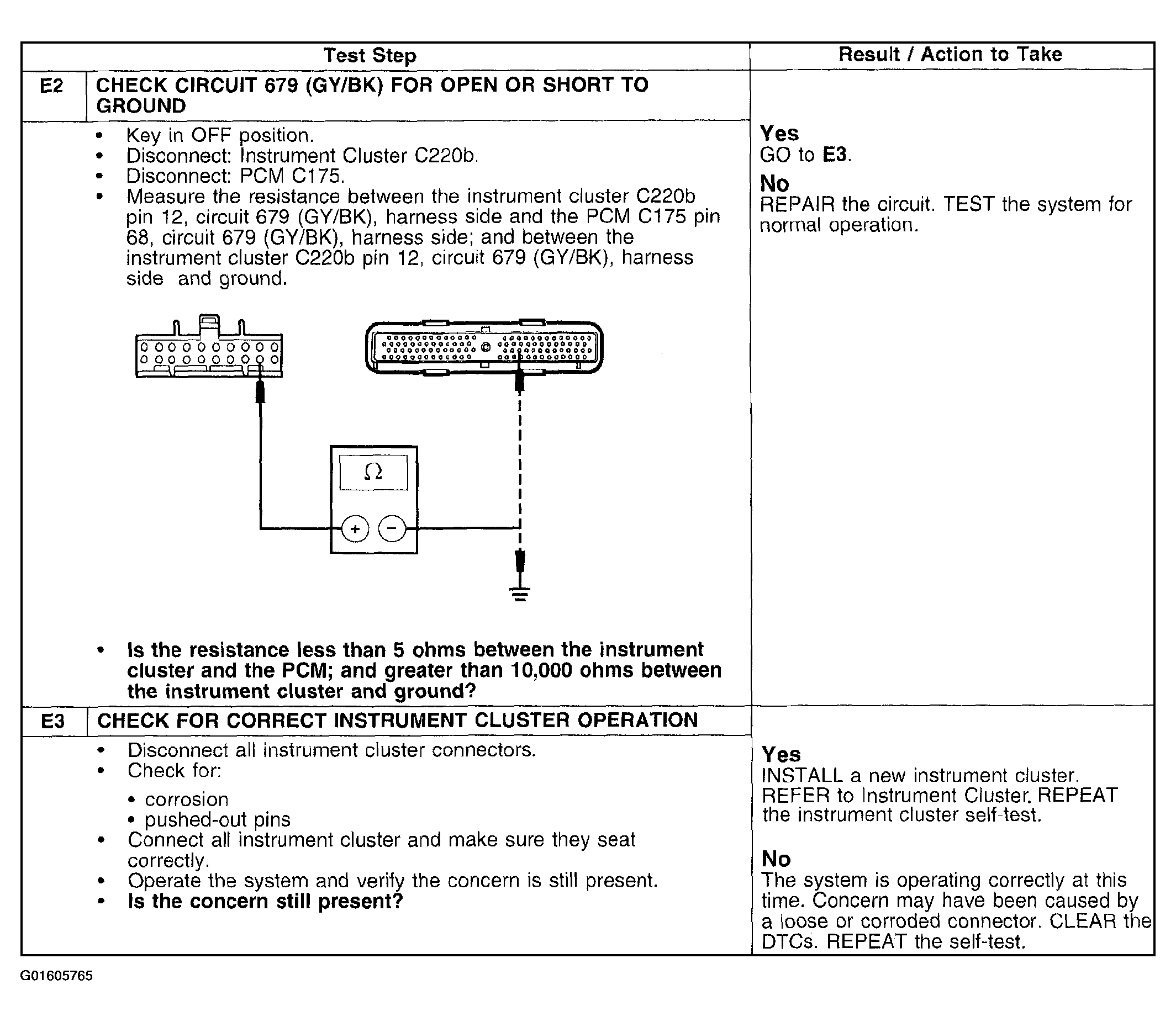

Fig 2: Pinpoint Test E: Speedometer/Odometer Is Inoperative (E2-E3)
G01605765Courtesy of FORD MOTOR CO.
