Home >> Mercury >> 2003 >> Marauder >> Repair and Diagnosis >> Electrical >> Gauges >> Instrument Cluster System -Electronic >> Diagnosis And Testing >> Instrument Cluster >> Pinpoint Test D: Low Fuel Warning Indicator Is Never/Always On

Pinpoint Test D: Low Fuel Warning Indicator Is Never/Always On

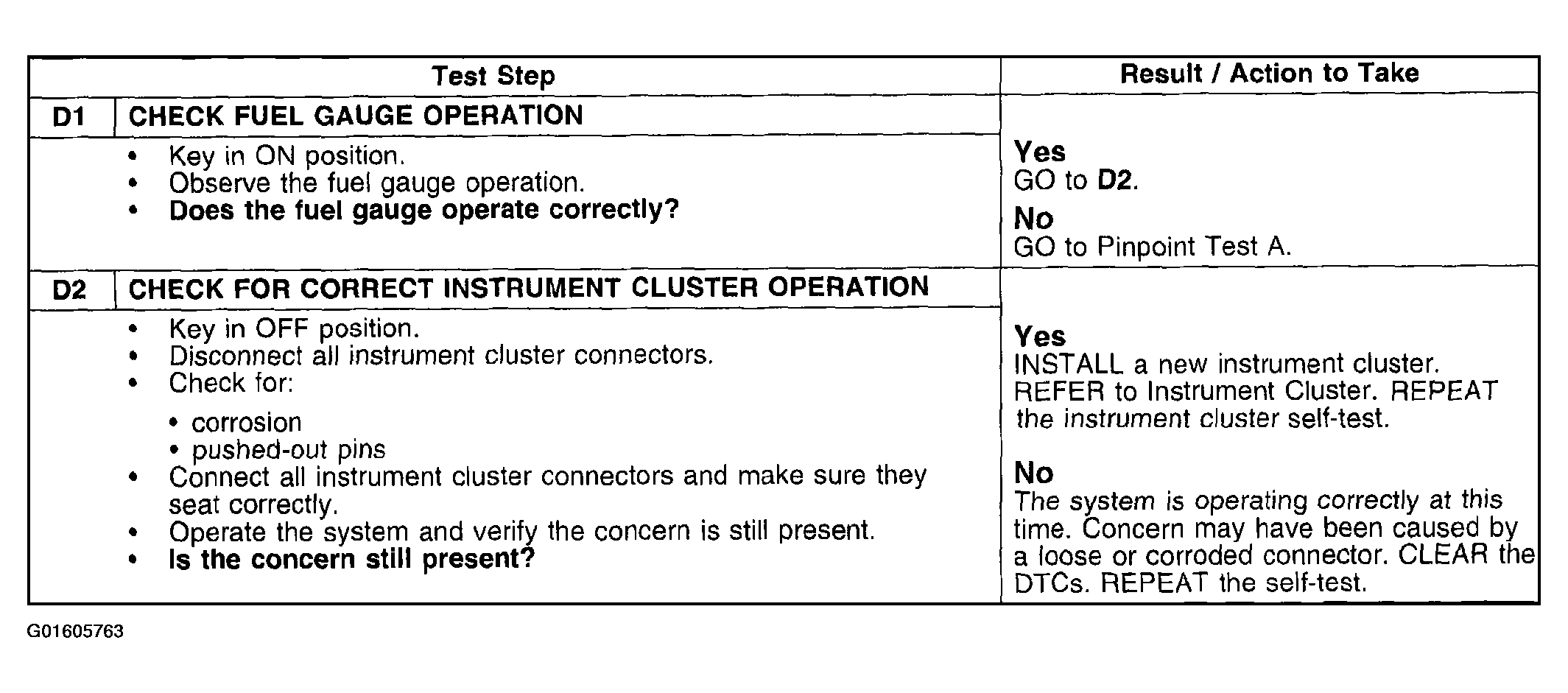

Fig 1: Pinpoint Test D: Low Fuel Warning Indicator Is Never/Always On

G01605763

Courtesy of FORD MOTOR CO.
