Pinpoint Test C: Incorrect Oil Pressure Gauge Indication

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

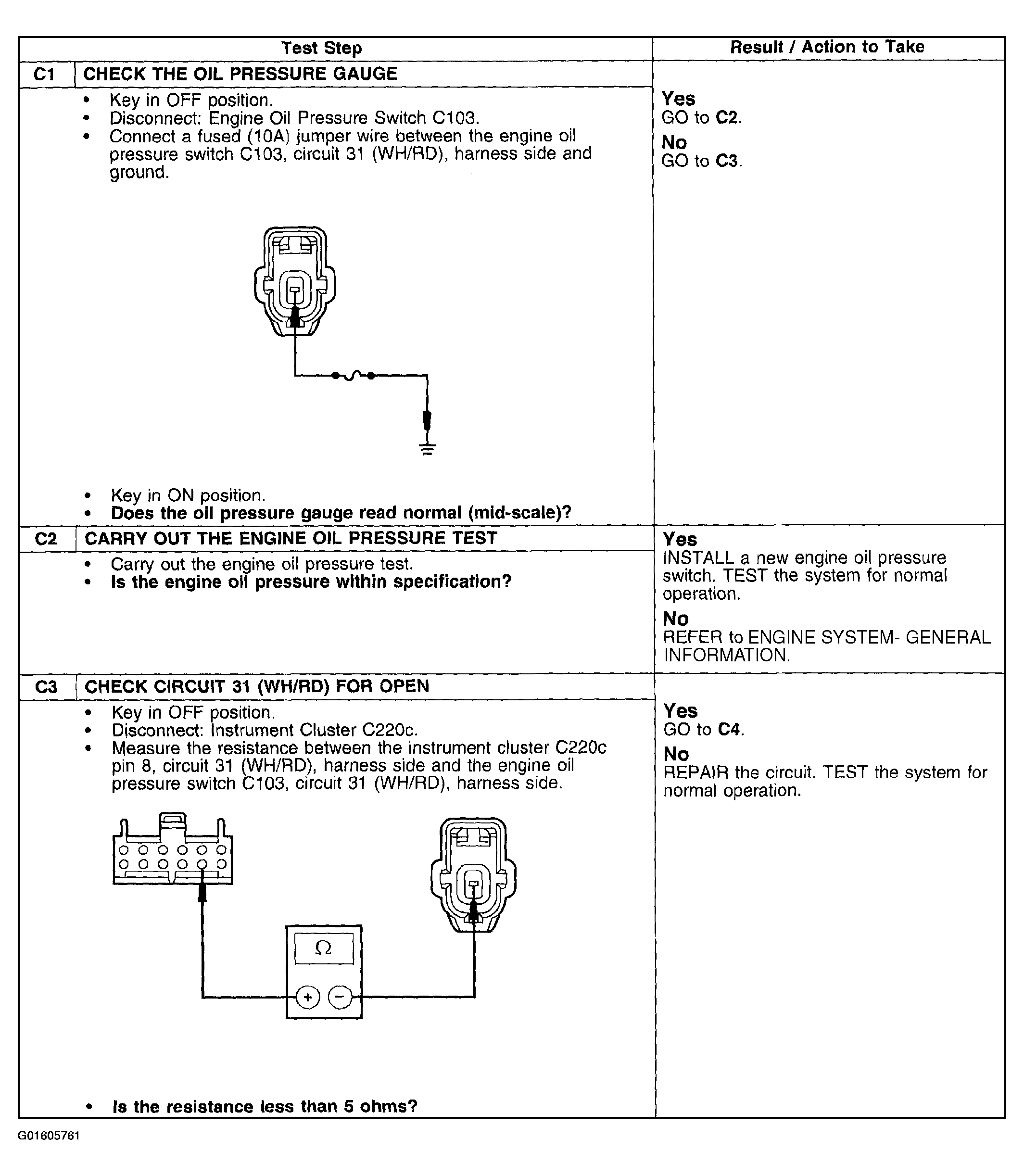

Fig 1: Pinpoint Test C: Incorrect Oil Pressure Gauge Indication (C1-C3)
G01605761Courtesy of FORD MOTOR CO.

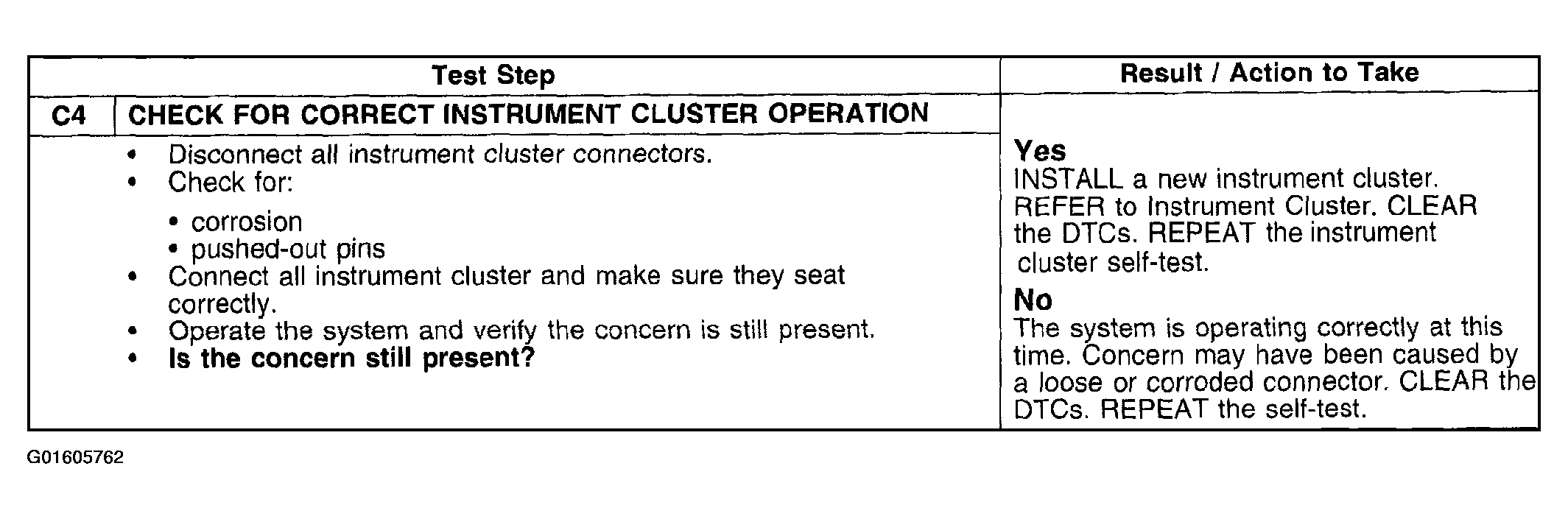

Fig 2: Pinpoint Test C: Incorrect Oil Pressure Gauge Indication (C4)
G01605762Courtesy of FORD MOTOR CO.
