Pinpoint Test B: Incorrect Temperature Gauge Indication

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

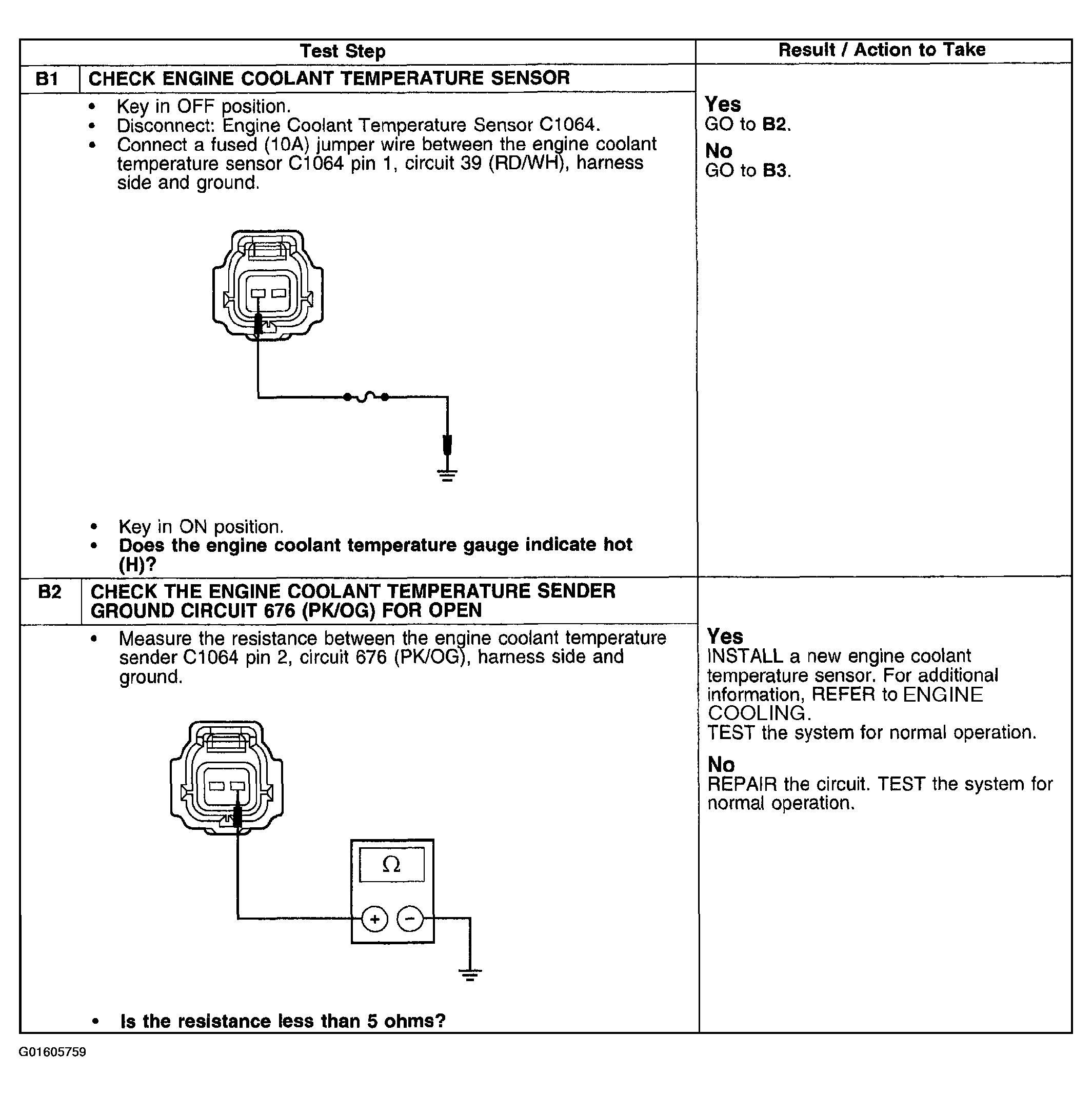

Fig 1: Pinpoint Test B: Incorrect Temperature Gauge Indication (B1-B2)
G01605759Courtesy of FORD MOTOR CO.

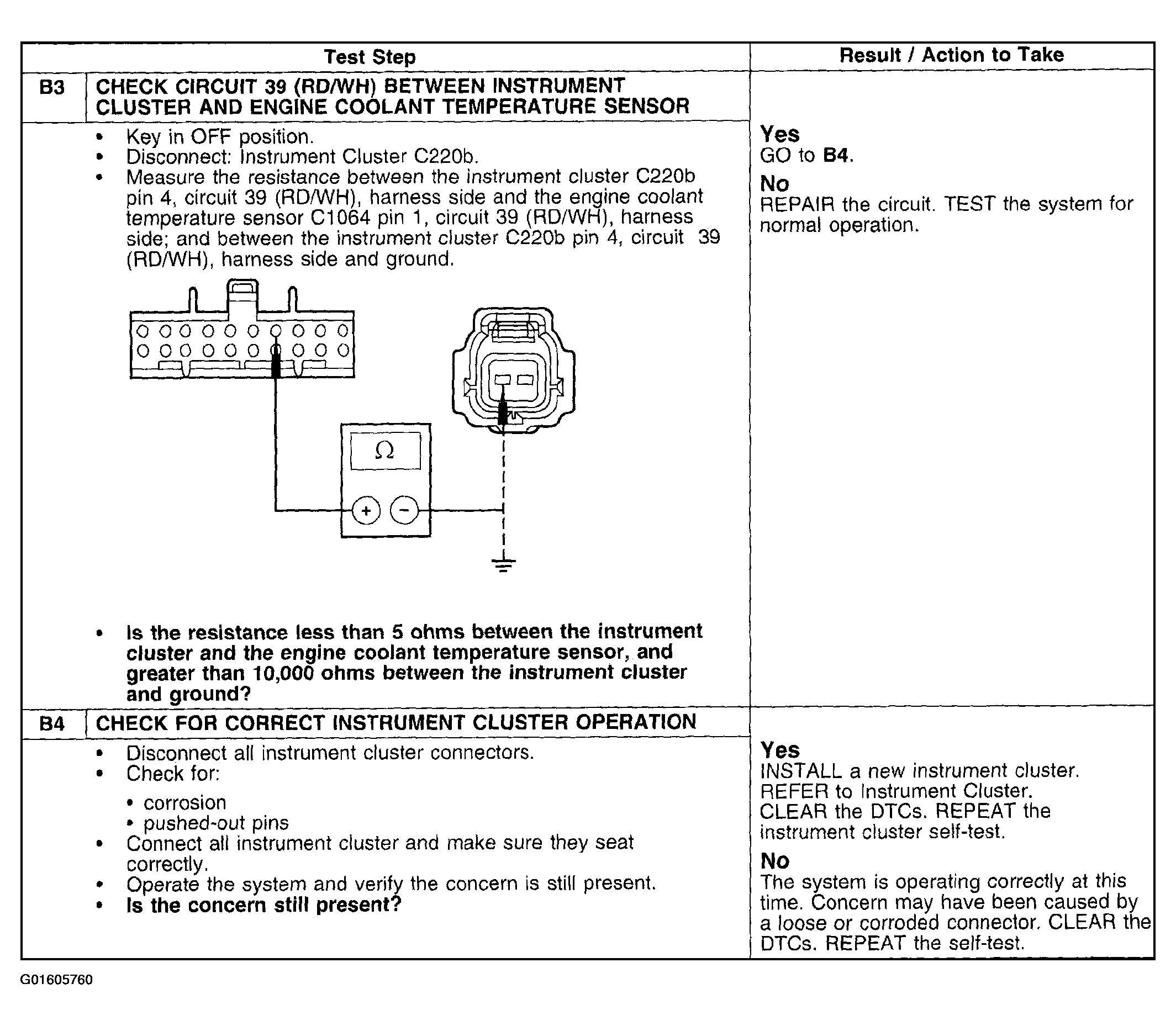

Fig 2: Pinpoint Test B: Incorrect Temperature Gauge Indication (B3-B4)
G01605760Courtesy of FORD MOTOR CO.
