Pinpoint Test A: Incorrect Fuel Gauge Indication

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

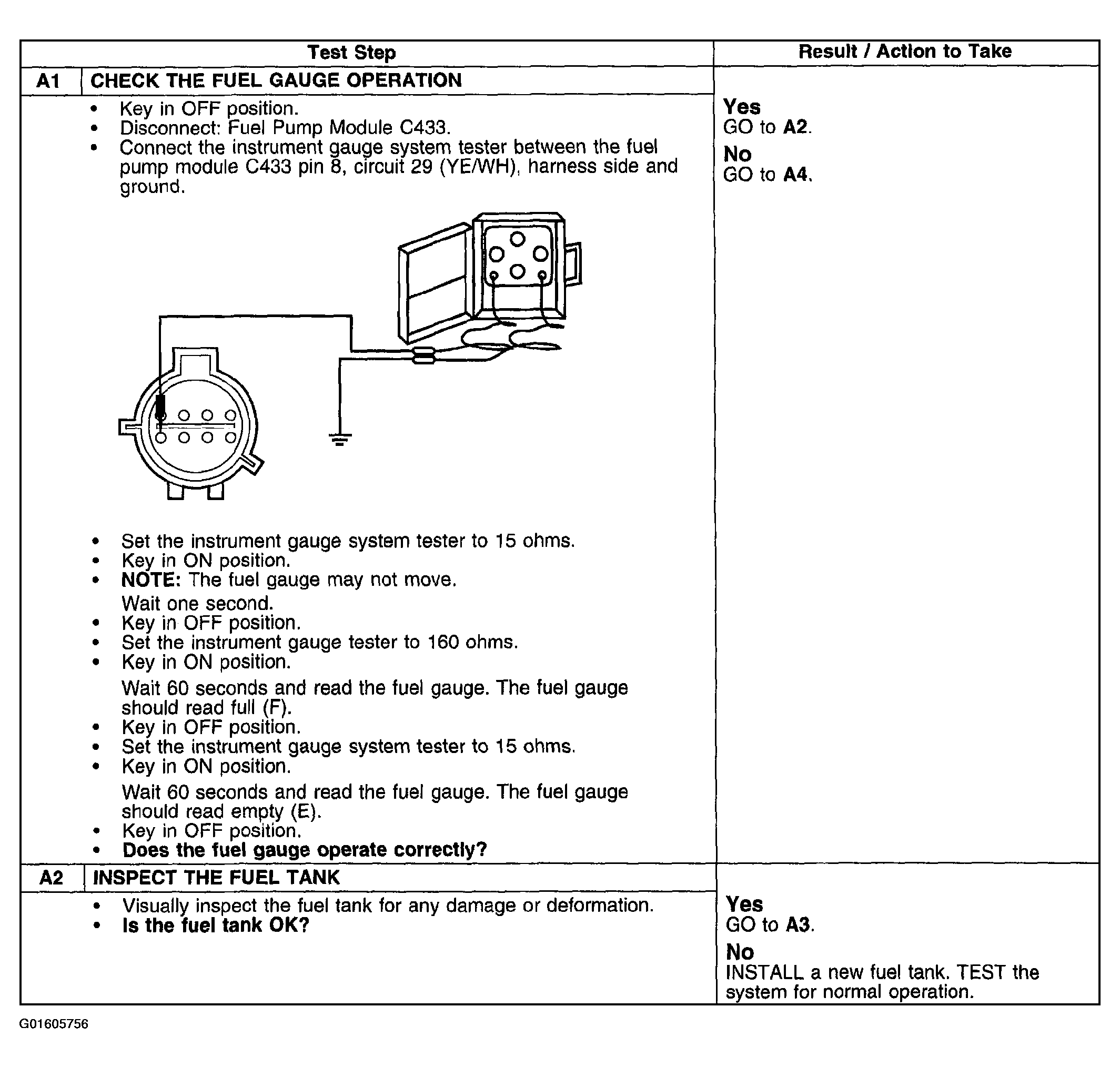

Fig 1: Pinpoint Test A: Incorrect Fuel Gauge Indication (A1-A2)
G01605756Courtesy of FORD MOTOR CO.

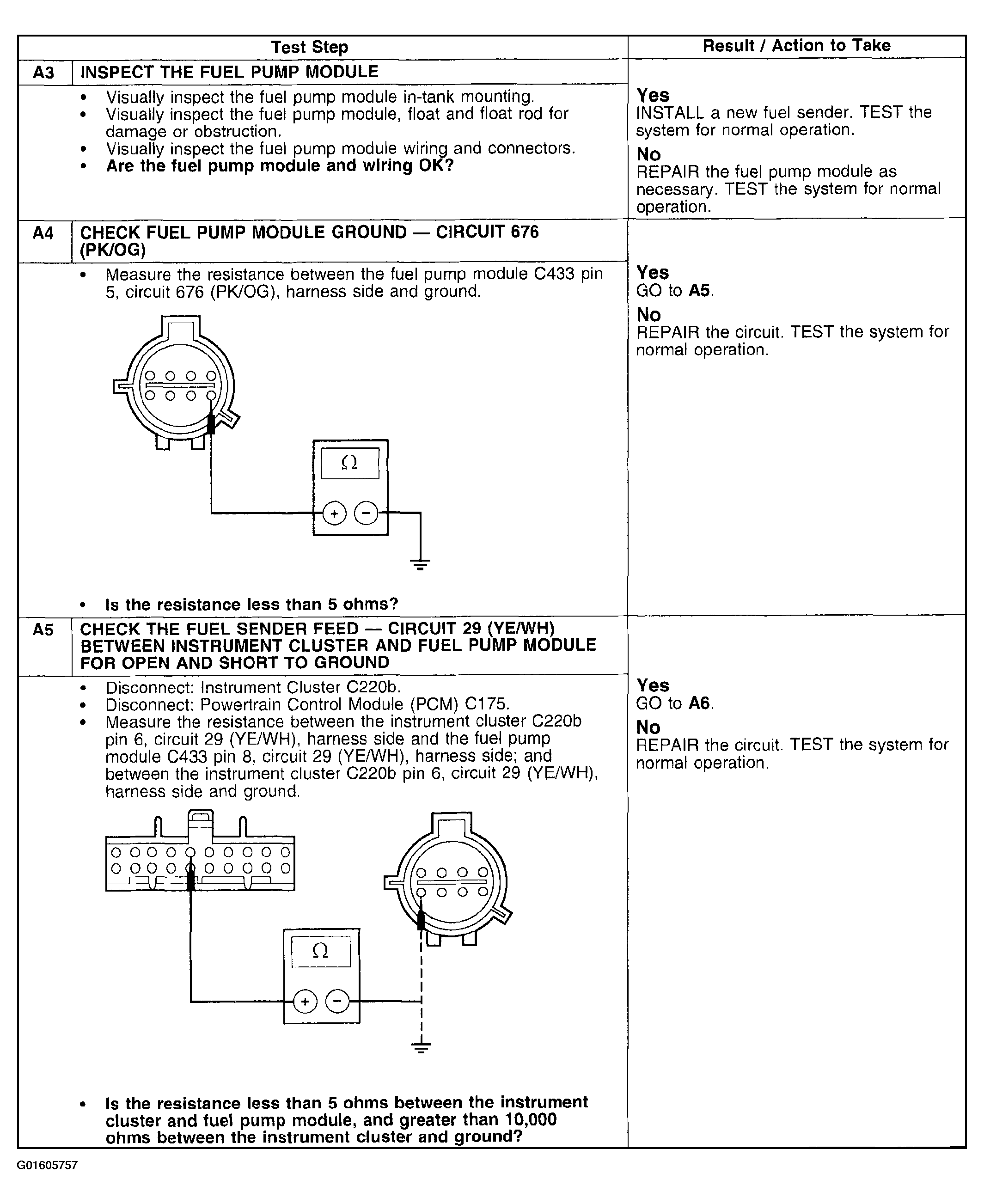

Fig 2: Pinpoint Test A: Incorrect Fuel Gauge Indication (A3-A5)
G01605757Courtesy of FORD MOTOR CO.

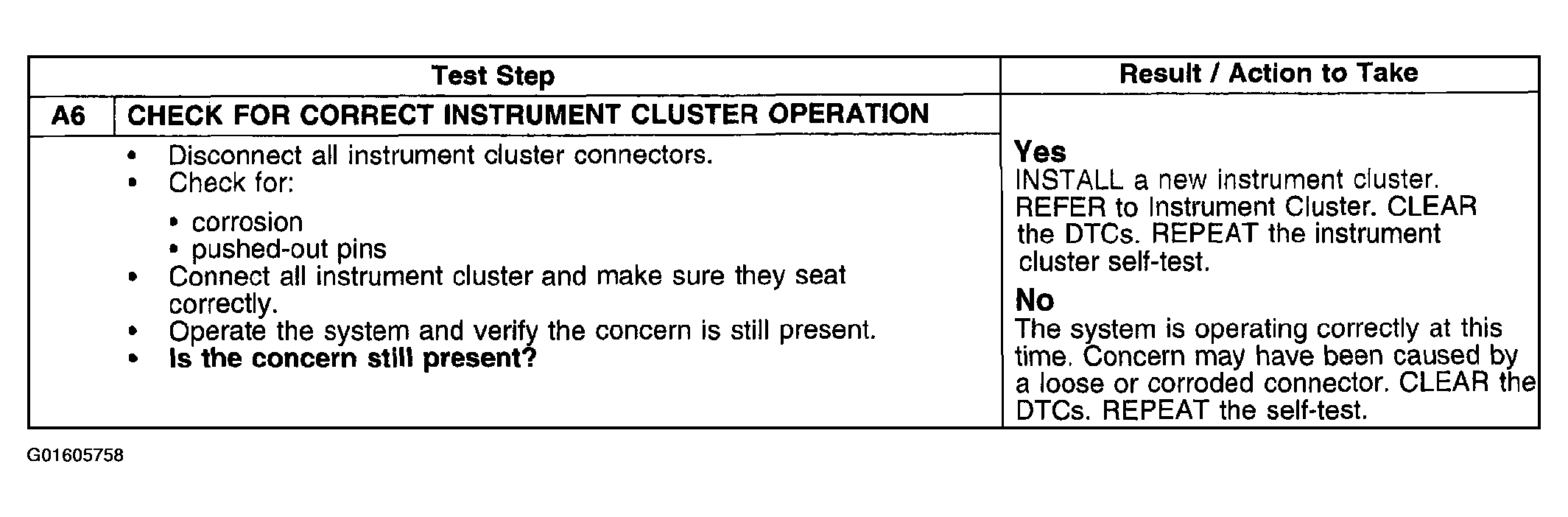

Fig 3: Pinpoint Test A: Incorrect Fuel Gauge Indication (A6)
G01605758Courtesy of FORD MOTOR CO.
