Pinpoint Test J: DTC B1228 - Fuel Tank Temperature Sensor No. 2 Circuit Short To Battery

CAUTION: Use correct probe adapter(s) when making measurements. Failure to use correct probe adapter(s) may damage the connector.

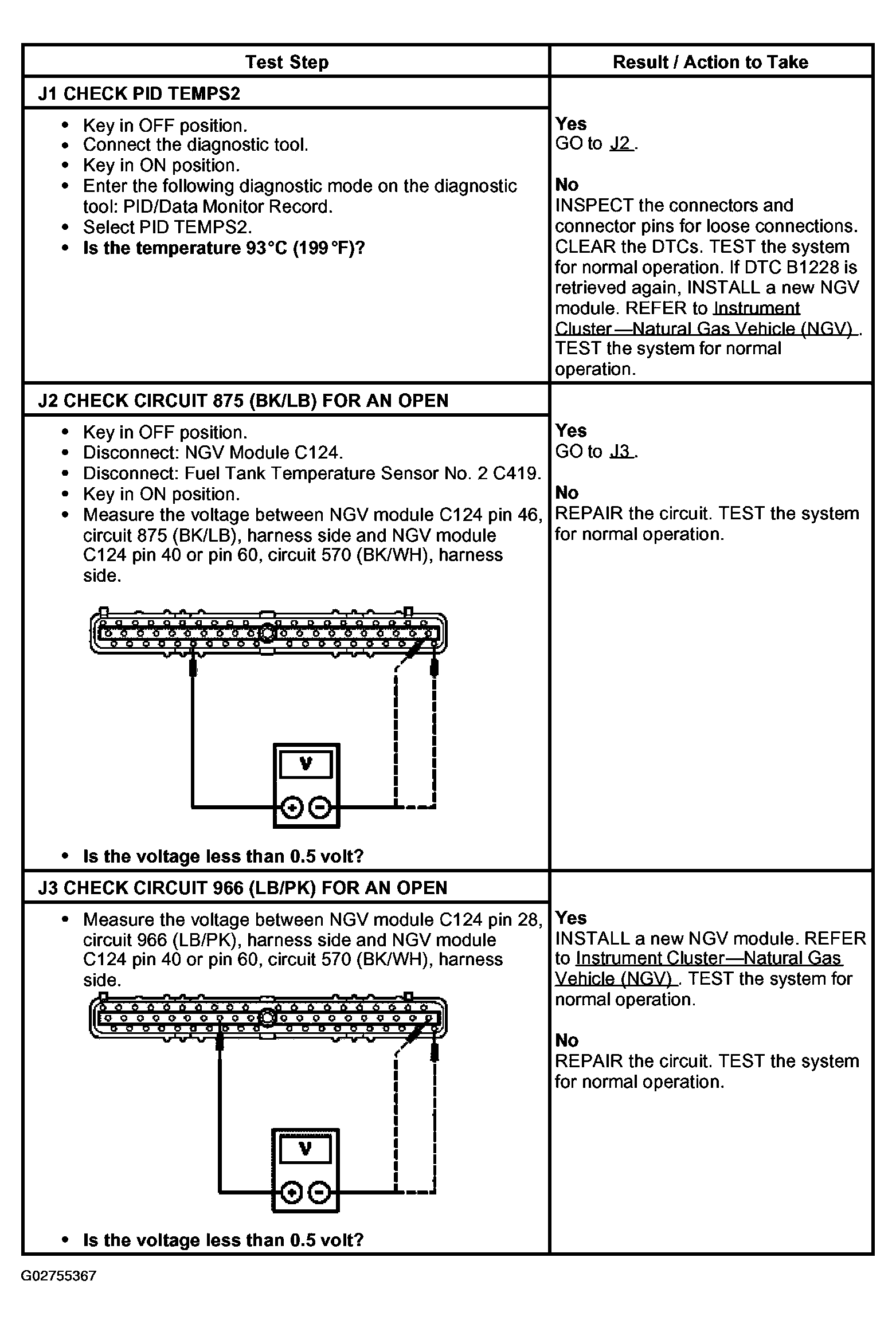

Fig 1: Pinpoint Test J: DTC B1228 - Fuel Tank Temperature Sensor No. 2 Circuit Short To Battery Step (J1-J3)

Courtesy of FORD MOTOR CO.
