Pinpoint Test H: DTC B1226 - Fuel Tank Temperature Sensor No. 2 Circuit Failure

CAUTION: Use correct probe adapter(s) when making measurements. Failure to use correct probe adapter(s) may damage the connector.

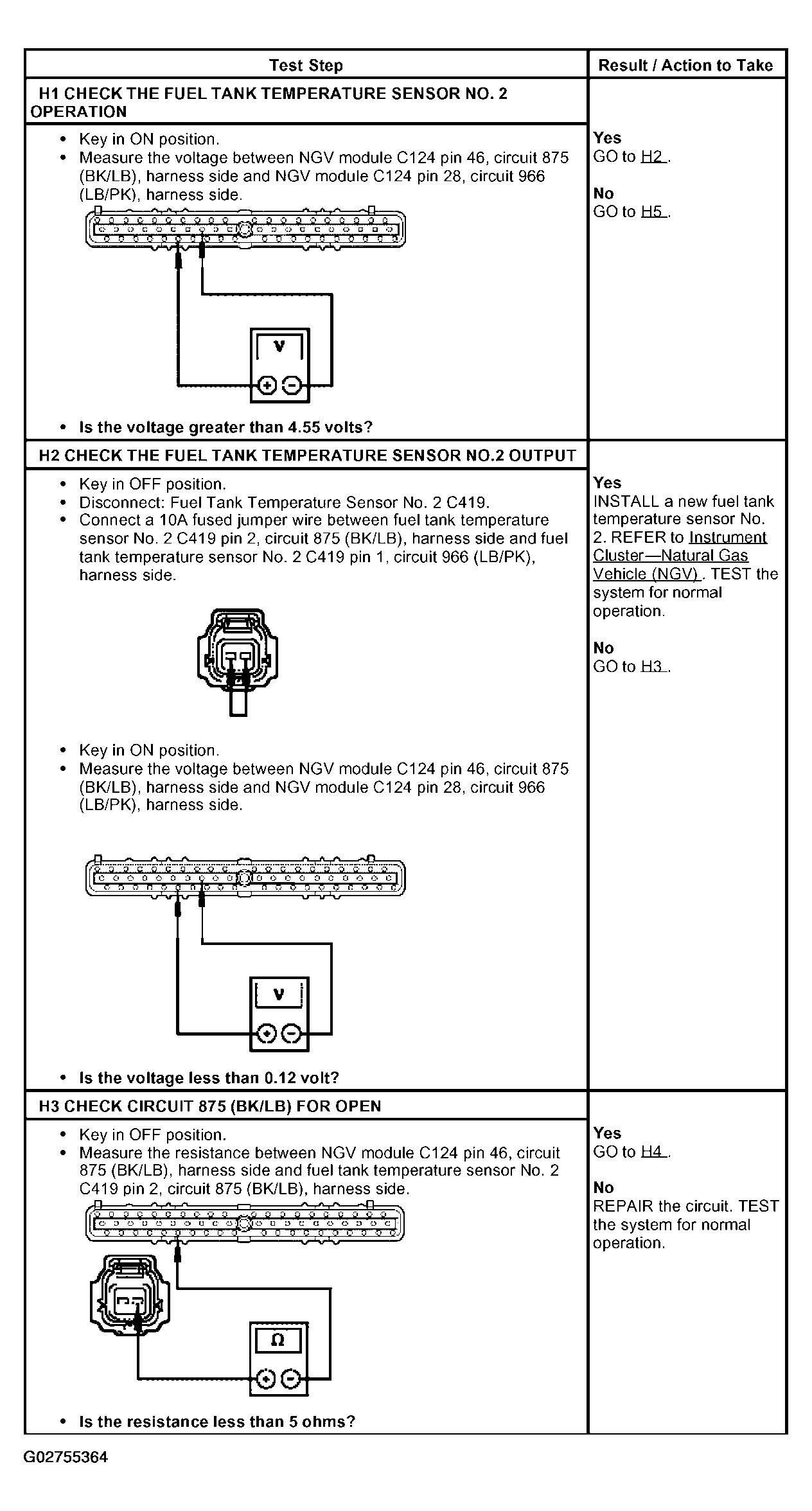

Fig 1: Pinpoint Test H: DTC B1226 - Fuel Tank Temperature Sensor No. 2 Circuit Failure Step (H1-H3)

Courtesy of FORD MOTOR CO.

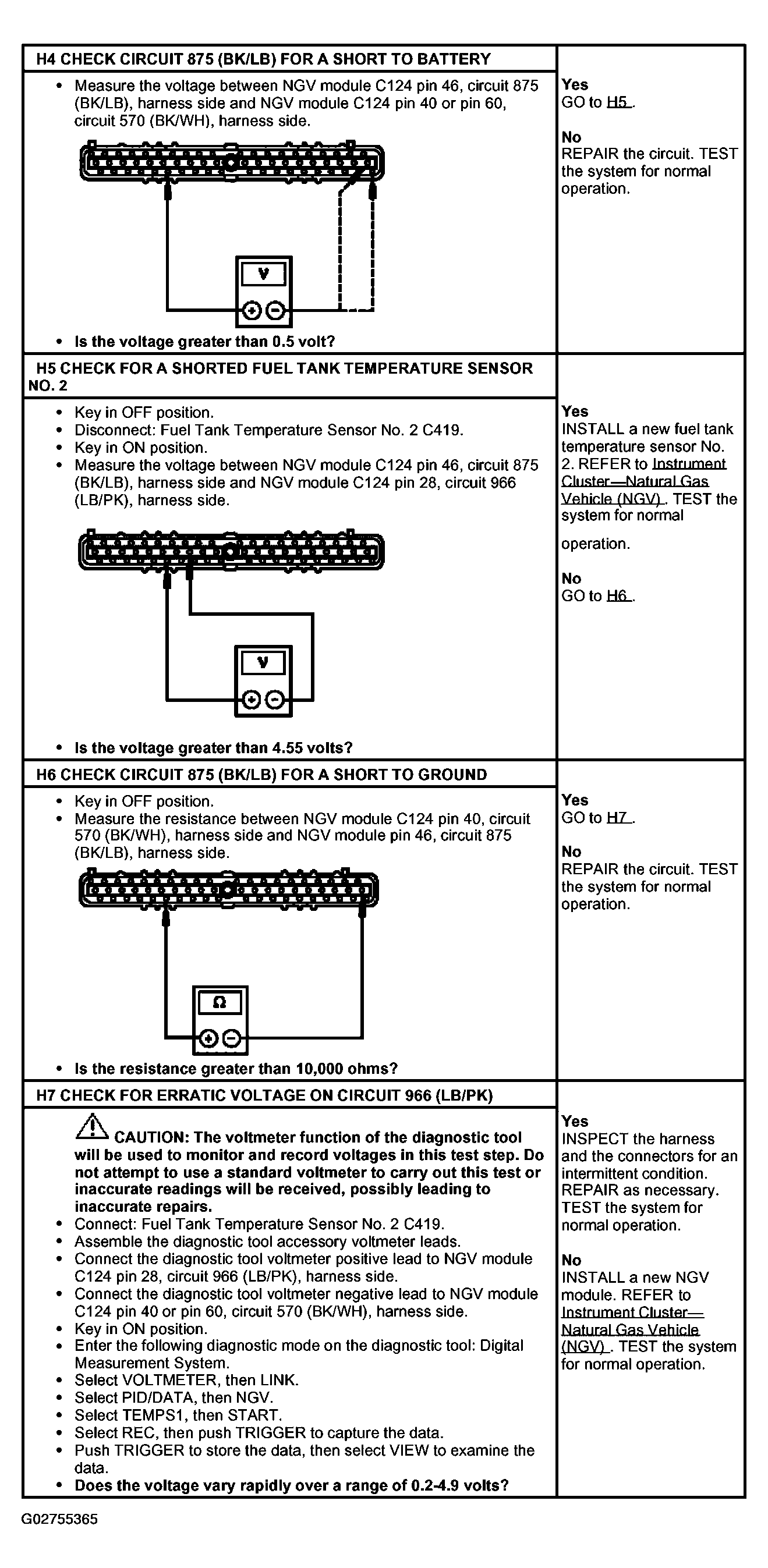

Fig 2: Pinpoint Test H: DTC B1226 - Fuel Tank Temperature Sensor No. 2 Circuit Failure Step (H4-H7)

Courtesy of FORD MOTOR CO.
