Pinpoint Test D: DTC B1222 - Fuel Tank Temperature Sensor No. 1 Circuit Failure

CAUTION: Use correct probe adapter(s) when making measurements. Failure to use correct probe adapter(s) may damage the connector.

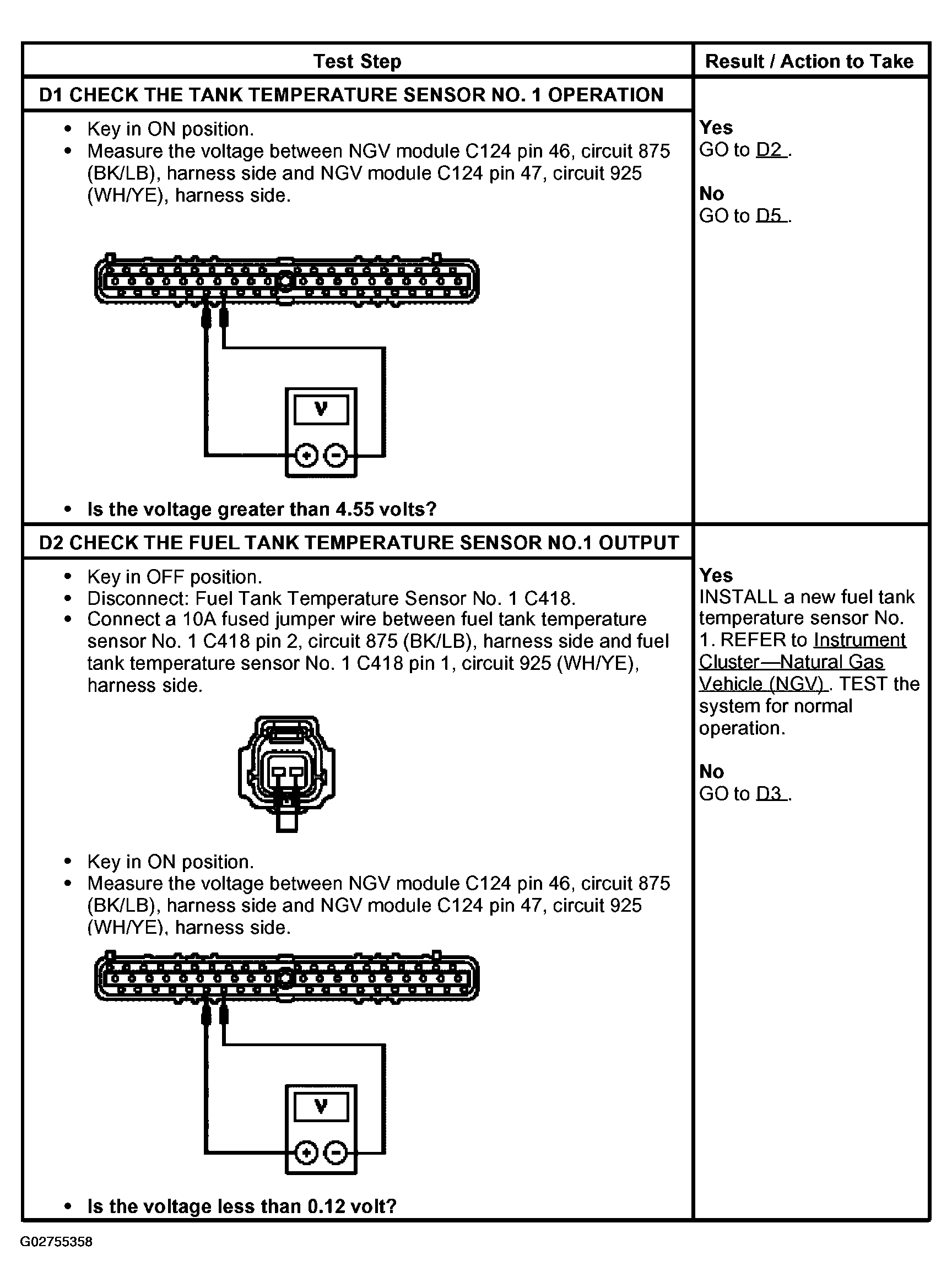

Fig 1: Pinpoint Test D: DTC B1222 - Fuel Tank Temperature Sensor No. 1 Circuit Failure Step (D1-D2)

Courtesy of FORD MOTOR CO.

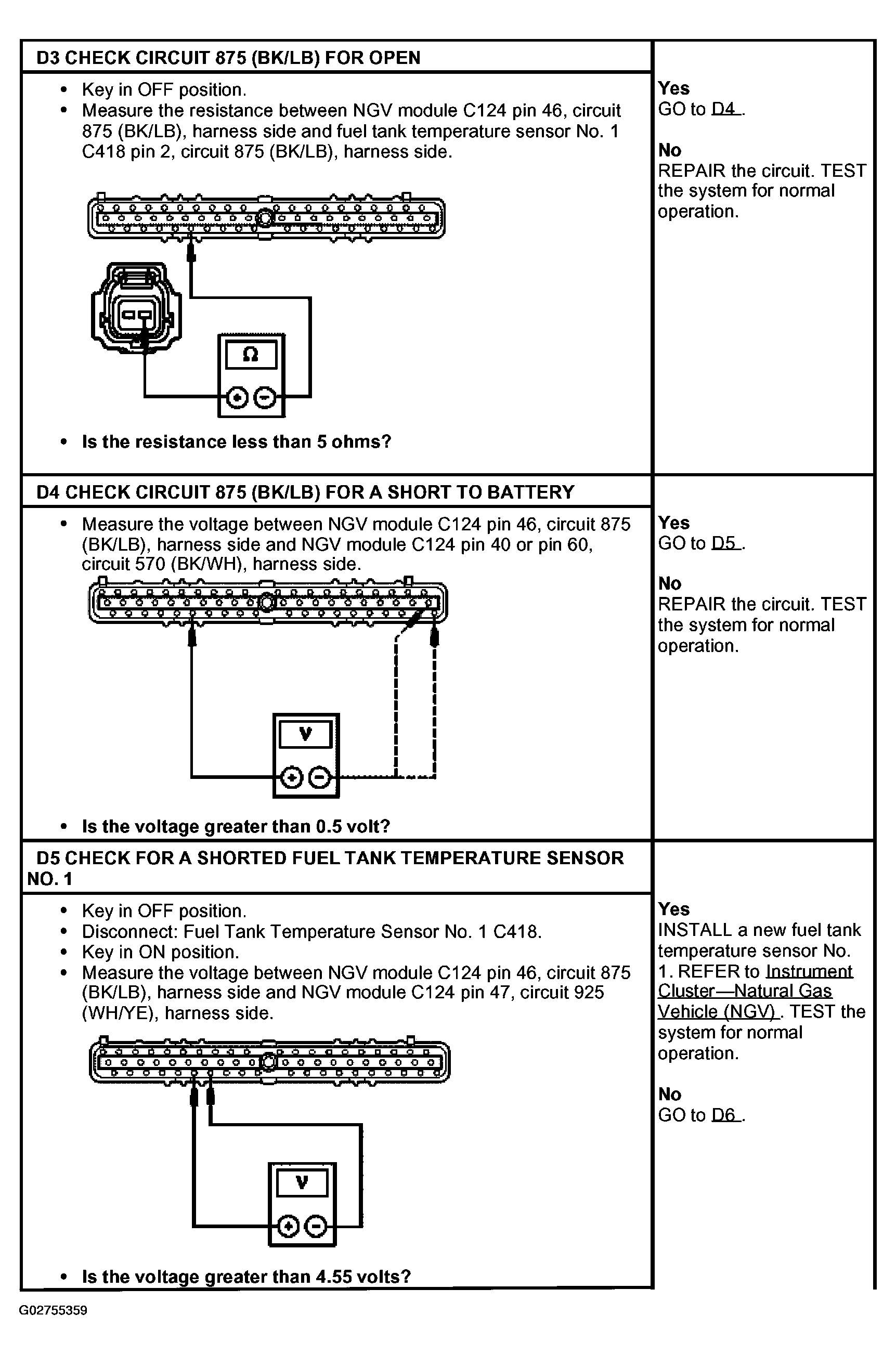

Fig 2: Pinpoint Test D: DTC B1222 - Fuel Tank Temperature Sensor No. 1 Circuit Failure Step (D3-D5)

Courtesy of FORD MOTOR CO.

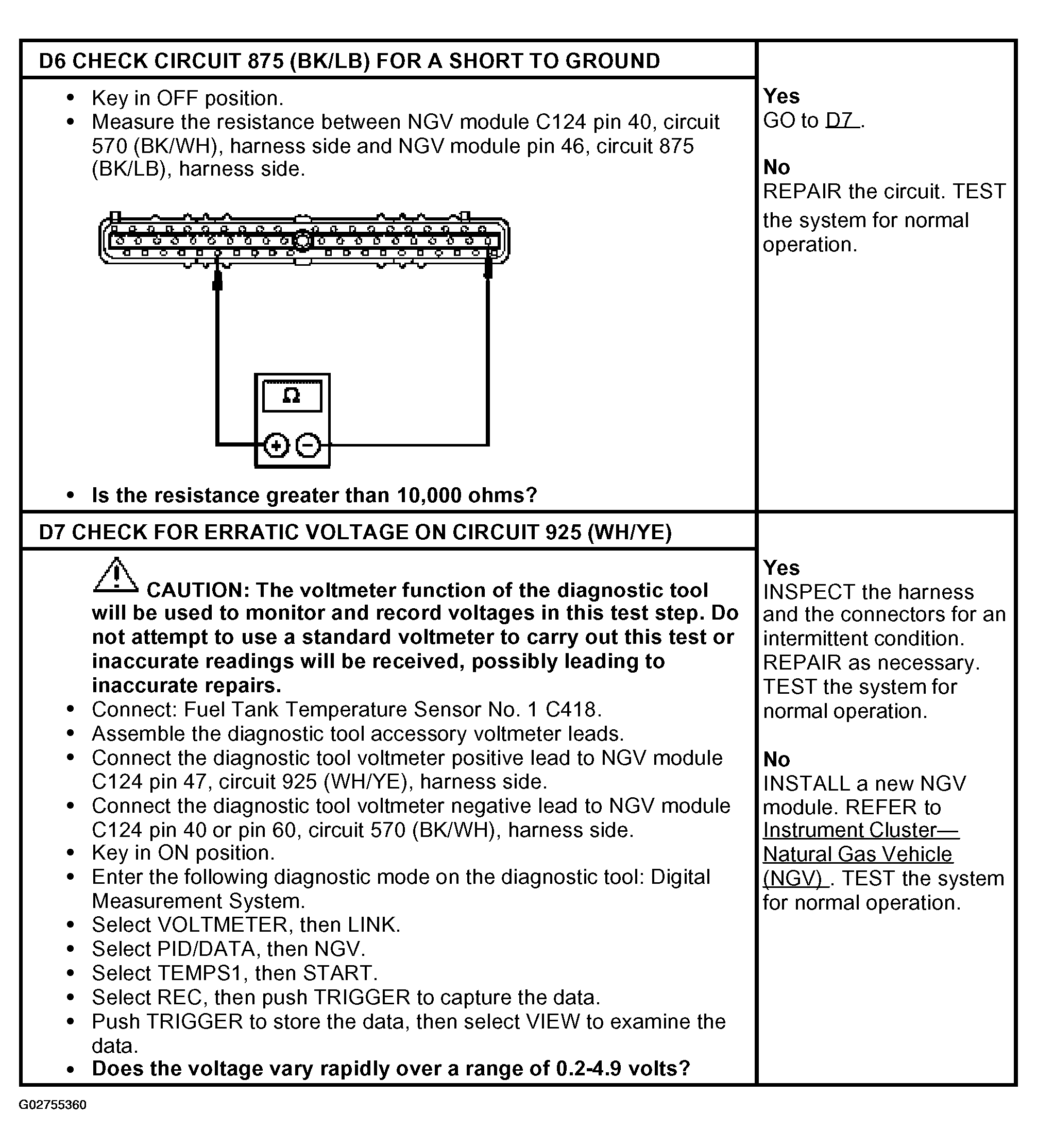

Fig 3: Pinpoint Test D: DTC B1222 - Fuel Tank Temperature Sensor No. 1 Circuit Failure Step (D6-D7)

Courtesy of FORD MOTOR CO.
