Instrument Cluster Lens

  1. Remove the instrument cluster. Refer to INSTRUMENT CLUSTER .
    2. NOTE: The Crown Victoria and Grand Marquis cluster is shown. The Marauder is similar.

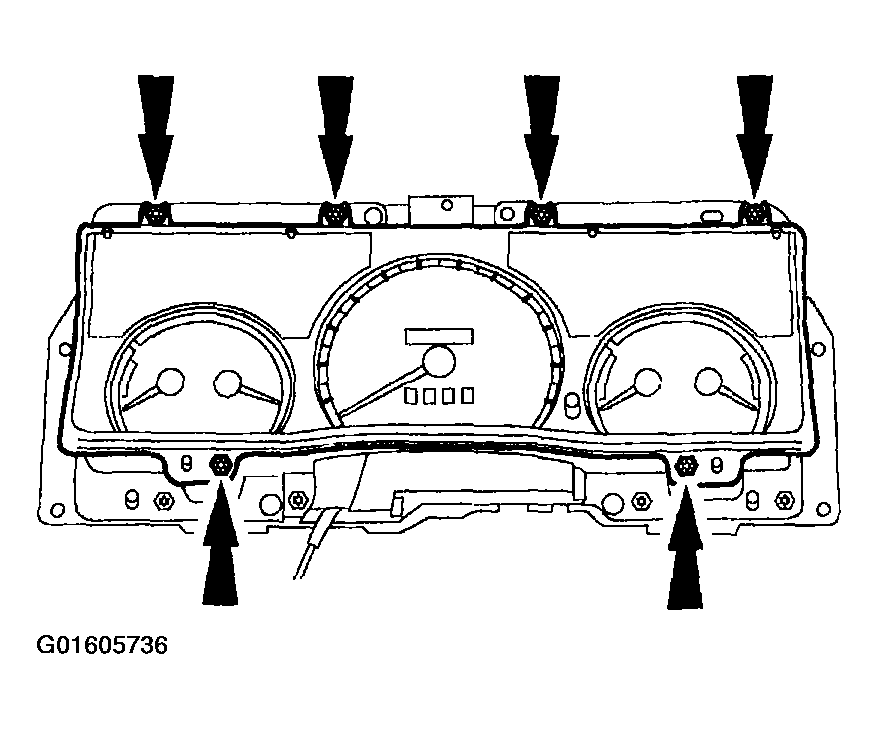

    Fig 1: Removing Retaining Screws And Removing Cluster Lens
    G01605736Courtesy of FORD MOTOR CO.
  2. Remove the retaining screws and remove the cluster lens.
  3. To install, reverse the removal procedure.
