Pinpoint Test N: High Beam Indicator Is Never On

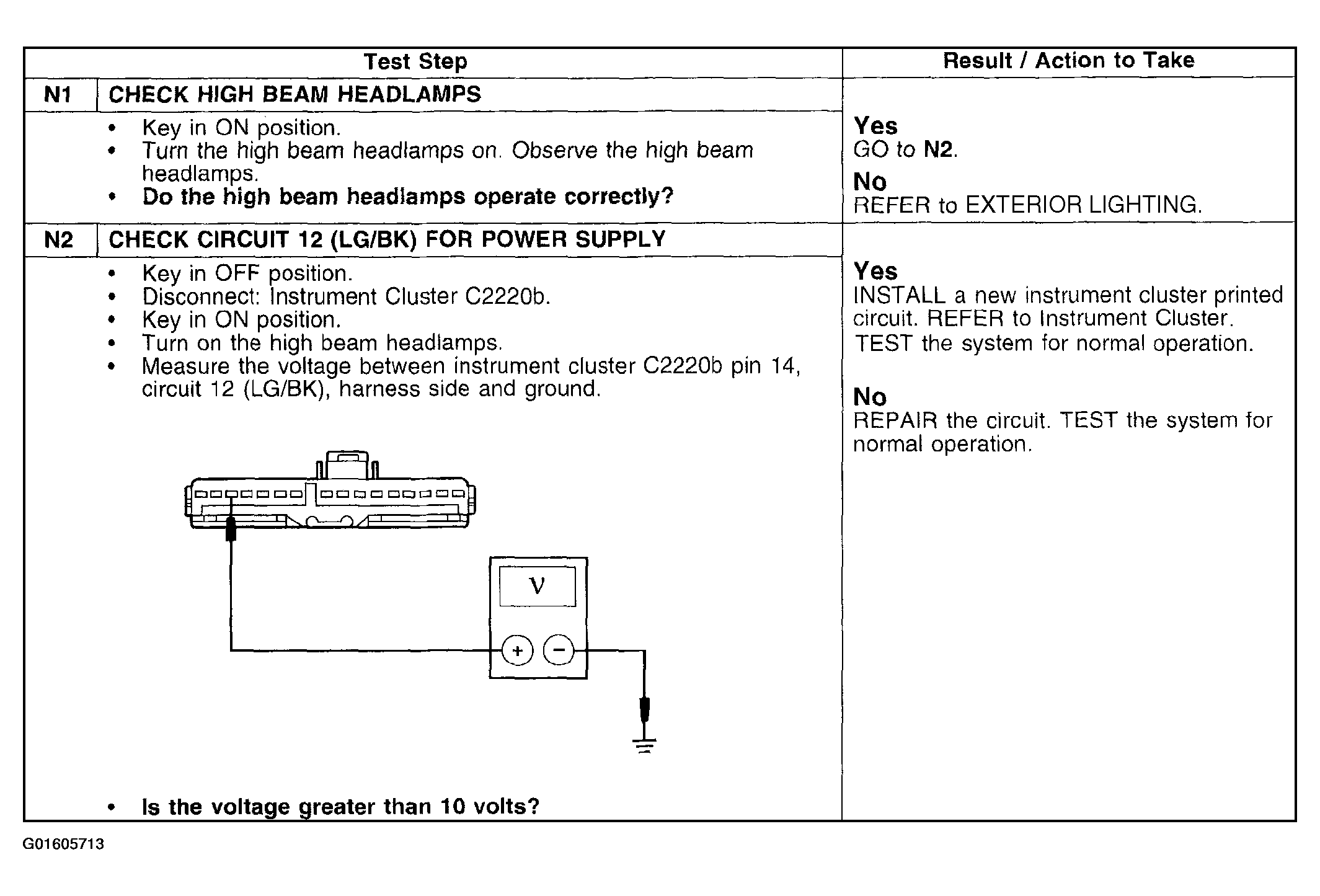

Fig 1: Pinpoint Test N: High Beam Indicator Is Never On

G01605713

Courtesy of FORD MOTOR CO.
