Pinpoint Test M: RH Turn Indicator Is Never On

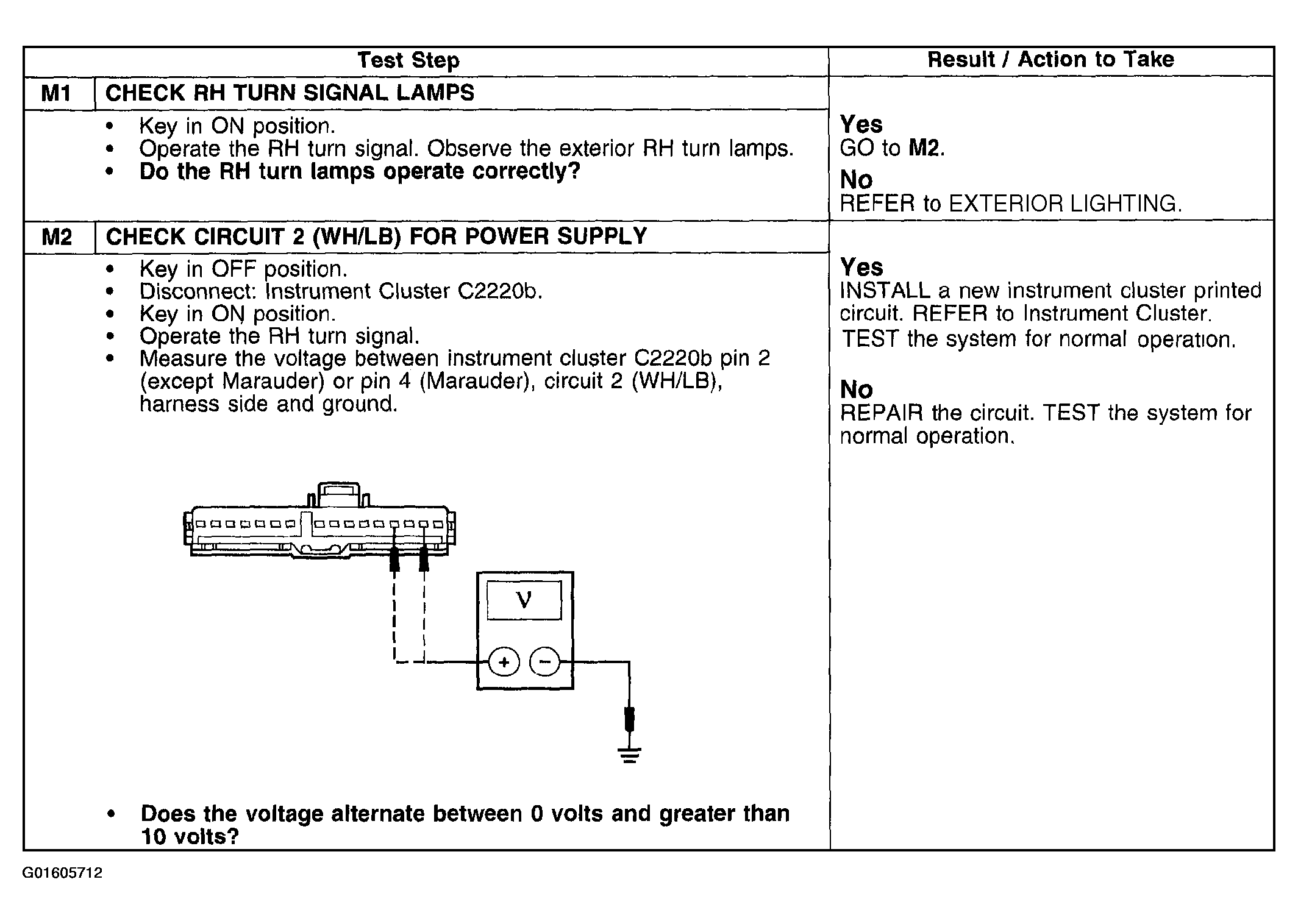

Fig 1: Pinpoint Test M: RH Turn Indicator Is Never On

G01605712

Courtesy of FORD MOTOR CO.
