Pinpoint Test H: Brake Warning Indicator Is Never On

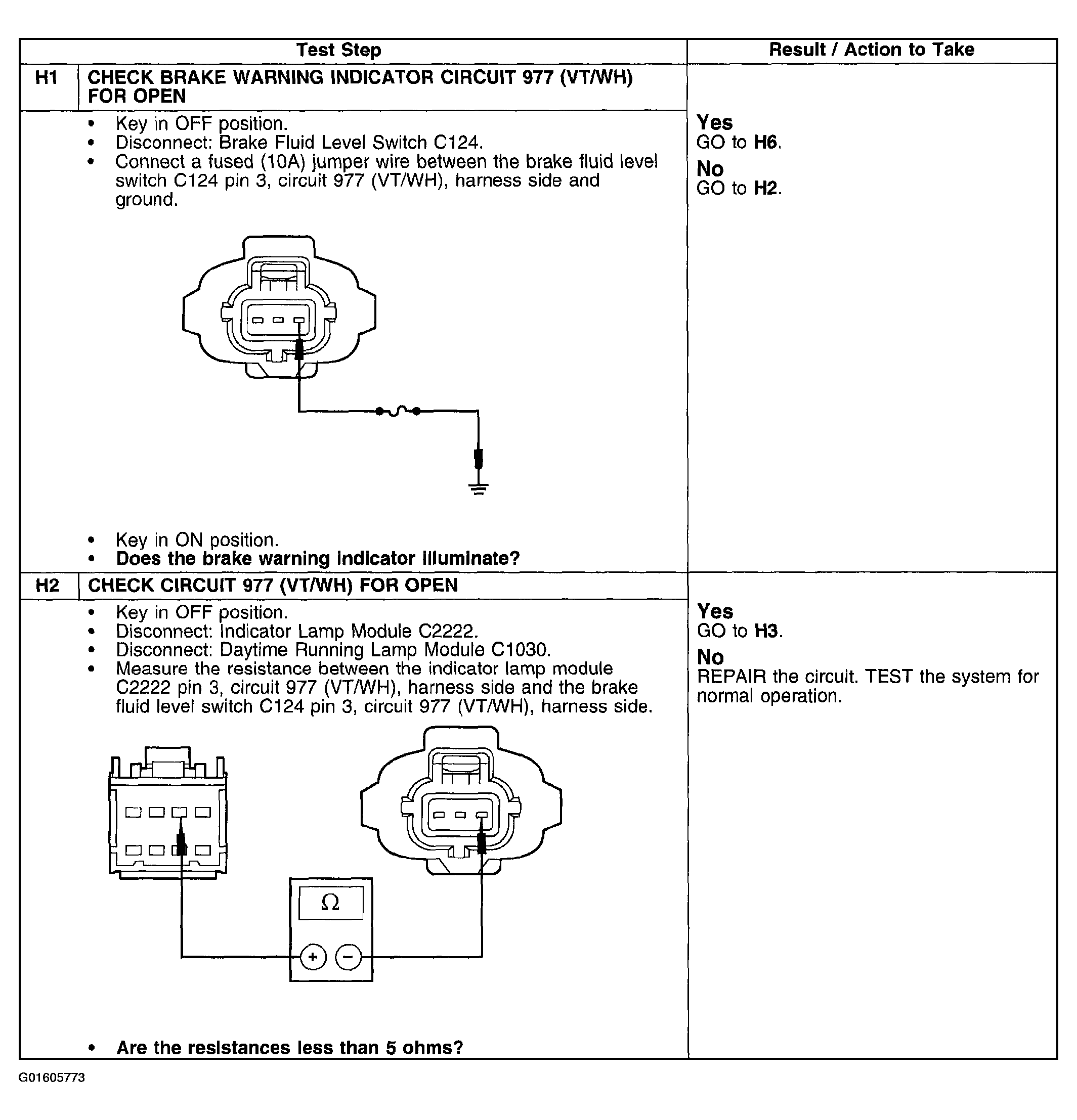

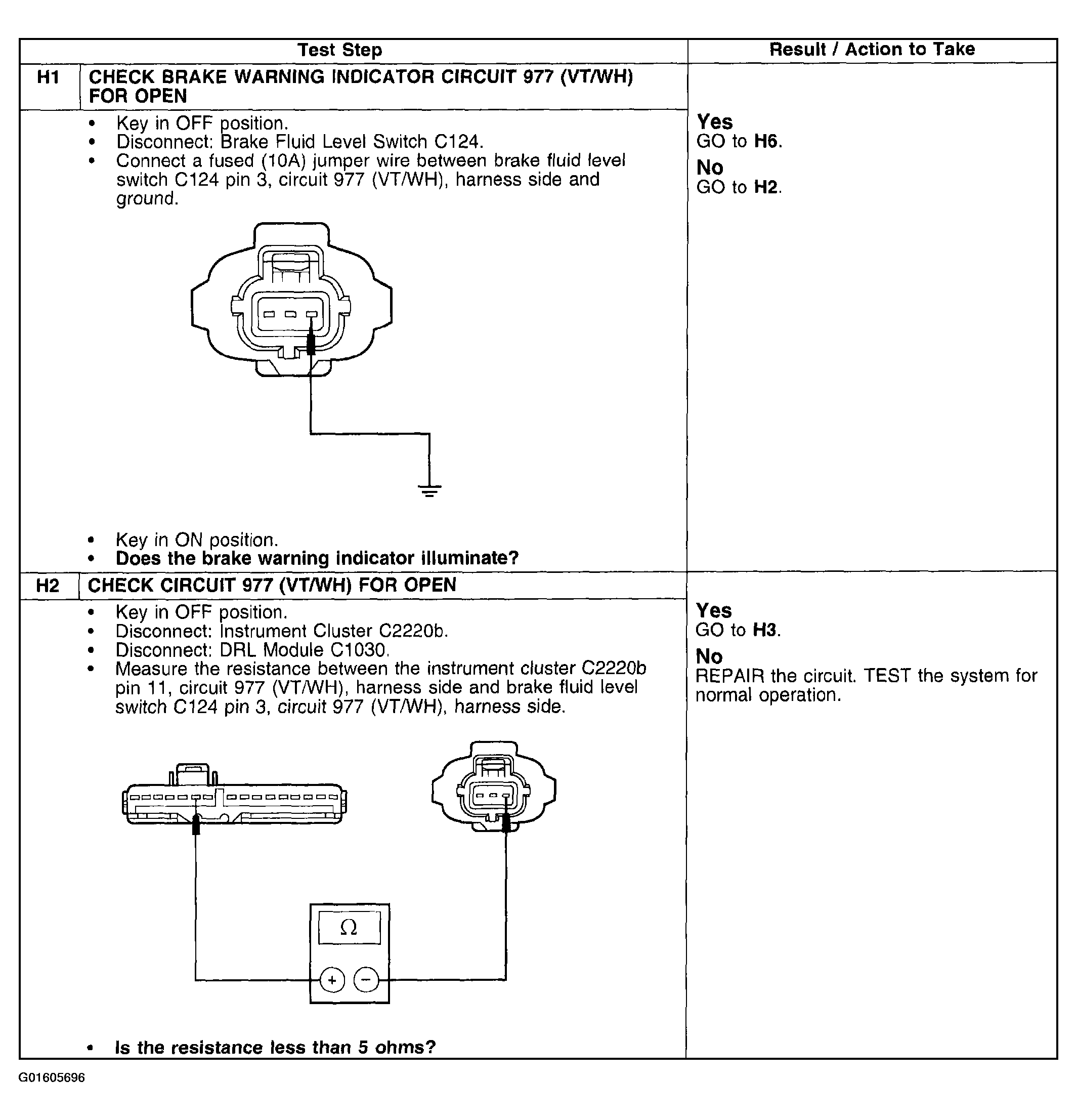

Fig 1: Pinpoint Test H: Brake Warning Indicator Is Never On (H1-H2)

Courtesy of FORD MOTOR CO.

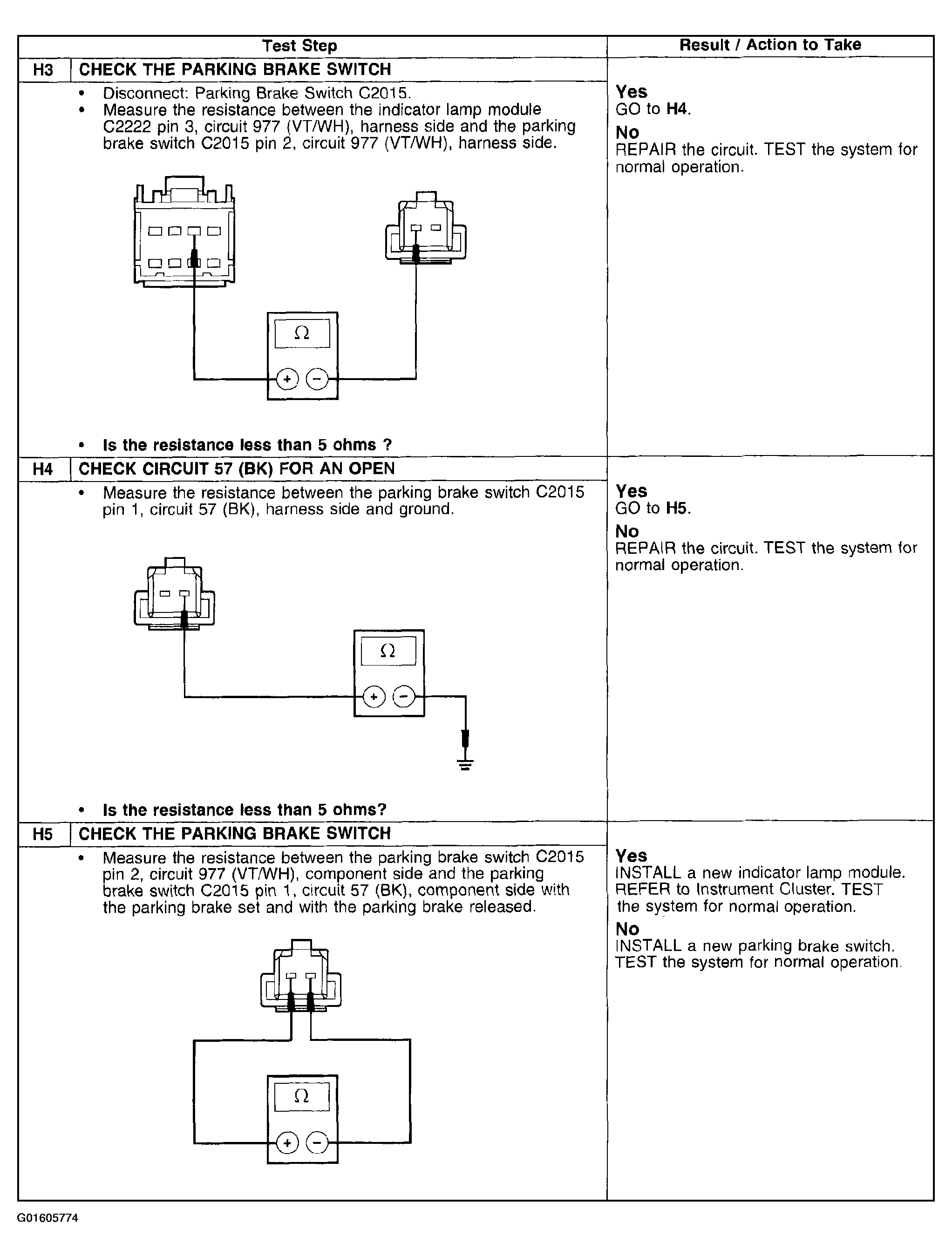

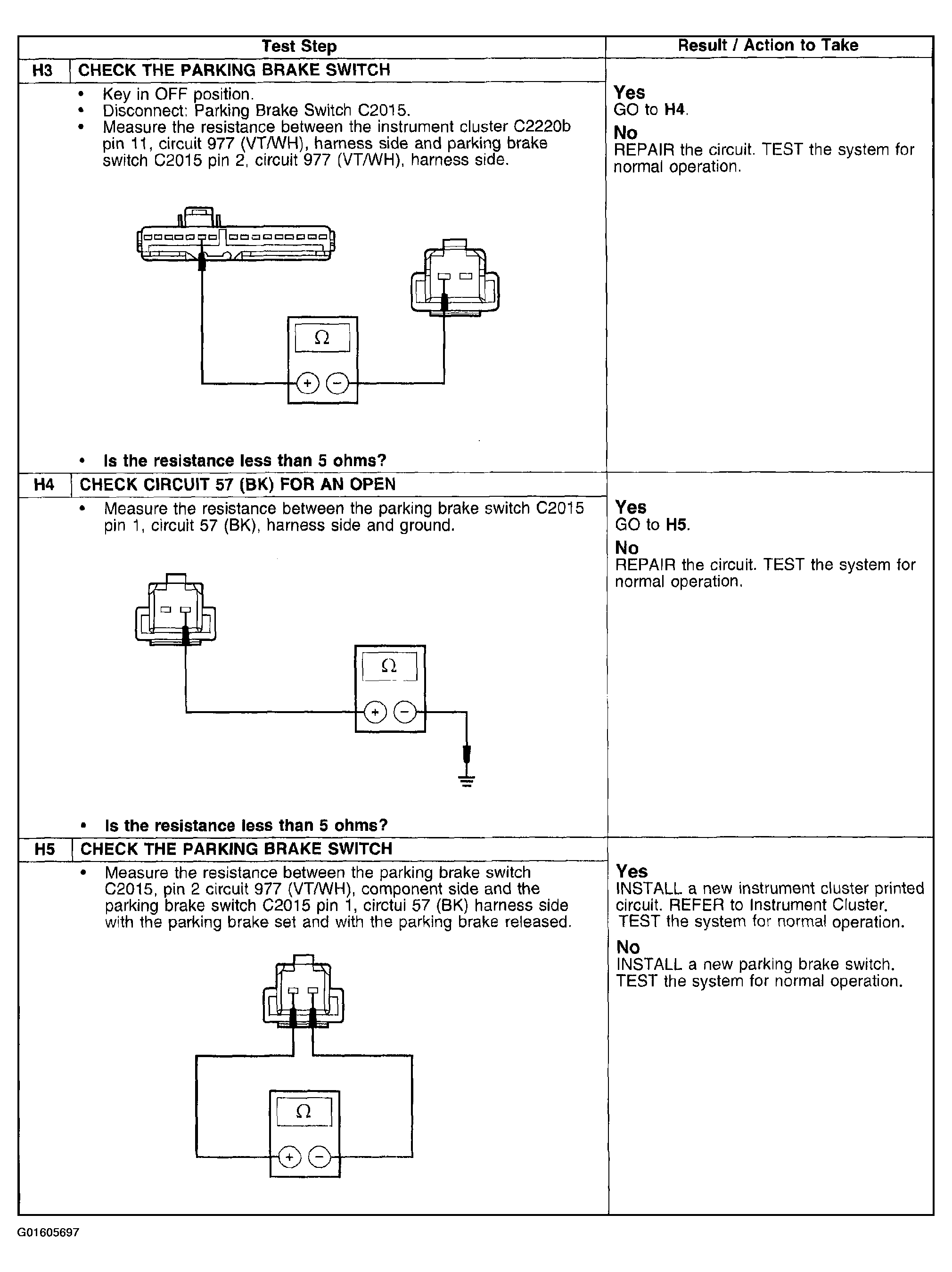

Fig 2: Pinpoint Test H: Brake Warning Indicator Is Never On (H3-H5)

Courtesy of FORD MOTOR CO.

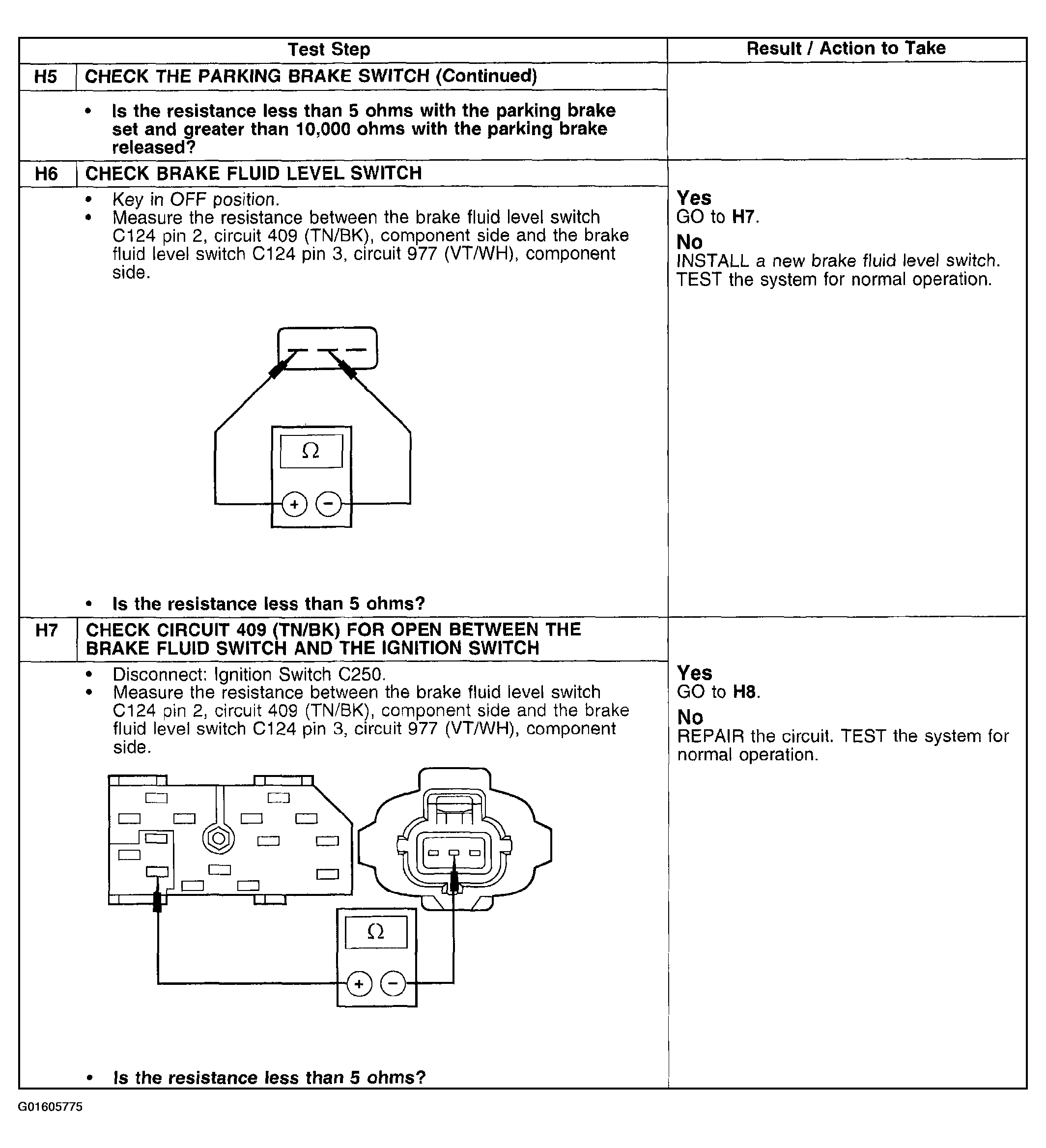

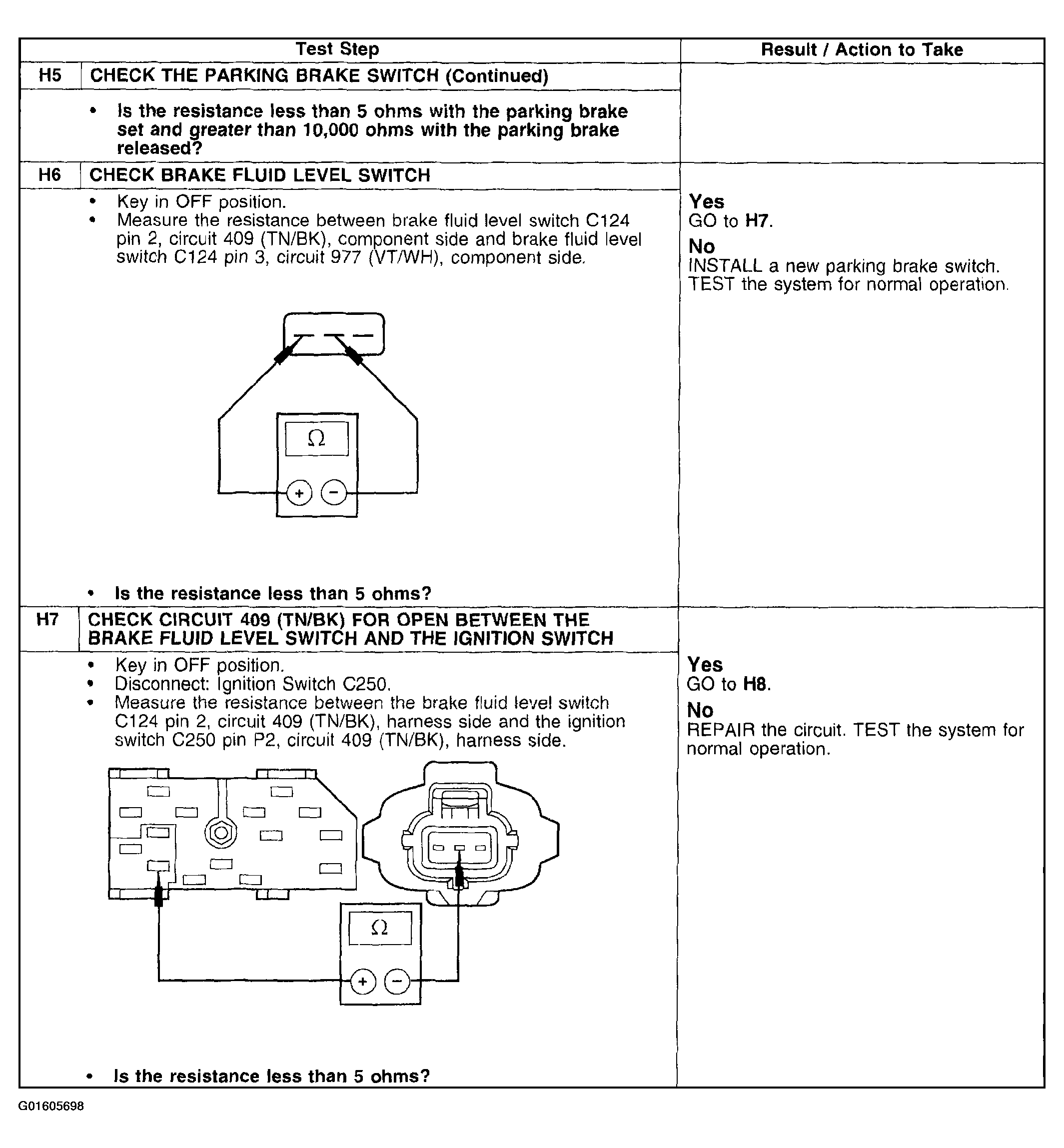

Fig 3: Pinpoint Test H: Brake Warning Indicator Is Never On (H5 Cont.-H7)

Courtesy of FORD MOTOR CO.

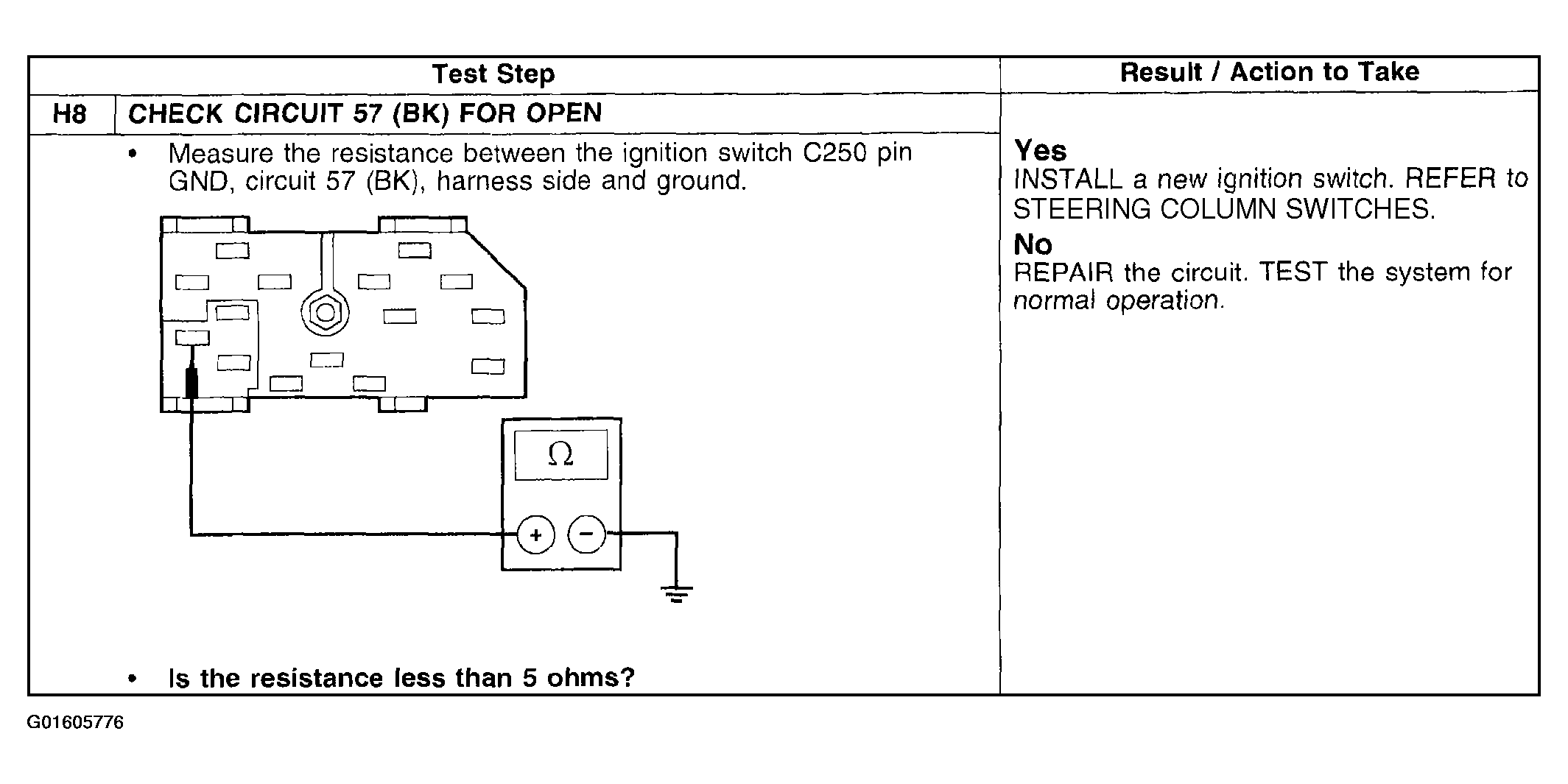

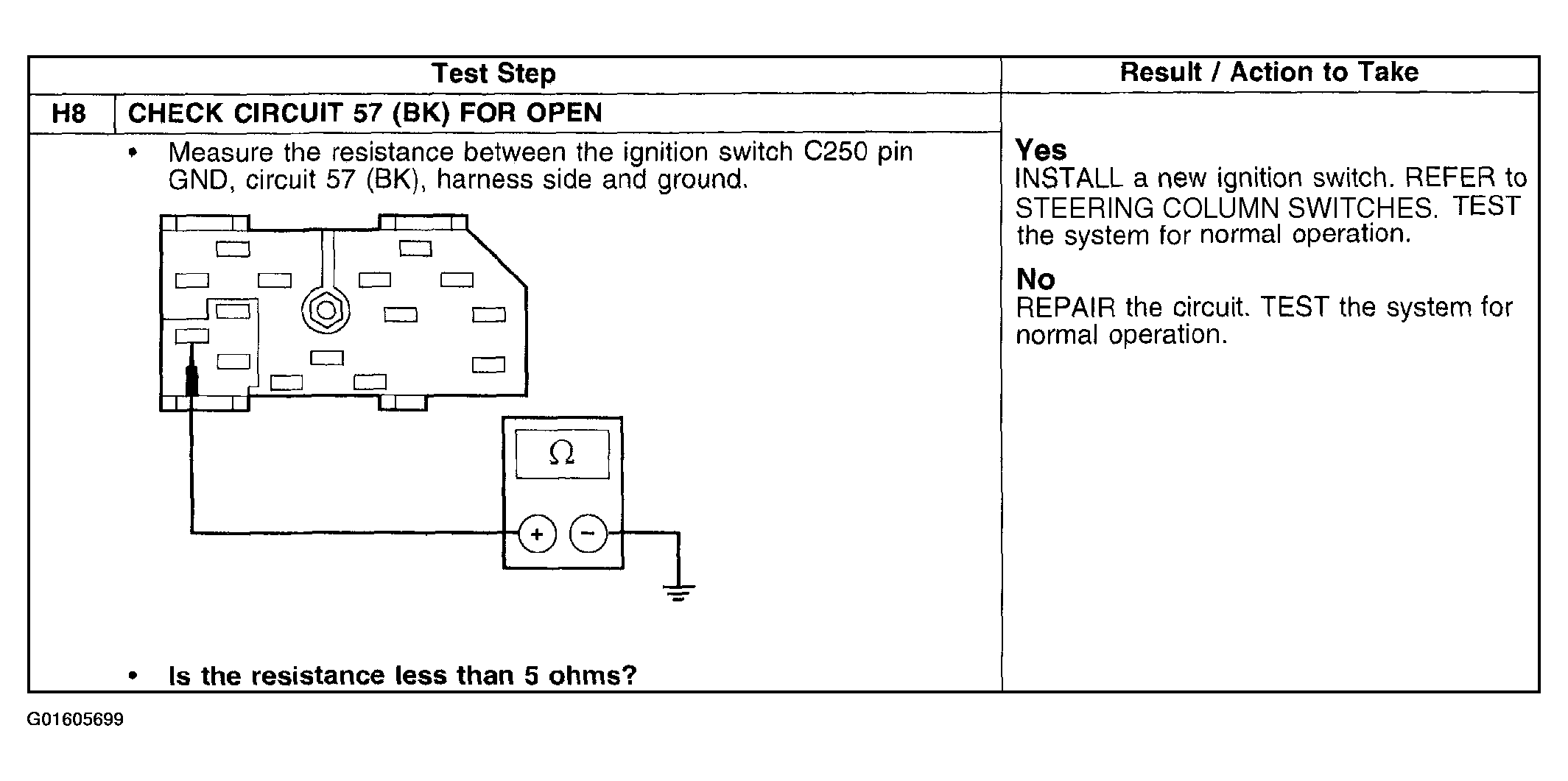

Fig 4: Pinpoint Test H: Brake Warning Indicator Is Never On (H8)

Courtesy of FORD MOTOR CO.
