Pinpoint Test B: Incorrect Temperature Gauge Indication

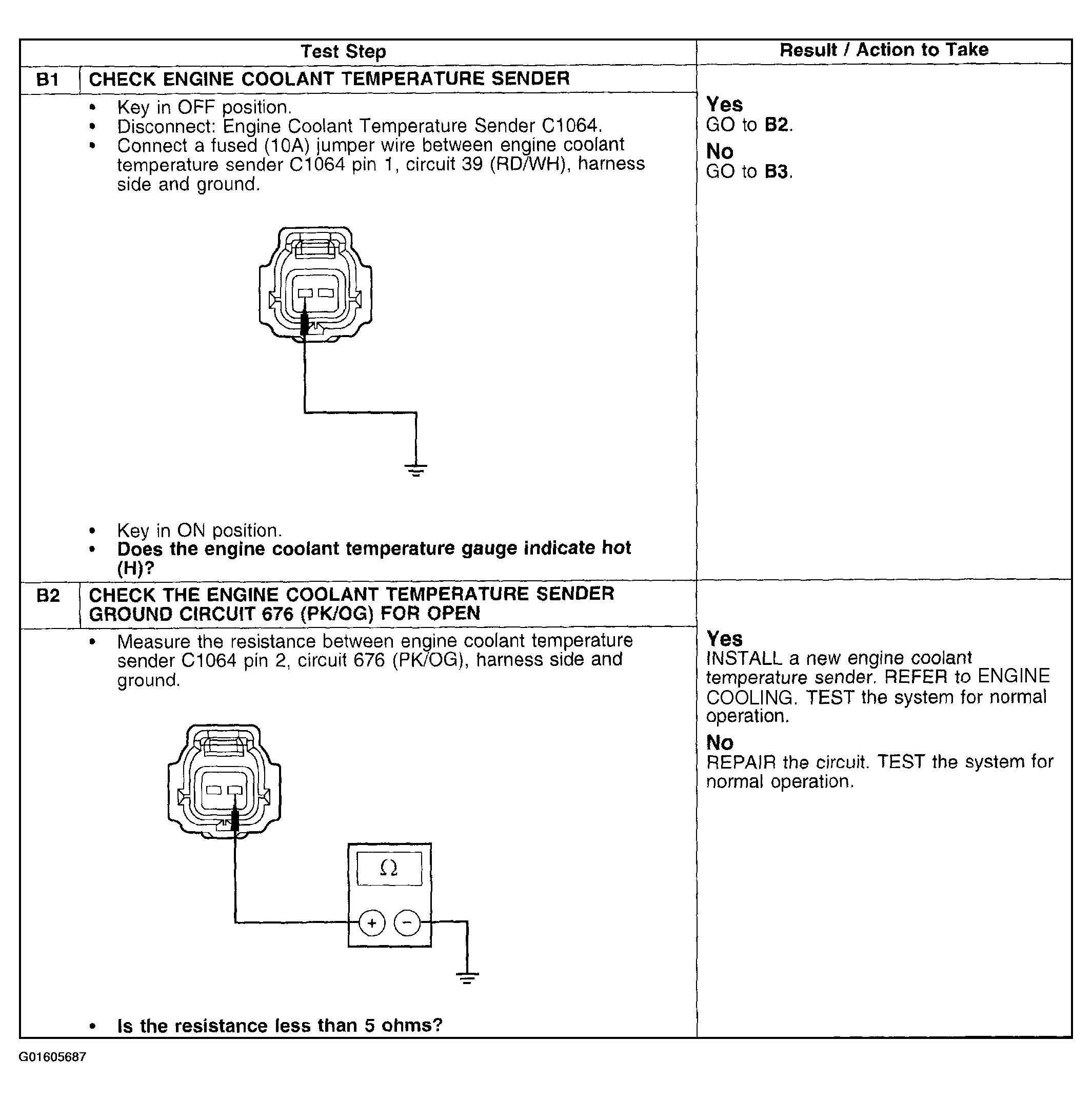

Fig 1: Pinpoint Test B: Incorrect Temperature Gauge Indication (B1-B2)

Courtesy of FORD MOTOR CO.

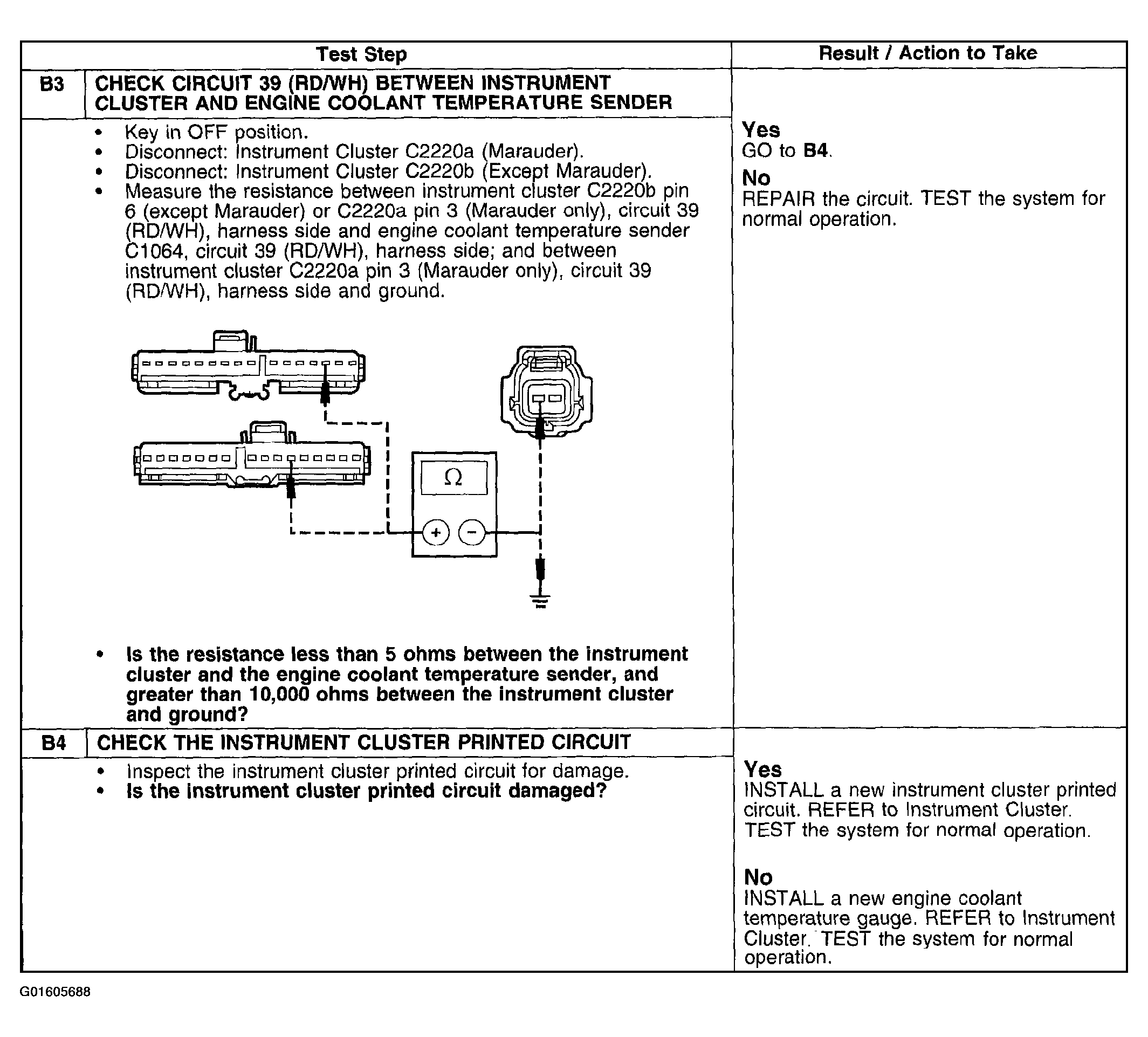

Fig 2: Pinpoint Test B: Incorrect Temperature Gauge Indication (B3-B4)

Courtesy of FORD MOTOR CO.
