Brake Booster: Removal

Disconnect the battery ground cable (14301). For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the fluid level sensor connector.

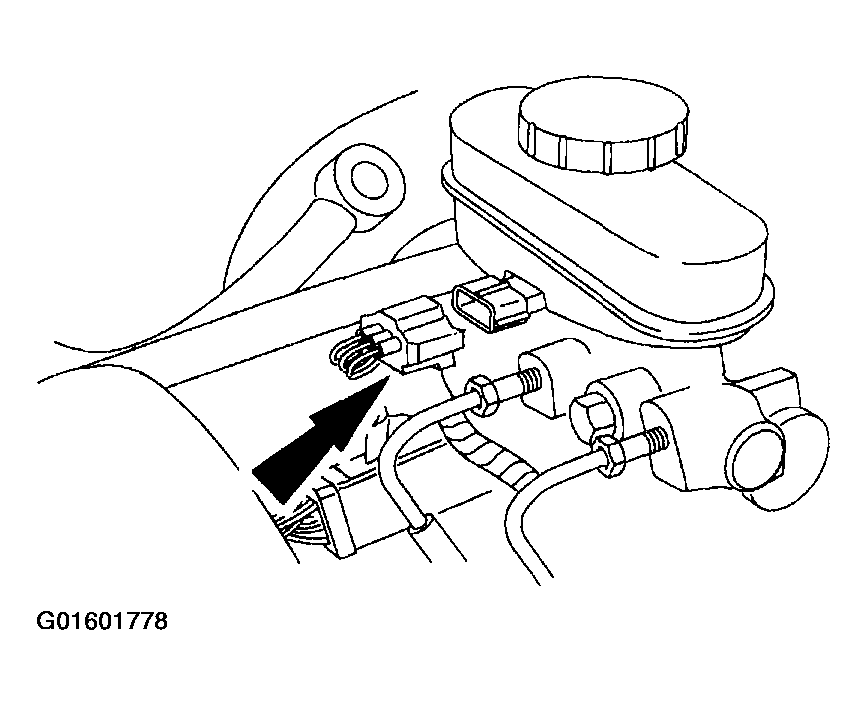

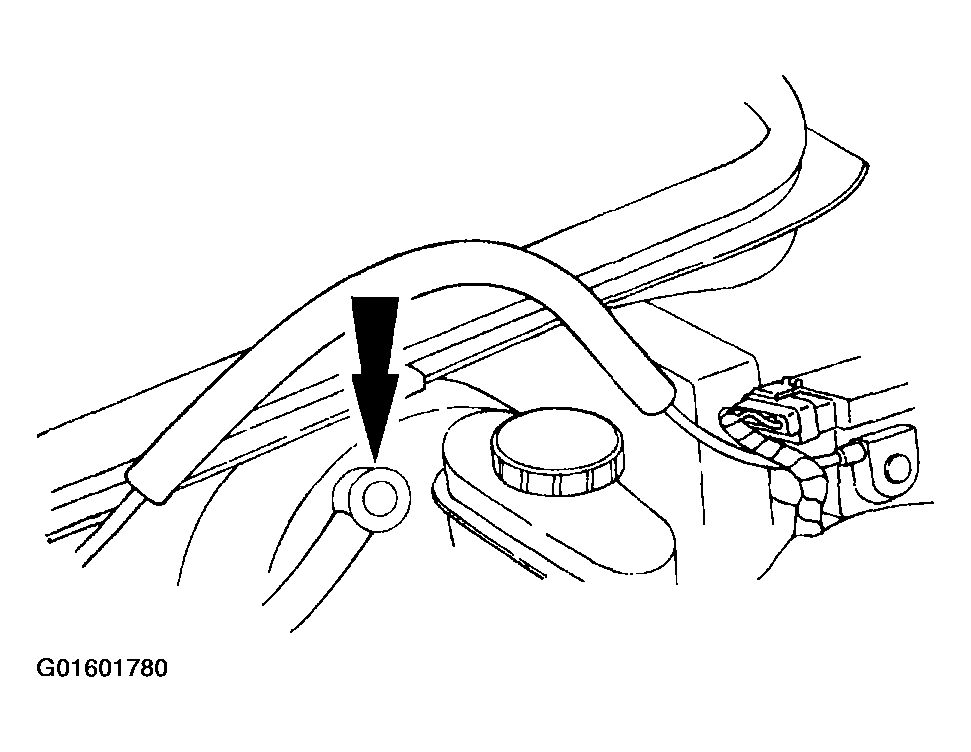

Fig 1: Disconnecting Fluid Level Sensor Connector
Courtesy of FORD MOTOR CO.
Position the speed control cable (9A825) out of the way.

Fig 2: Removing Speed Control Cable (9A825)
Courtesy of FORD MOTOR CO.
Disconnect the power brake booster check valve (2365).

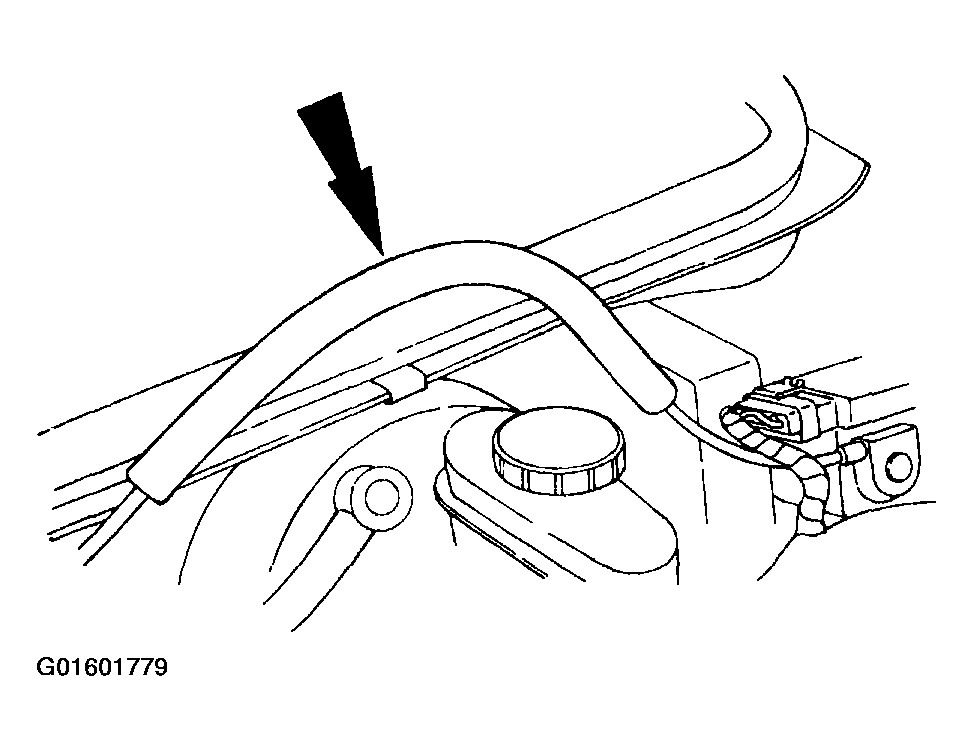

Fig 3: Disconnecting Power Brake Booster Check Valve (2365)
Courtesy of FORD MOTOR CO.
Remove the brake master cylinder nuts.

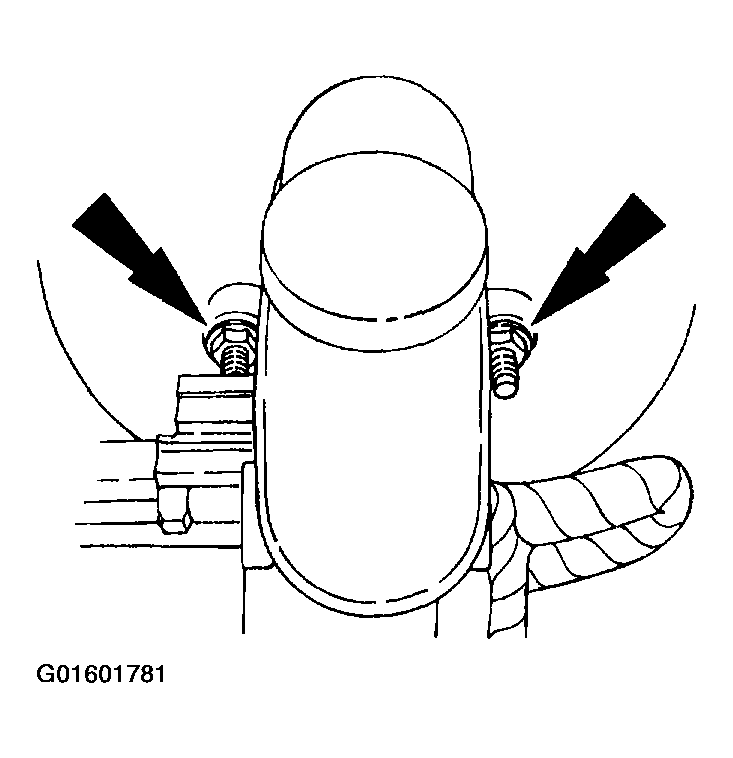

Fig 4: Removing Brake Master Cylinder Nuts
Courtesy of FORD MOTOR CO.
Remove the wiring harness bracket, and position aside.

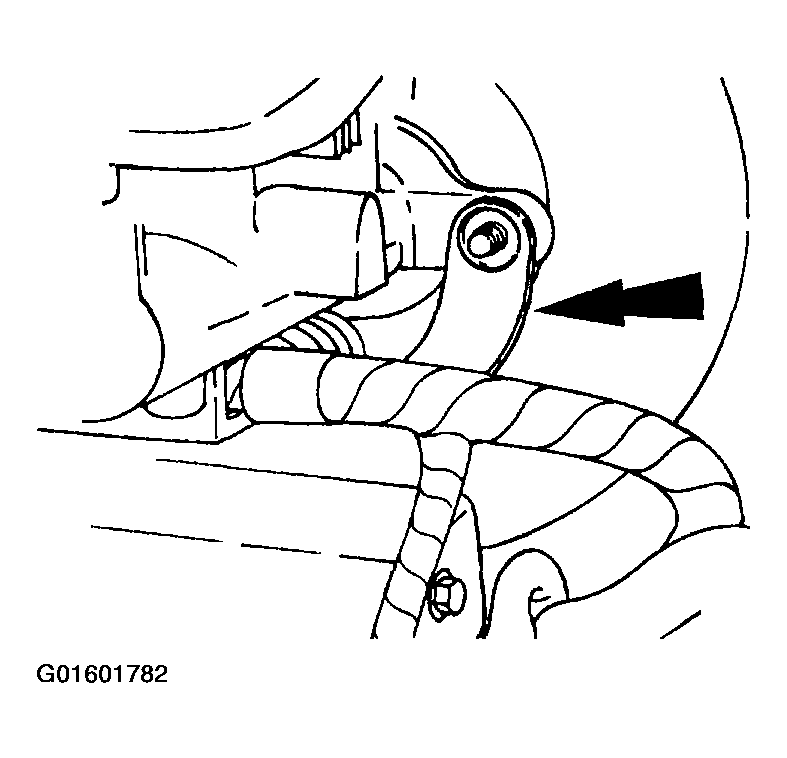

Fig 5: Removing Wiring Harness Bracket
Courtesy of FORD MOTOR CO.
Remove the brake master cylinder (2140) and position aside.
Remove the instrument close-out panel pushpins, and then remove the panel.

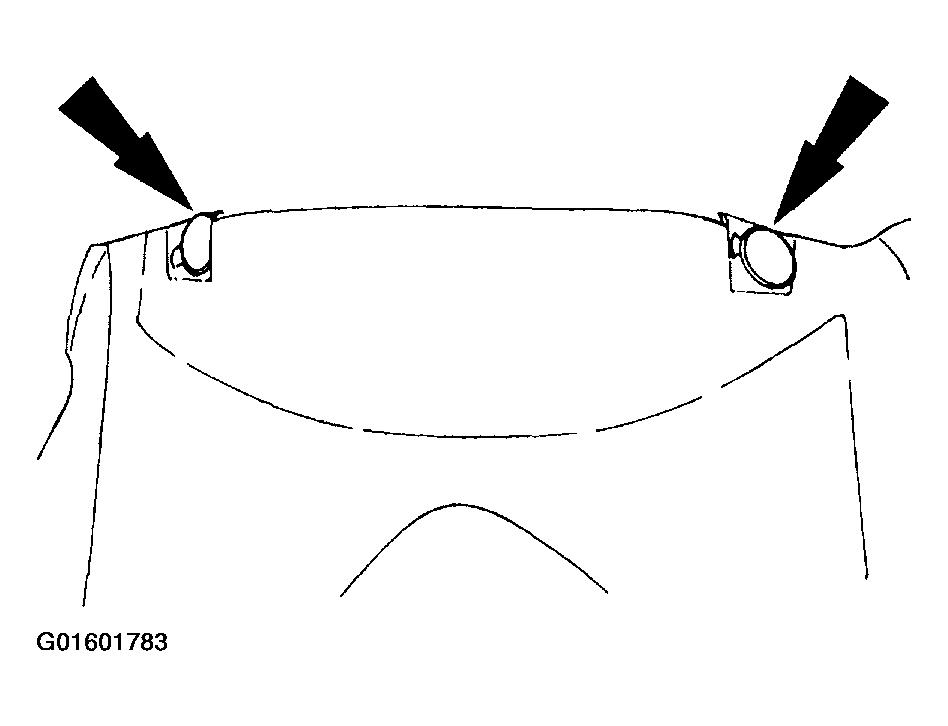

Fig 6: Removing Instrument Close-Out Panel Pushpins
Courtesy of FORD MOTOR CO.
Remove the stoplight switch retaining pin.

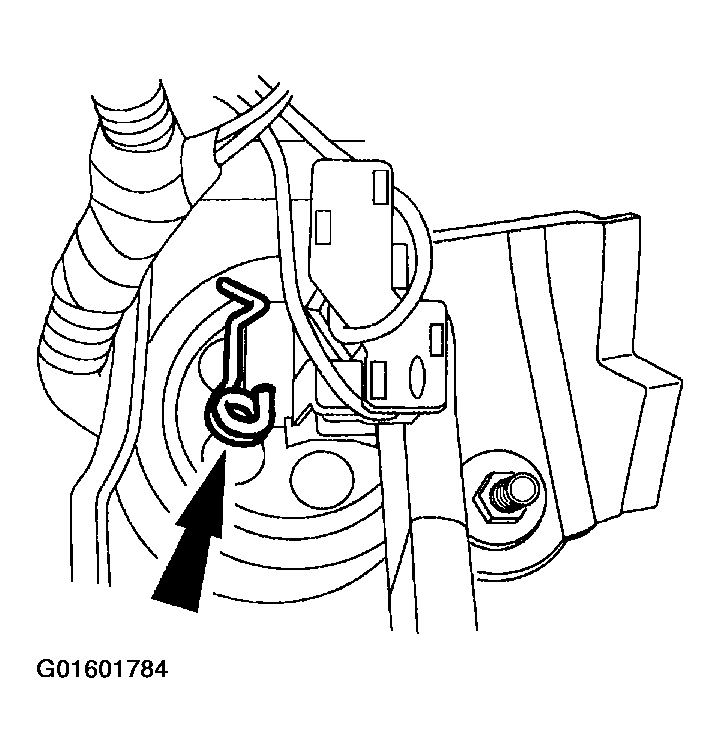

Fig 7: Removing Stoplight Switch Retaining Pin
Courtesy of FORD MOTOR CO.
Slide the stoplight switch (13480) and booster push rod off the brake pedal pin.

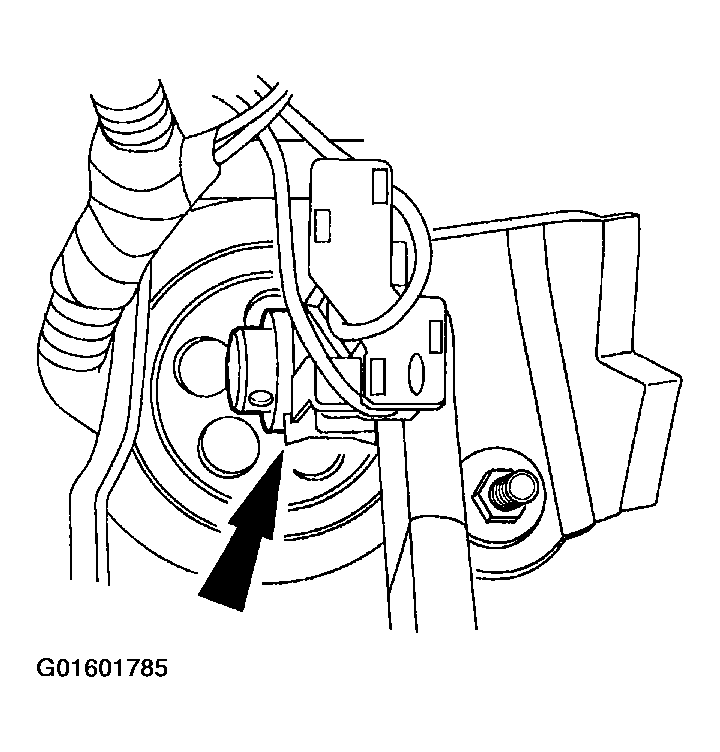

Fig 8: Sliding Stoplight Switch (13480) And Booster Push Rod
Courtesy of FORD MOTOR CO.
Remove the brake booster retaining nuts.

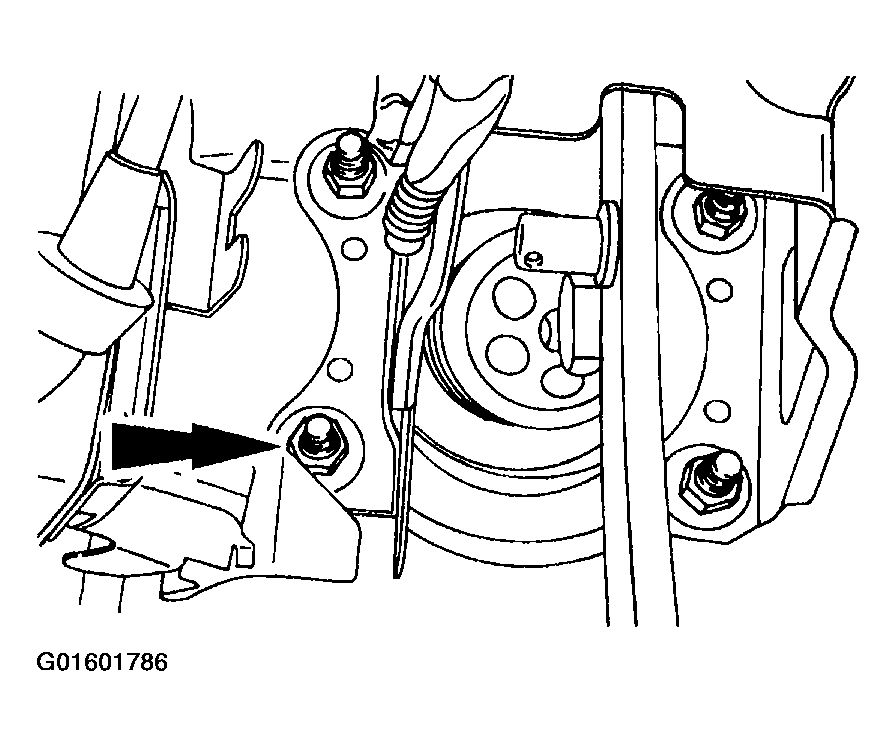

Fig 9: Removing Brake Booster Retaining Nuts
Courtesy of FORD MOTOR CO.
Remove the power brake booster (2005).

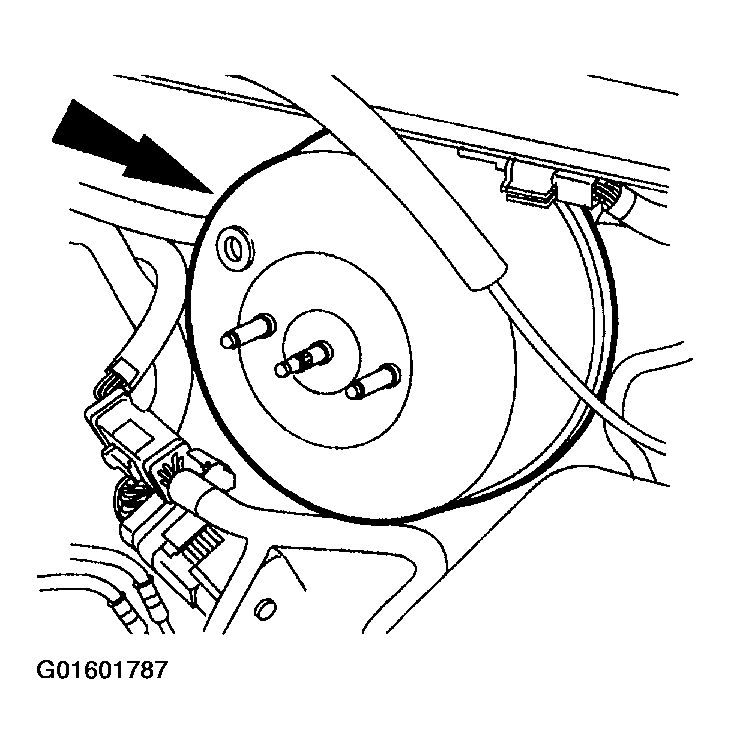

Fig 10: Removing Power Brake Booster (2005)
Courtesy of FORD MOTOR CO.
