Brake Booster: Installation

    CAUTION: The brake switch must be positioned with the closed hole away from the brake pedal arm and the open hole facing upward.
    NOTE: The brake booster input rod must be correctly oriented during installation.

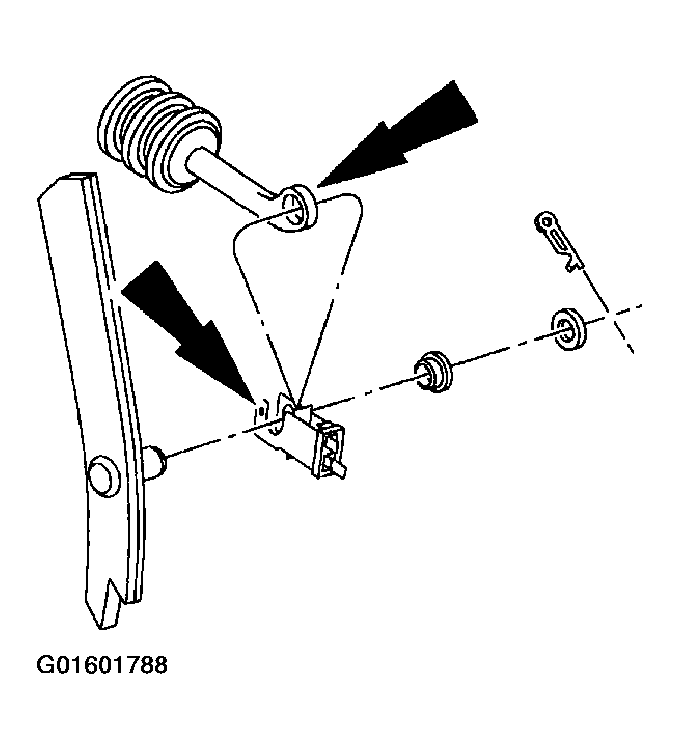

    Fig 1: [Checking Stoplight Operation]
    G01601788Courtesy of FORD MOTOR CO.

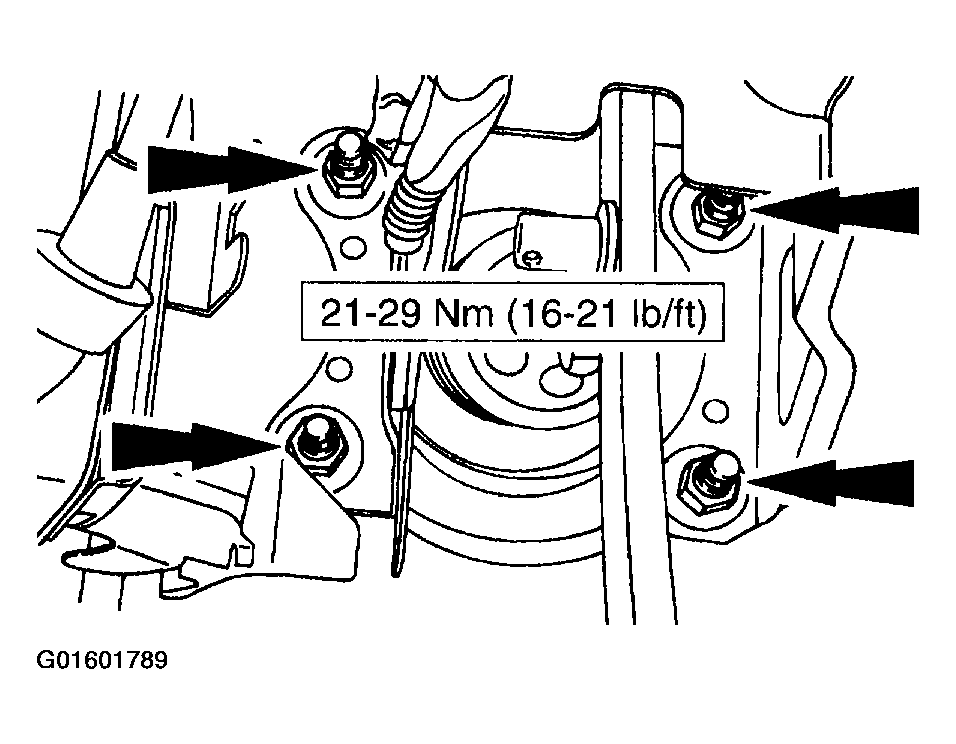

    Fig 2: Installing Brake Booster Retaining Nuts
    G01601789Courtesy of FORD MOTOR CO.

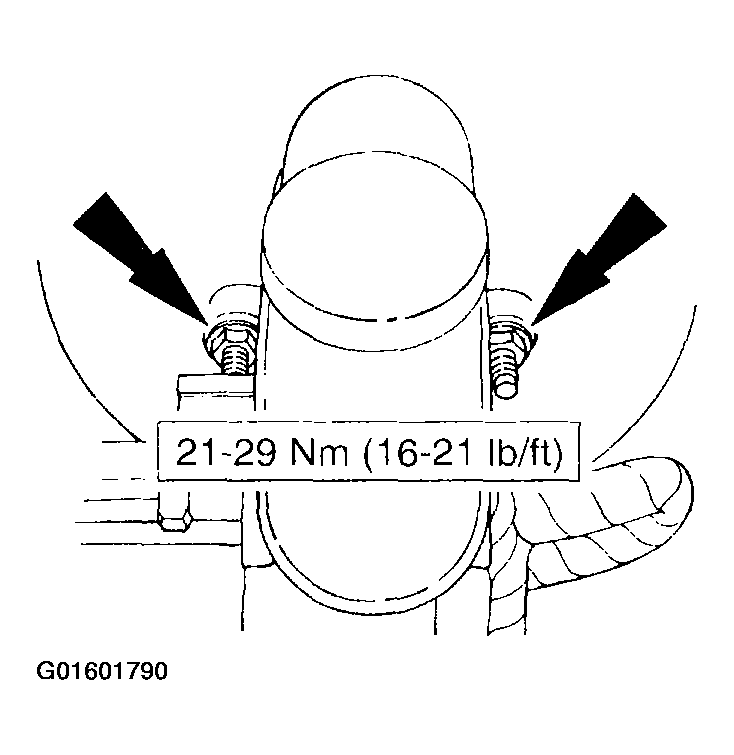

    Fig 3: Installing Brake Master Cylinder Nuts
    G01601790Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
