Removal and Installation

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the headlamp switch.

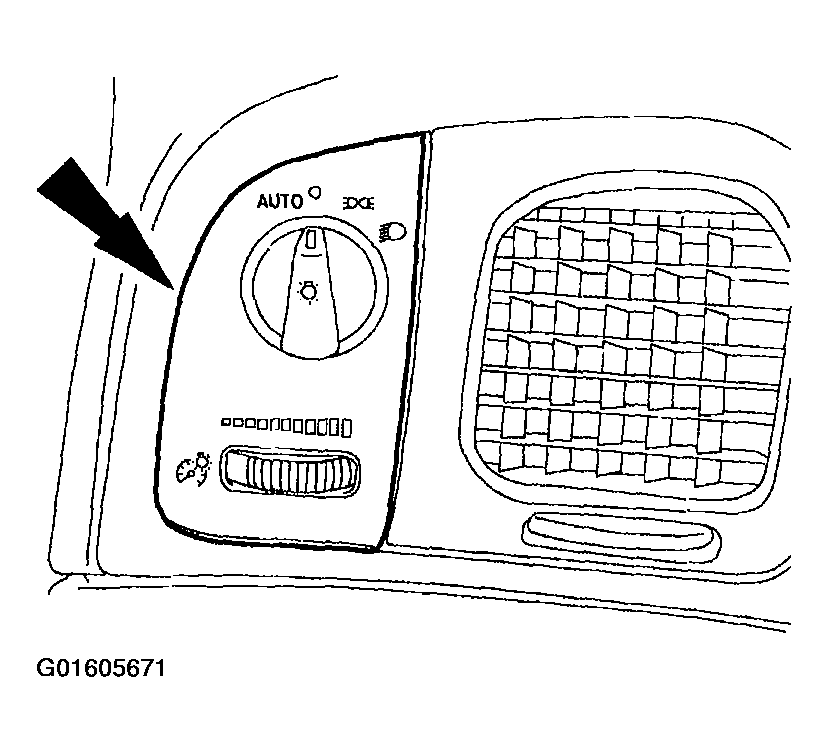

    Fig 1: Removing Headlamp Switch
    G01605671Courtesy of FORD MOTOR CO.
  3. Disconnect the electrical connectors.

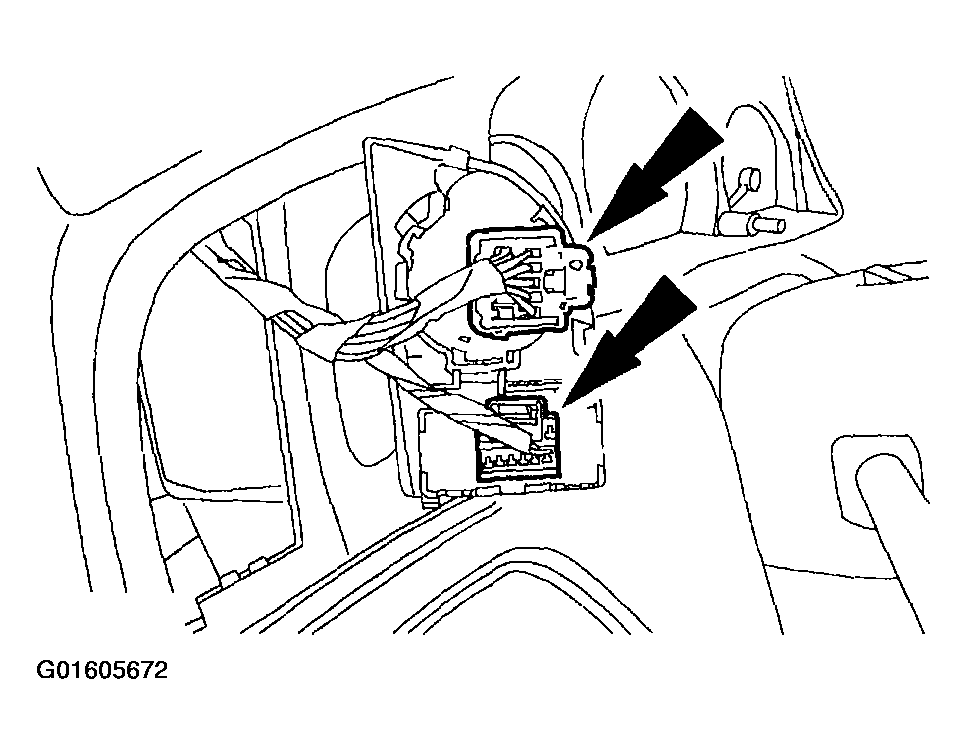

    Fig 2: Disconnecting Electrical Connectors
    G01605672Courtesy of FORD MOTOR CO.
  4. Release the retaining tabs and remove the instrument panel dimmer switch.

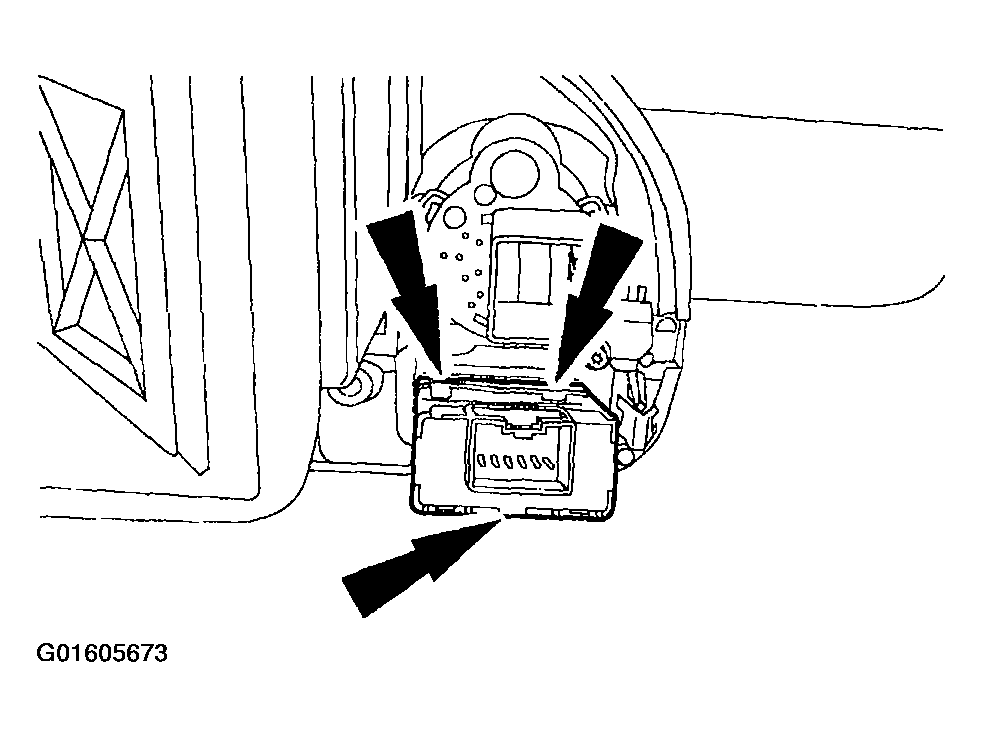

    Fig 3: Releasing Retaining Tabs And Remove Instrument Panel Dimmer Switch
    G01605673Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
