Speedometer Drive /Driven Gear Usage

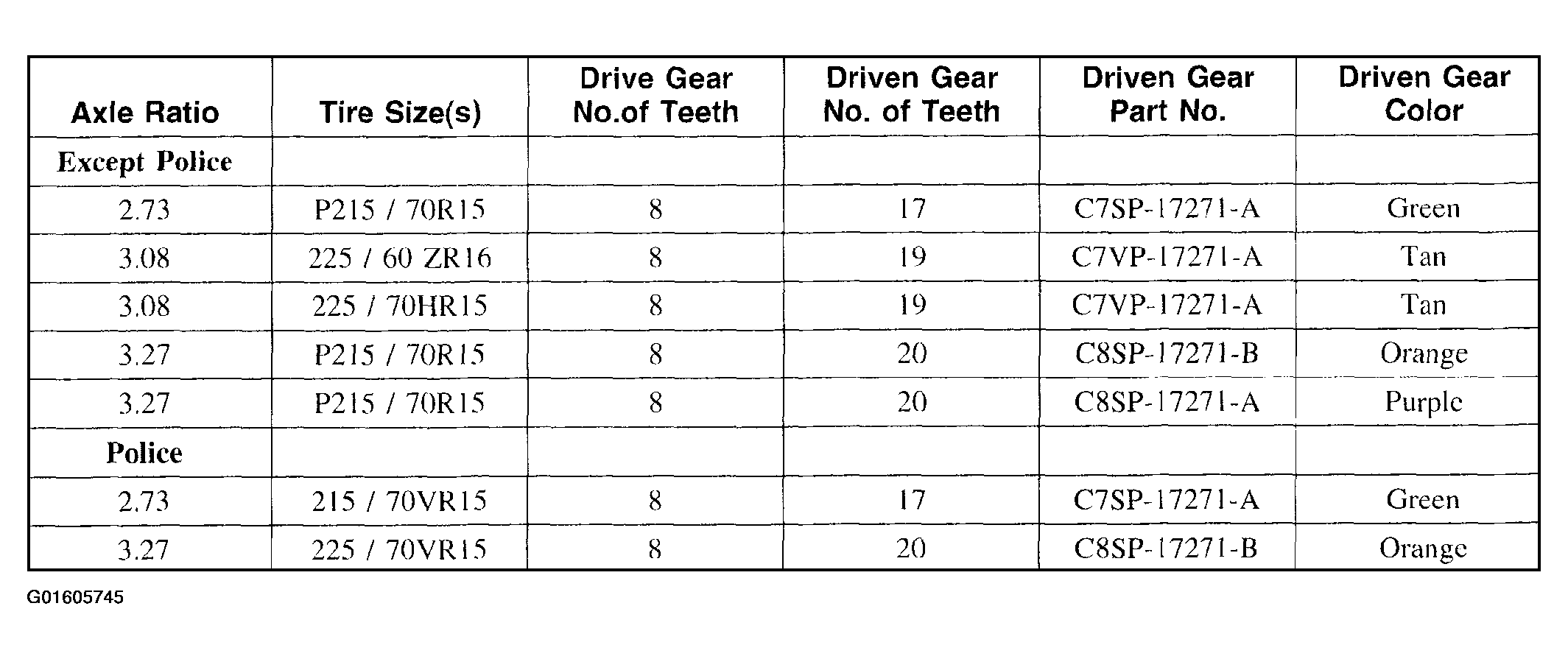

Fig 1: Speedometer Drive /Driven Gear Usage

G01605745

Courtesy of FORD MOTOR CO.
