Removal and Installation

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Set the parking brake.
Remove the instrument panel finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Remove the lower steering column cover.
1. Remove the lower steering column cover bolts.
2. Position the parking brake release aside and remove the lower steering column cover.

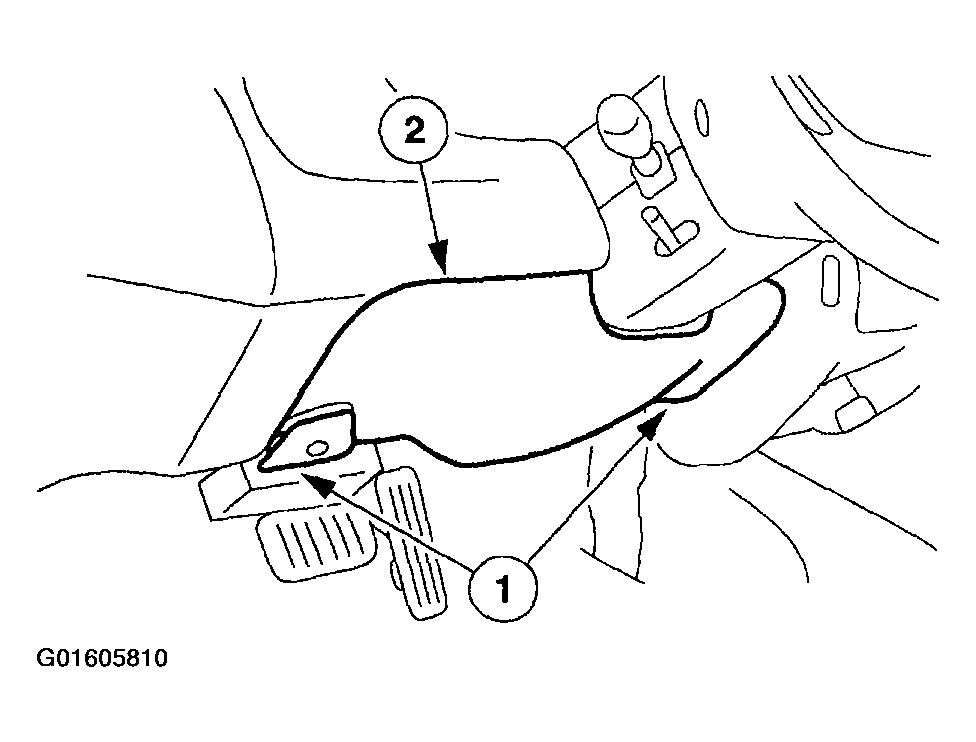

  Fig 1: Removing Lower Steering Column Cover Bolts
  Courtesy of FORD MOTOR CO.
Remove the bolts and the lower steering column reinforcement.

Fig 2: Removing Bolts And Lower Steering Column Reinforcement
Courtesy of FORD MOTOR CO.
If equipped, position the transmission range indicator cable out of the way.
1. Disconnect the cable.
2. Remove the screw and position the cable aside.

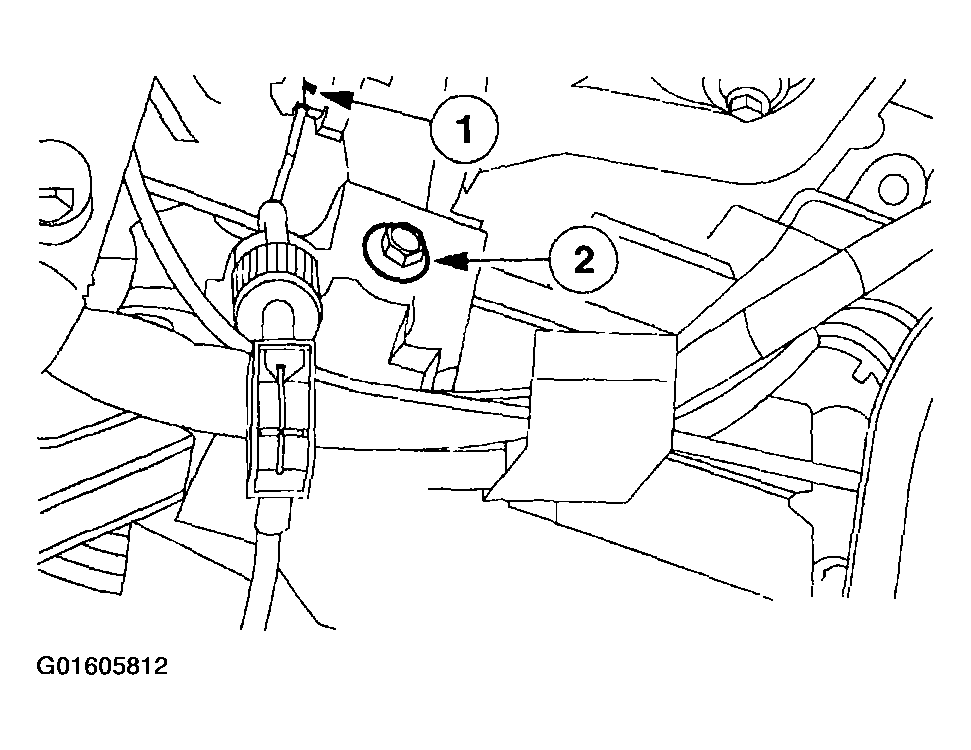

  Fig 3: Disconnecting Cable
  Courtesy of FORD MOTOR CO.
Loosen the steering column assembly.

Fig 4: Loosening Steering Column Assembly
Courtesy of FORD MOTOR CO.
Remove the screws.

Fig 5: Removing Screws
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector.

Fig 6: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
Pull the instrument cluster out from the instrument panel and disconnect the electrical connectors.

Fig 7: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
