Pinpoint Test I: Check Engine Indicator Is Never On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

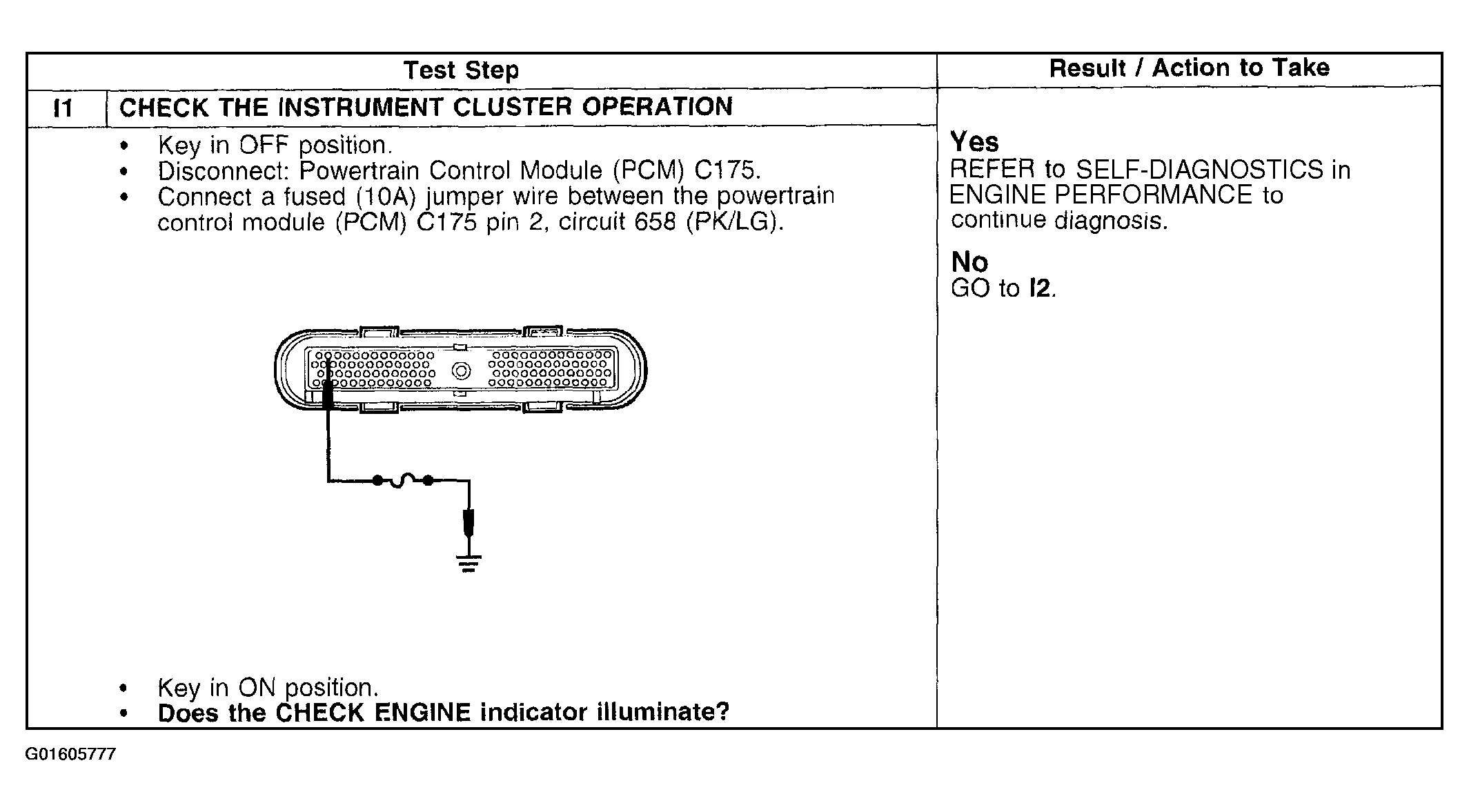

Fig 1: Pinpoint Test I: Check Engine Indicator Is Never On (I1)
G01605777Courtesy of FORD MOTOR CO.

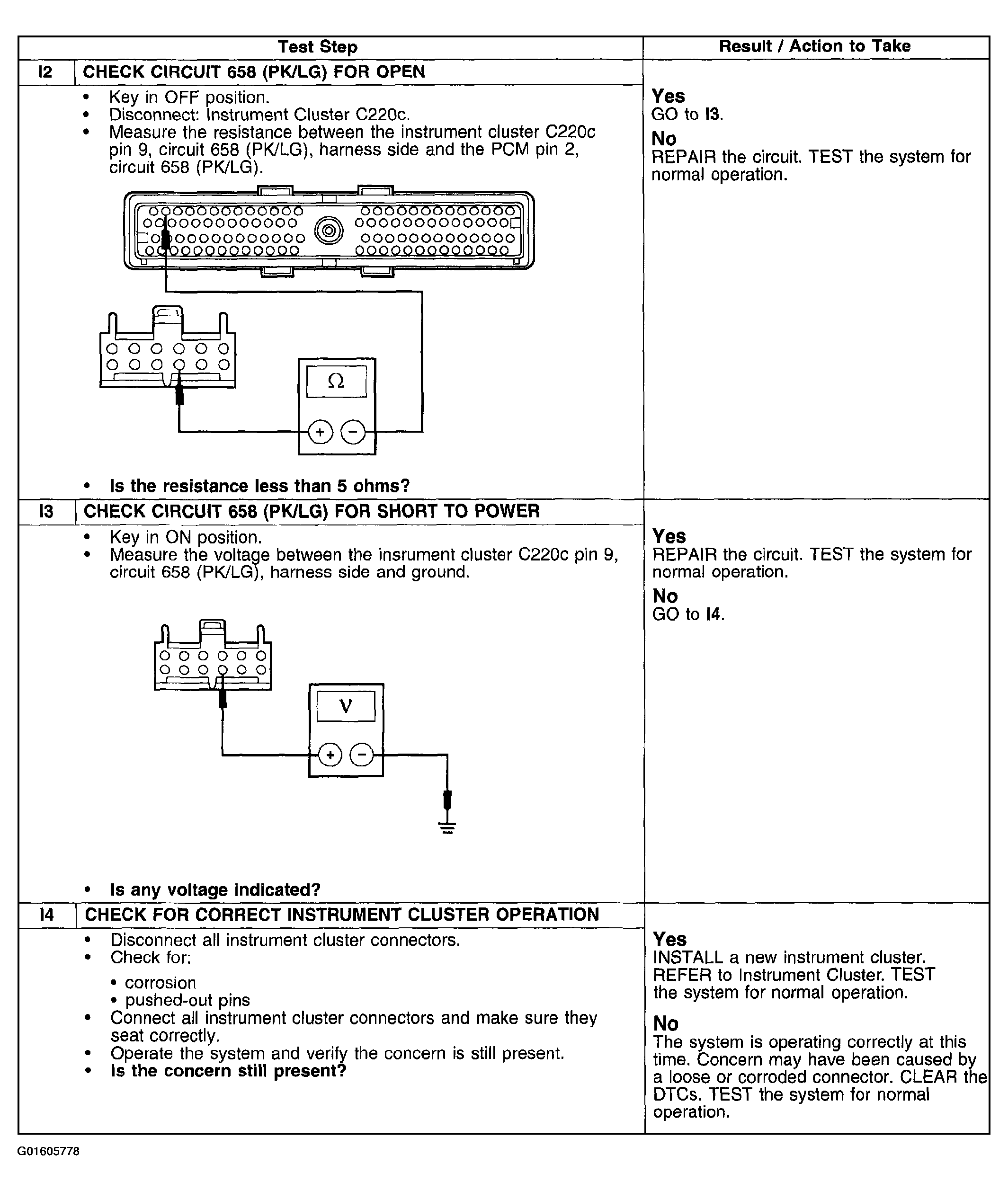

Fig 2: Pinpoint Test I: Check Engine Indicator Is Never On (I2-I4)
G01605778Courtesy of FORD MOTOR CO.
