Pinpoint Test O: The Instrument Cluster Is Inoperative/Erratic

CAUTION: Use correct probe adapter(s) when making measurements. Failure to use correct probe adapter(s) may damage the connector.

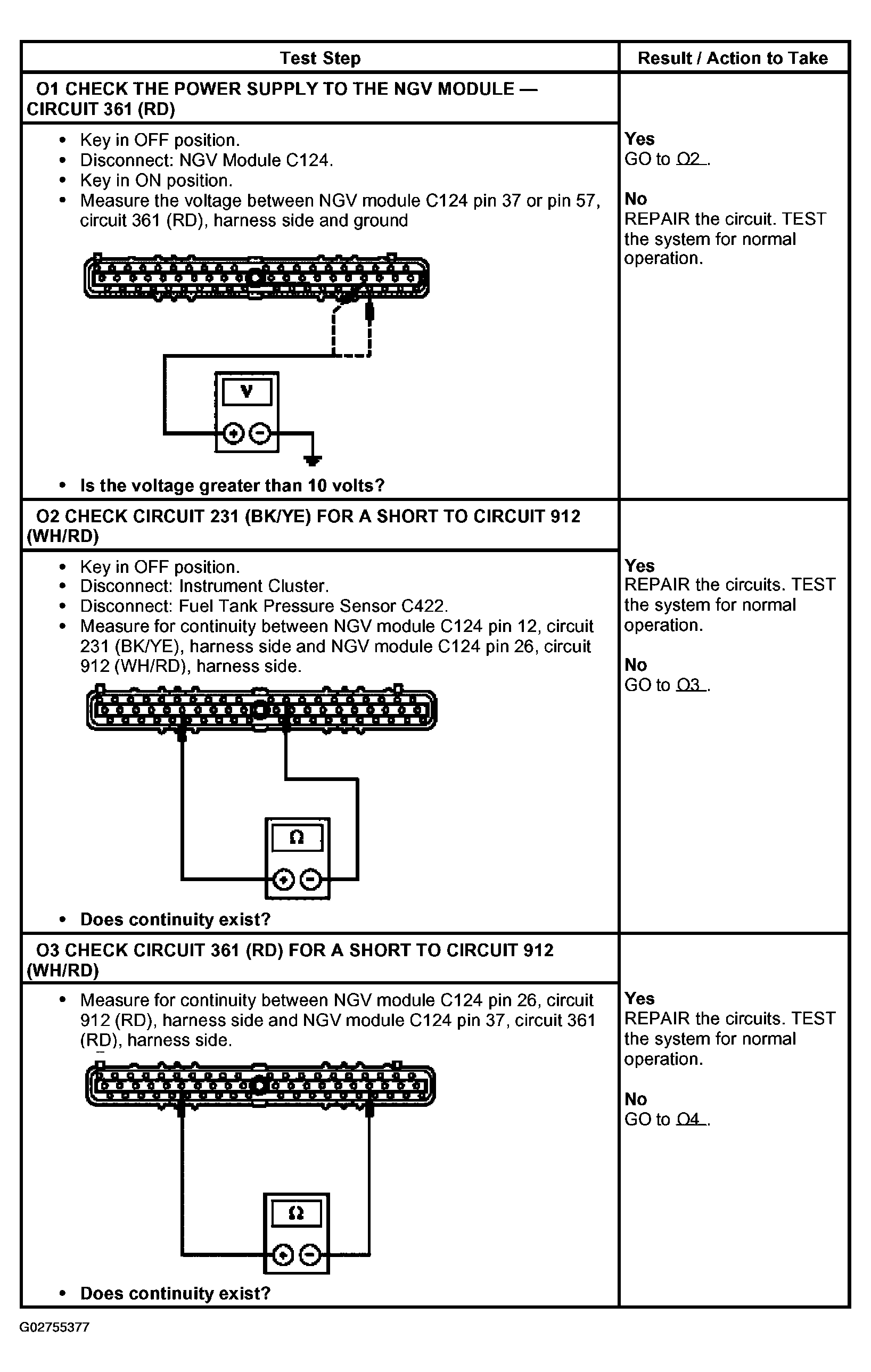

Fig 1: Pinpoint Test O: Instrument Cluster Is Inoperative/Erratic Step (O1-O3)

Courtesy of FORD MOTOR CO.

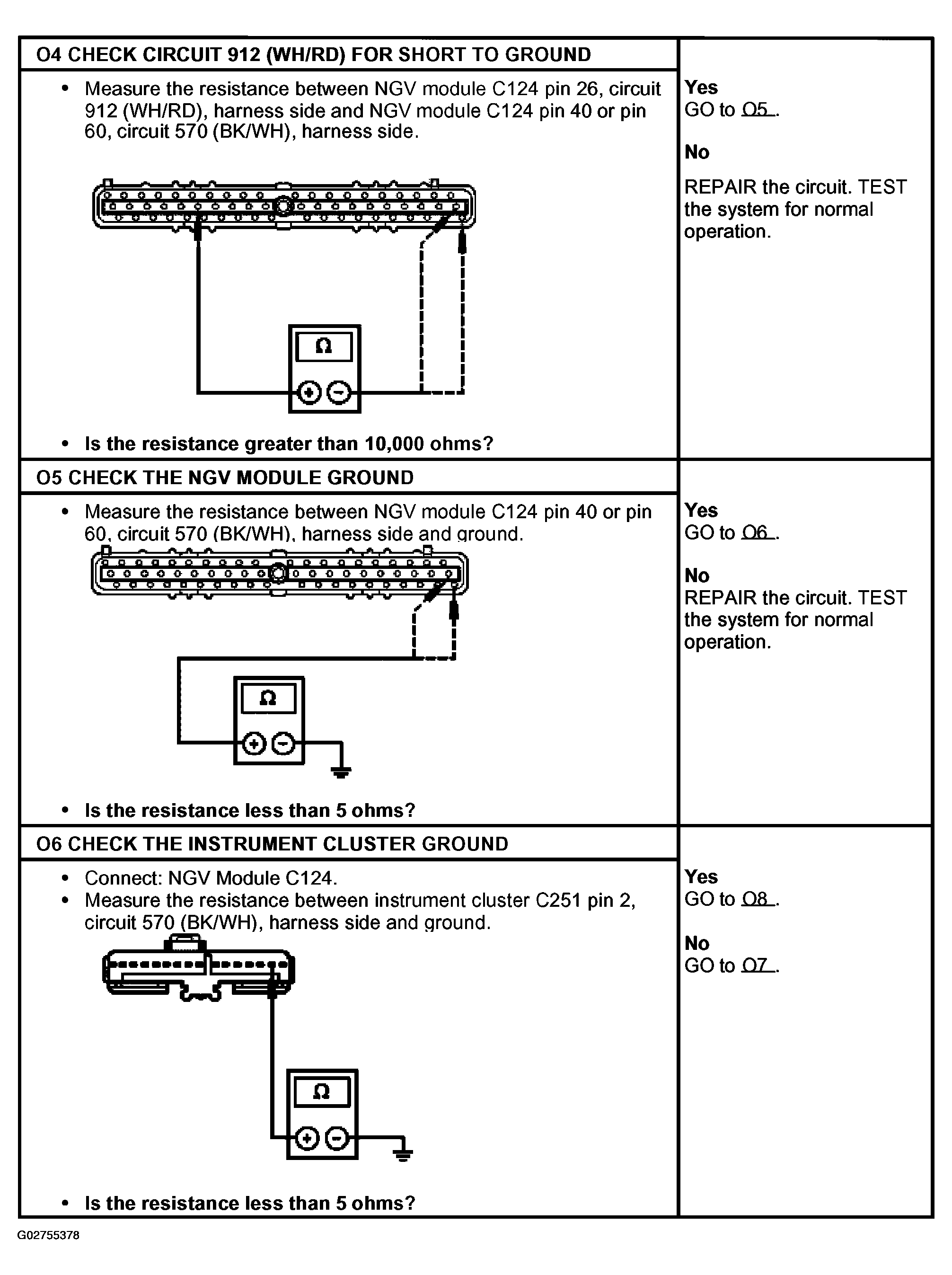

Fig 2: Pinpoint Test O: Instrument Cluster Is Inoperative/Erratic Step (O4-O6)

Courtesy of FORD MOTOR CO.

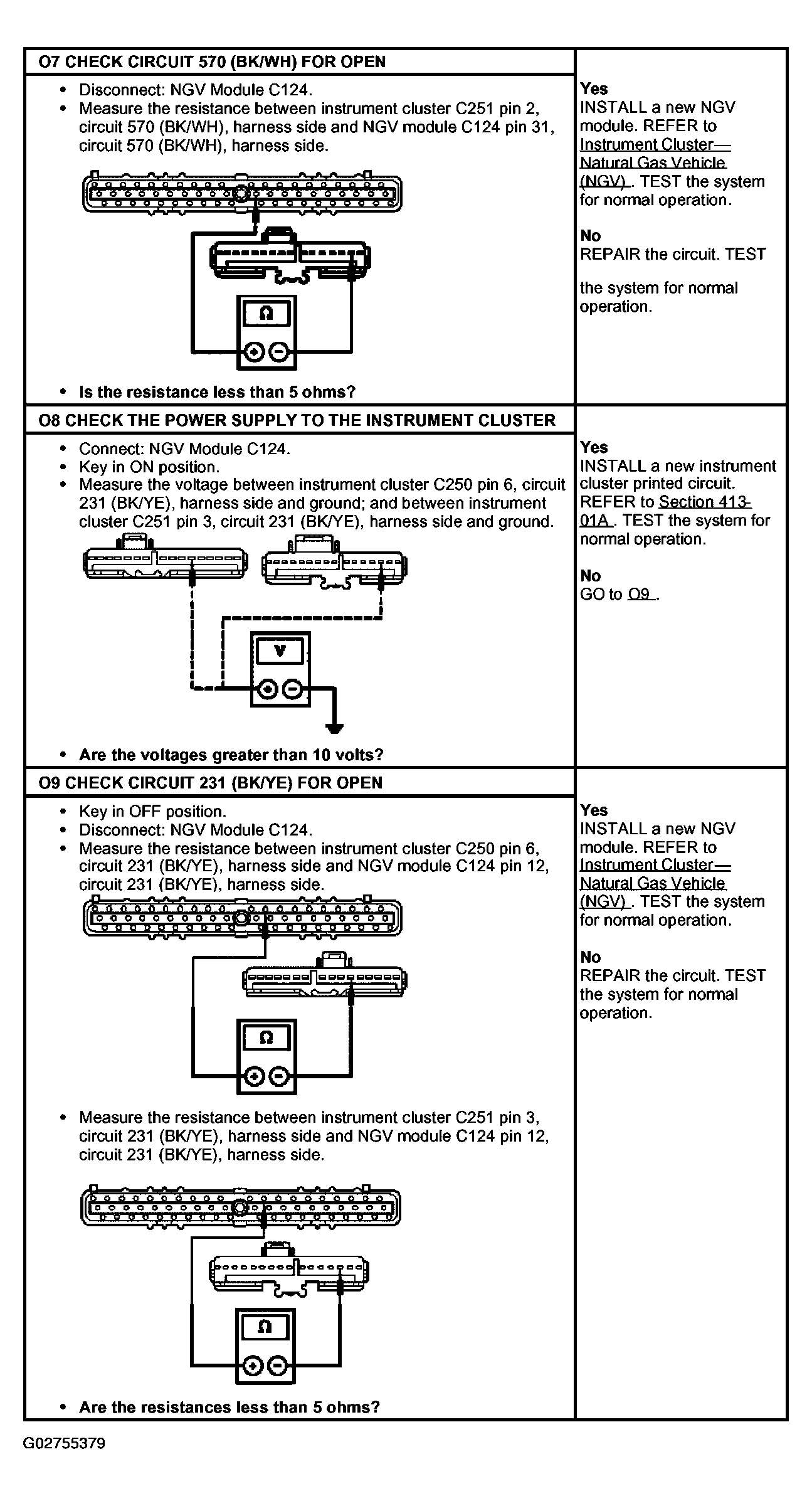

Fig 3: Pinpoint Test O: Instrument Cluster Is Inoperative/Erratic Step (O7-O9)

Courtesy of FORD MOTOR CO.
