Pinpoint Test A: No Communication With The NGV Module

CAUTION: Use correct probe adapter(s) when making measurements. Failure to use correct probe adapter(s) may damage the connector.

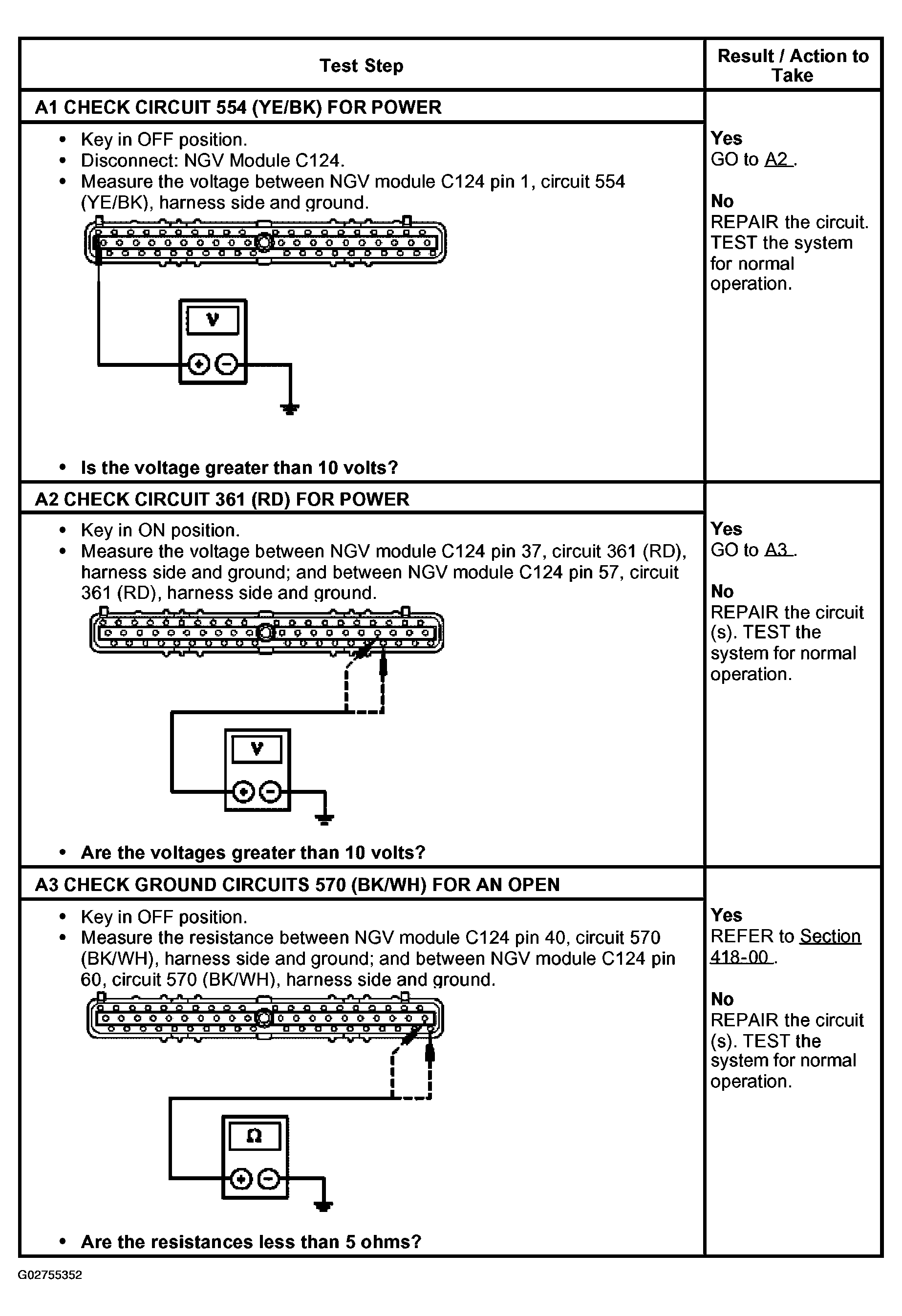

Fig 1: Pinpoint Test A: No Communication With NGV Module Step (A1-A3)
G02755352Courtesy of FORD MOTOR CO.
