Inspection and Verification

Verify the customer concern by operating the system.
Visually inspect for obvious signs of mechanical or electrical damage.

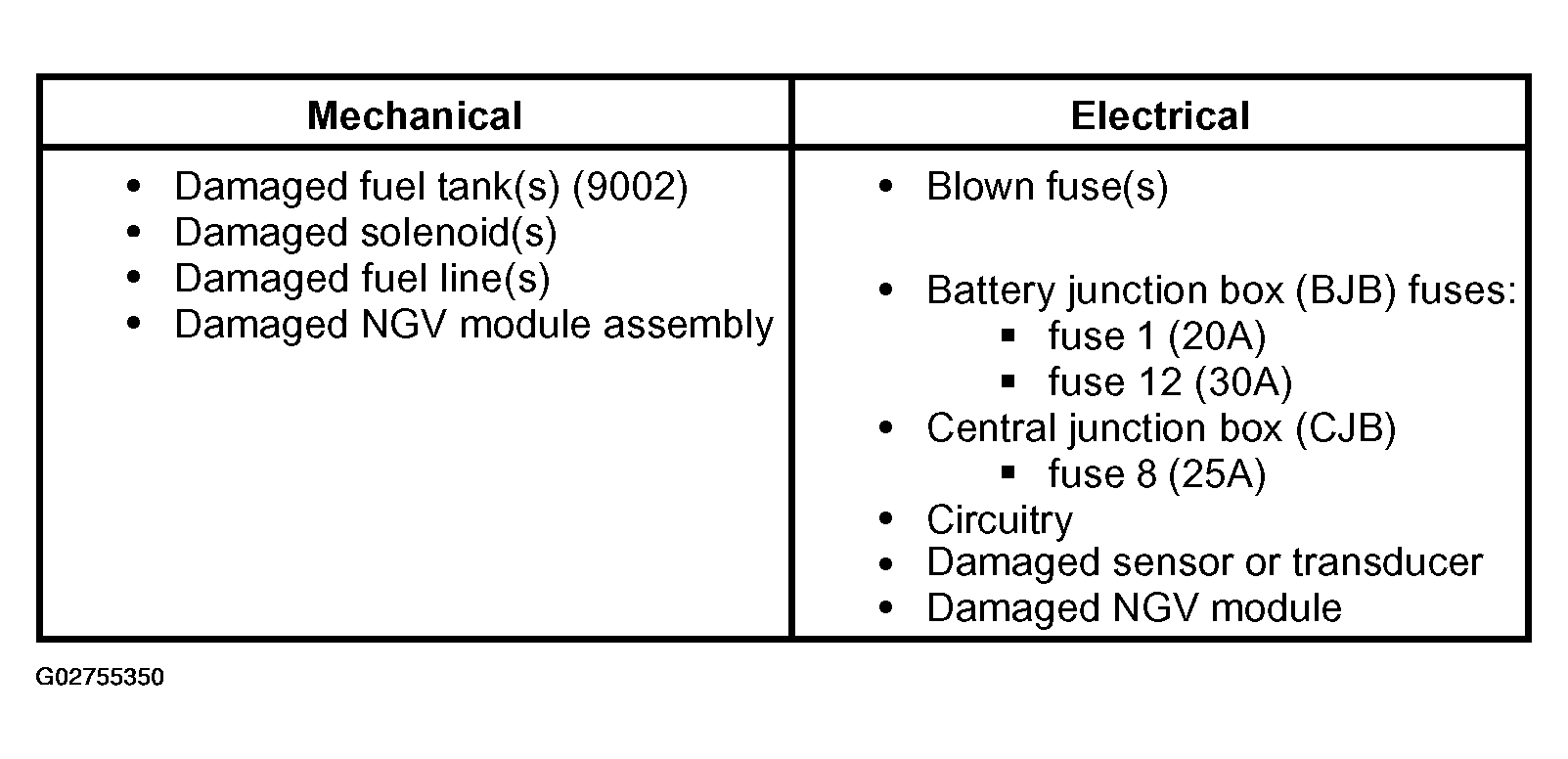

Fig 1: Mechanical Or Electrical Damage Visual Inspection Chart
Courtesy of FORD MOTOR CO.
If the concern remains after the inspection, connect the diagnostic tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
- check that the program card is correctly installed.
- check the connections to the vehicle
- check the ignition switch position
If the diagnostic tool still does not communicate with the vehicle, refer to the diagnostic tool manual.
Carry out the DATA LINK DIAGNOSTIC TEST. If the diagnostic tool responds with:
- CKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to MODULE COMMUNICATIONS NETWORK for 2003 models and MODULE COMMUNICATIONS NETWORK for 2004 models.
- NO RESP/NOT EQUIP for NGV module, go to PINPOINT TEST A .
SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs), erase the continuous DTCs and carry out the self-test diagnostics for the NGV module.
If the DTCs retrieved are related to the concern, go to the NGV MODULE DIAGNOSTIC TROUBLE CODE (DTC) INDEX to continue diagnostics.
If no DTCs related to the concern are retrieved, proceed to the Symptom Chart to continue diagnostics.
