Switch - Message Center: Removal

  1. Remove the instrument cluster finish panel. Refer to INSTRUMENT PANEL AND CONSOLE .
    2. NOTE: The illumination bulbs are replaceable.

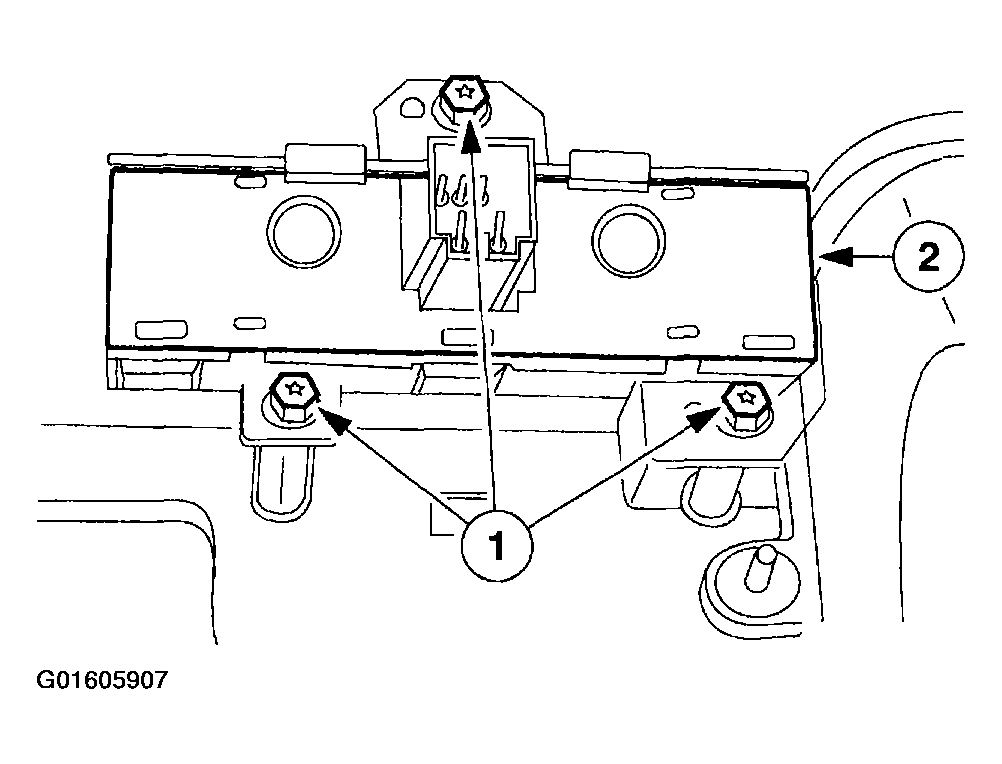

    Fig 1: Removing Screws
    G01605907Courtesy of FORD MOTOR CO.
  2. Remove the message center switch.
    1. Remove the screws.
    2. Remove the message center switch.
    • Install new illumination bulbs as necessary.
