Pinpoint Test M: The Service Engine Soon Indicator Is Inoperative

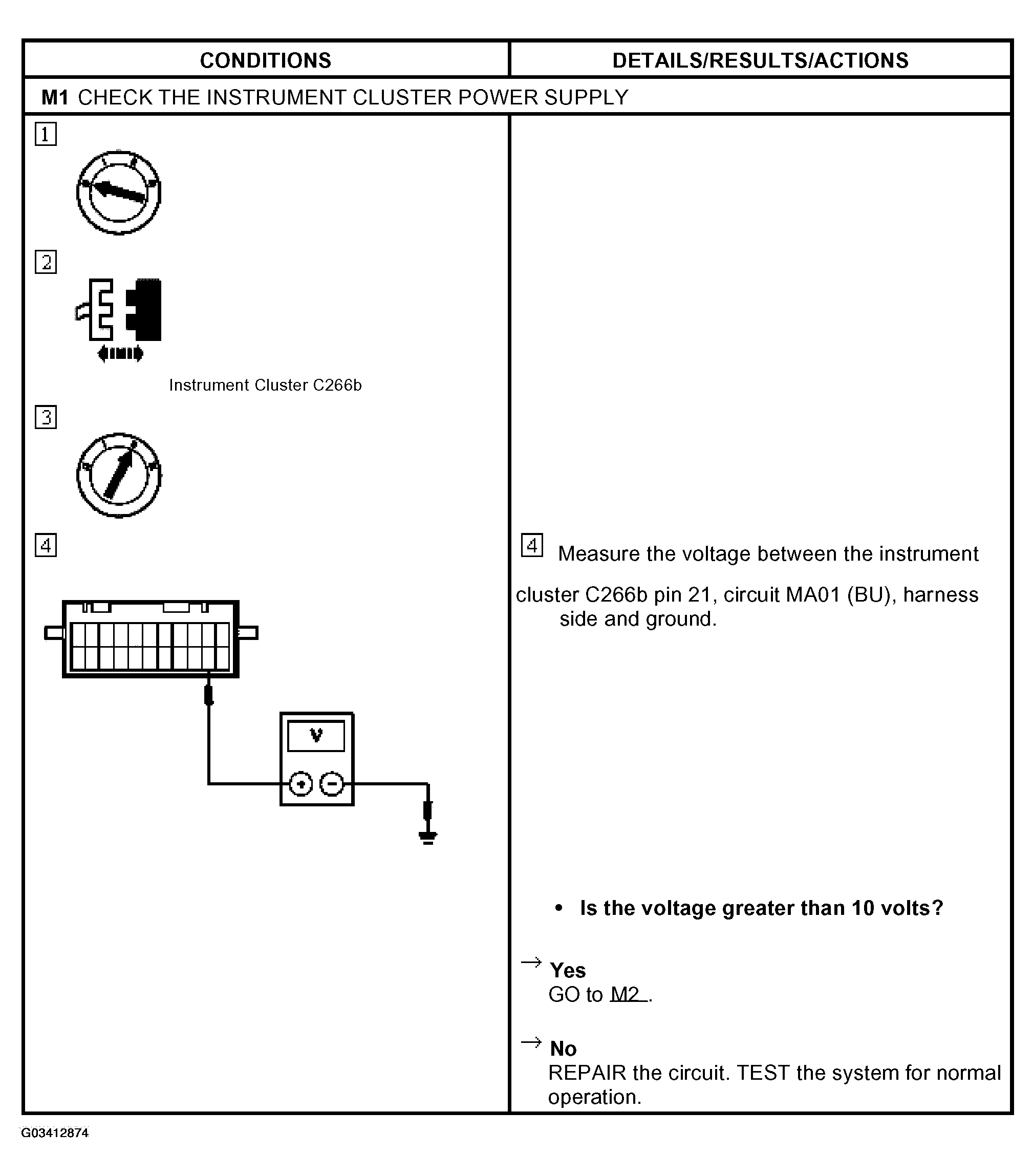

Fig 1: Pinpoint Test M: Service Engine Soon Indicator Is Inoperative (M1)
G03412874Courtesy of FORD MOTOR CO.

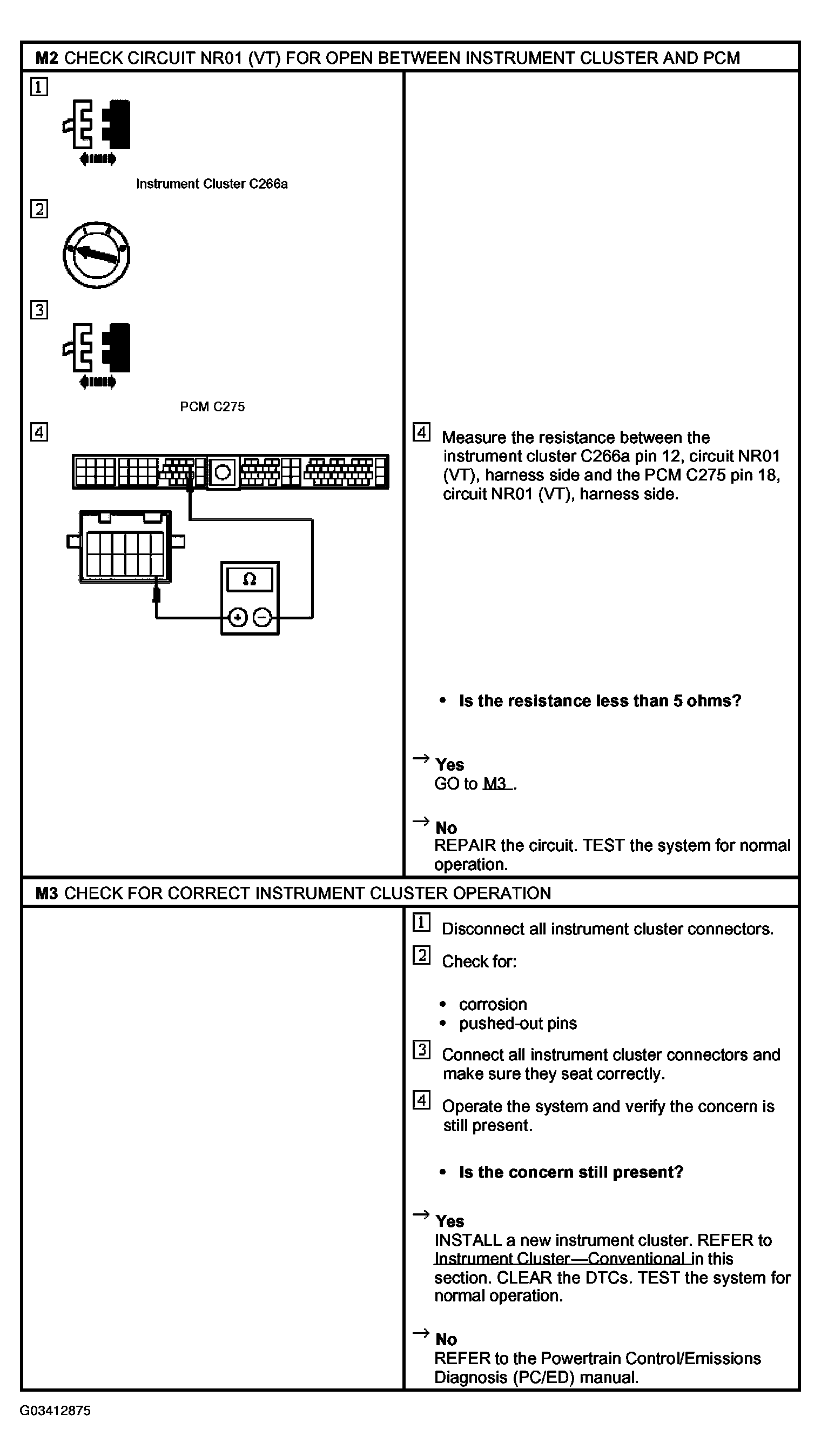

Fig 2: Pinpoint Test M: Service Engine Soon Indicator Is Inoperative (M2-M3)
G03412875Courtesy of FORD MOTOR CO.
