Pinpoint Test H: The Charge System Warning Indicator Is Never On

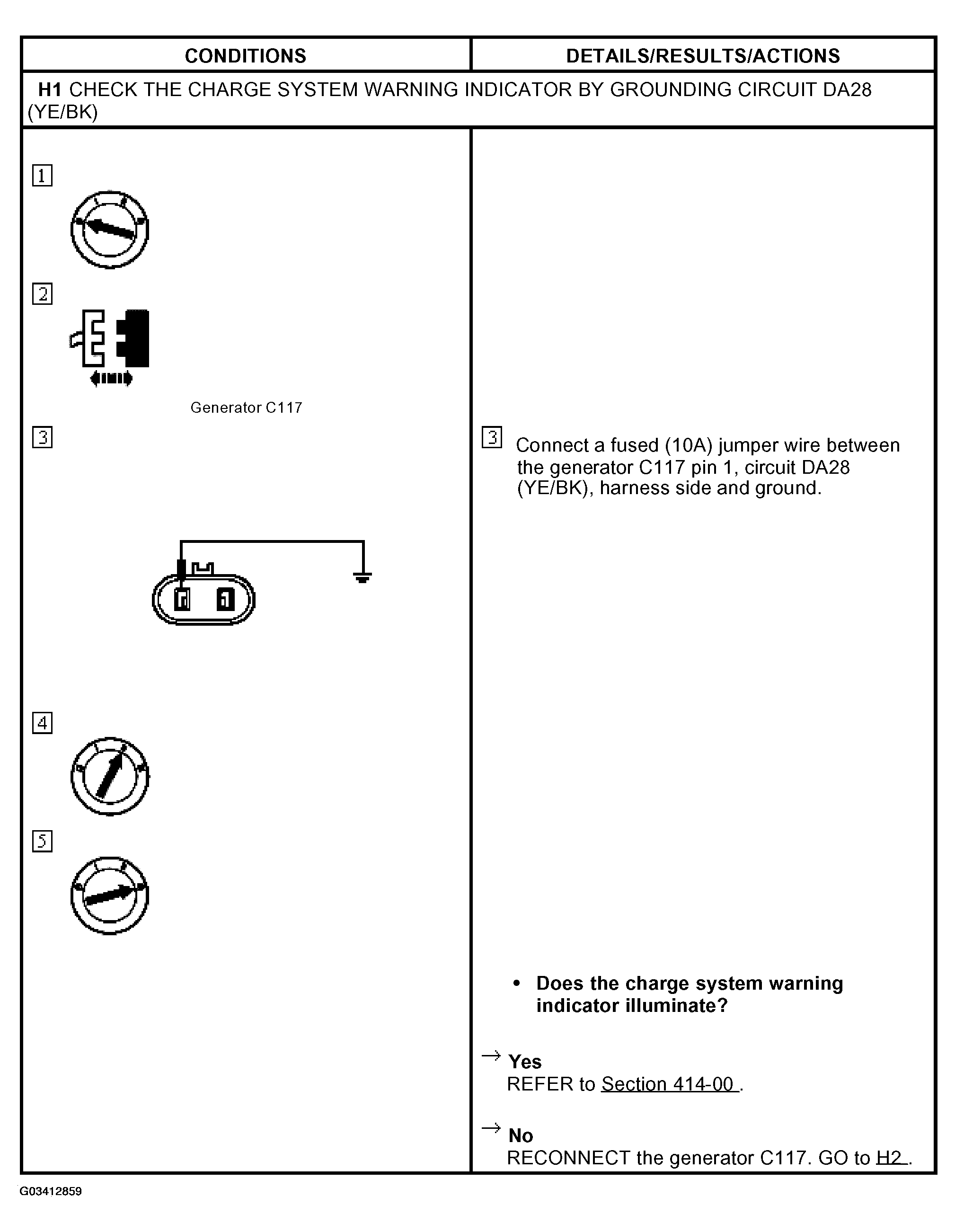

Fig 1: Pinpoint Test H: Charge System Warning Indicator Is Never On (H1)

Courtesy of FORD MOTOR CO.

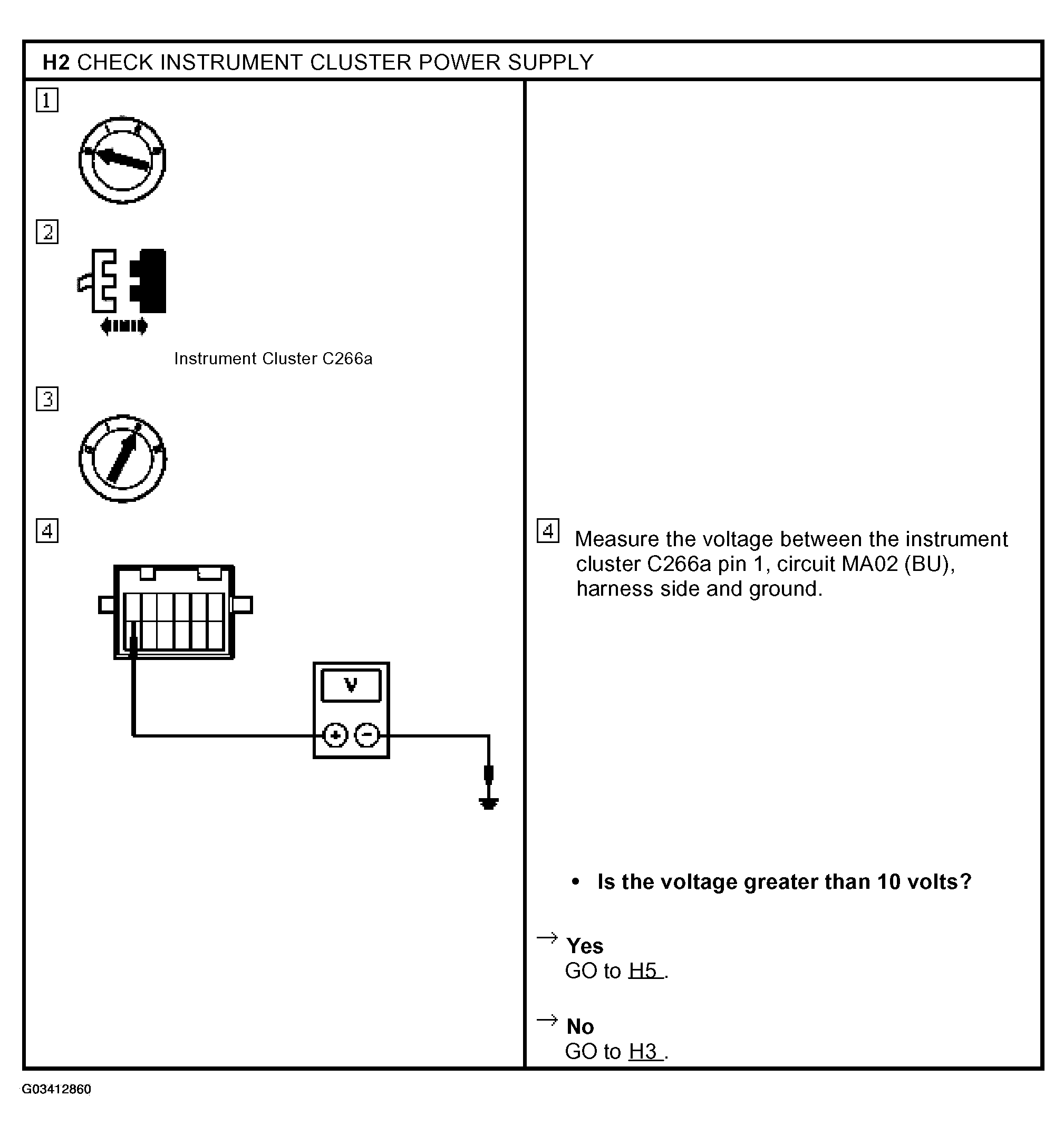

Fig 2: Pinpoint Test H: Charge System Warning Indicator Is Never On (H2)

Courtesy of FORD MOTOR CO.

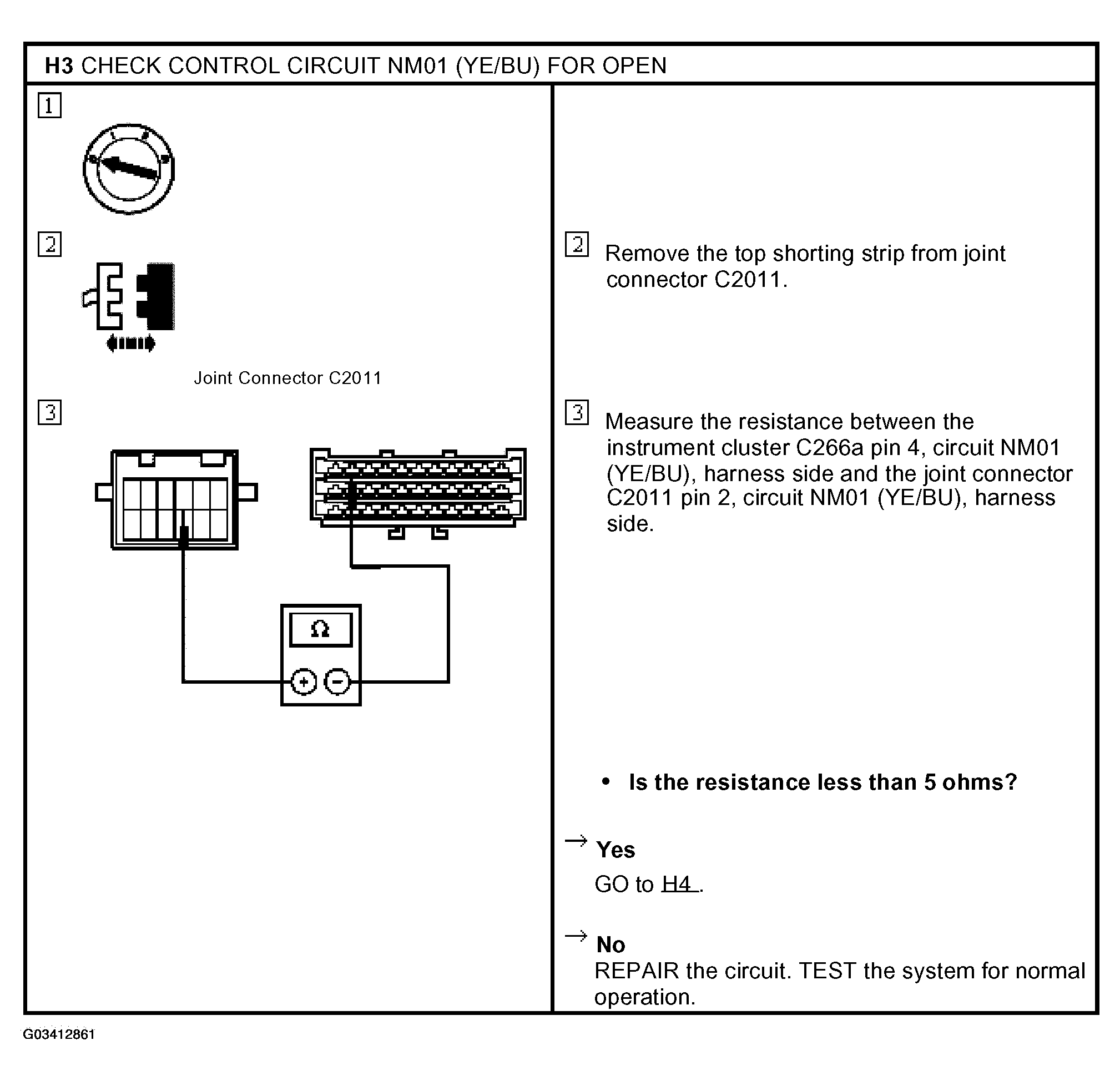

Fig 3: Pinpoint Test H: Charge System Warning Indicator Is Never On (H3)

Courtesy of FORD MOTOR CO.

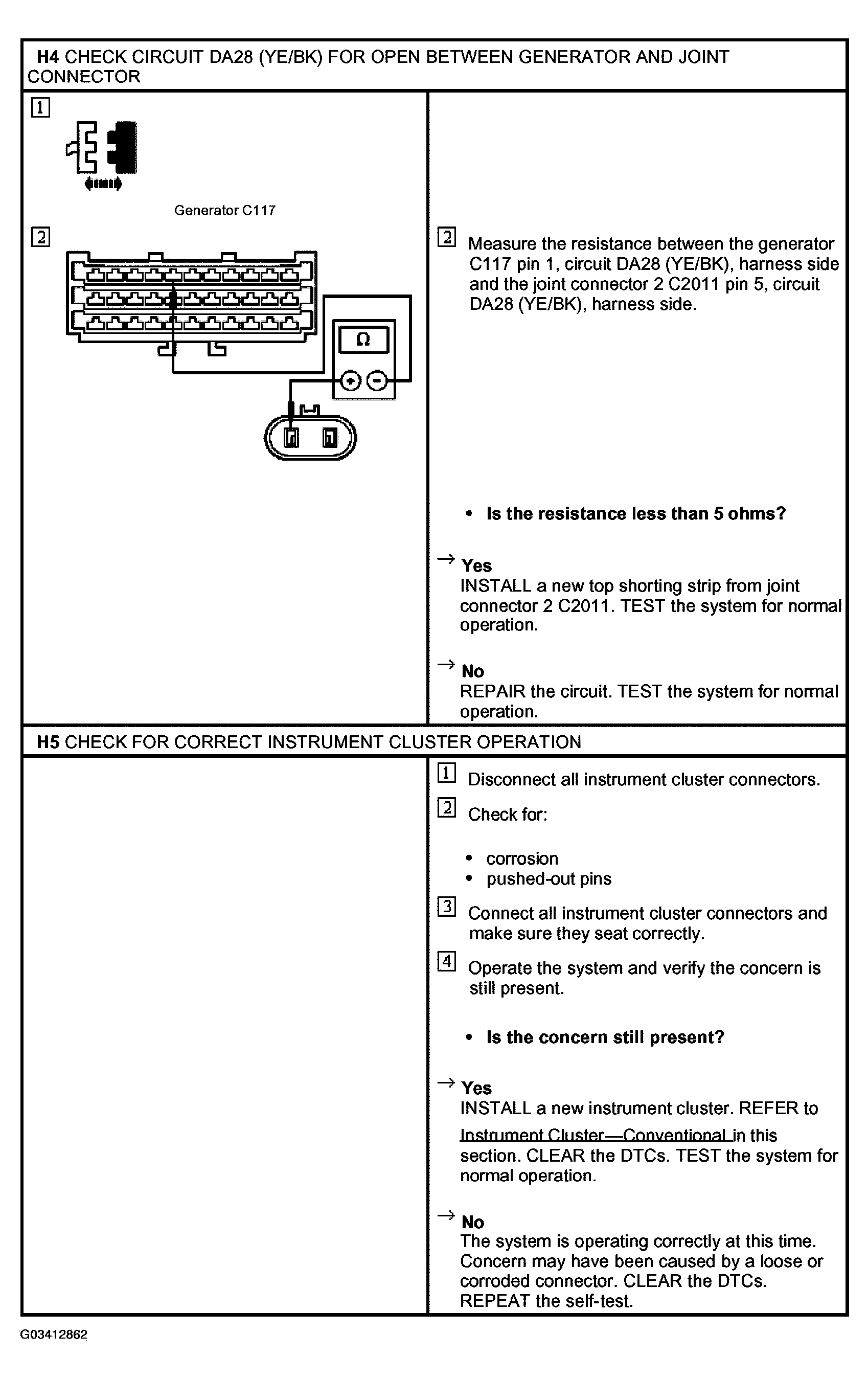

Fig 4: Pinpoint Test H: Charge System Warning Indicator Is Never On (H4-H5)

Courtesy of FORD MOTOR CO.
