Pinpoint Test R: The Door Ajar Indicator Is Inoperative (Chime Is Operative)

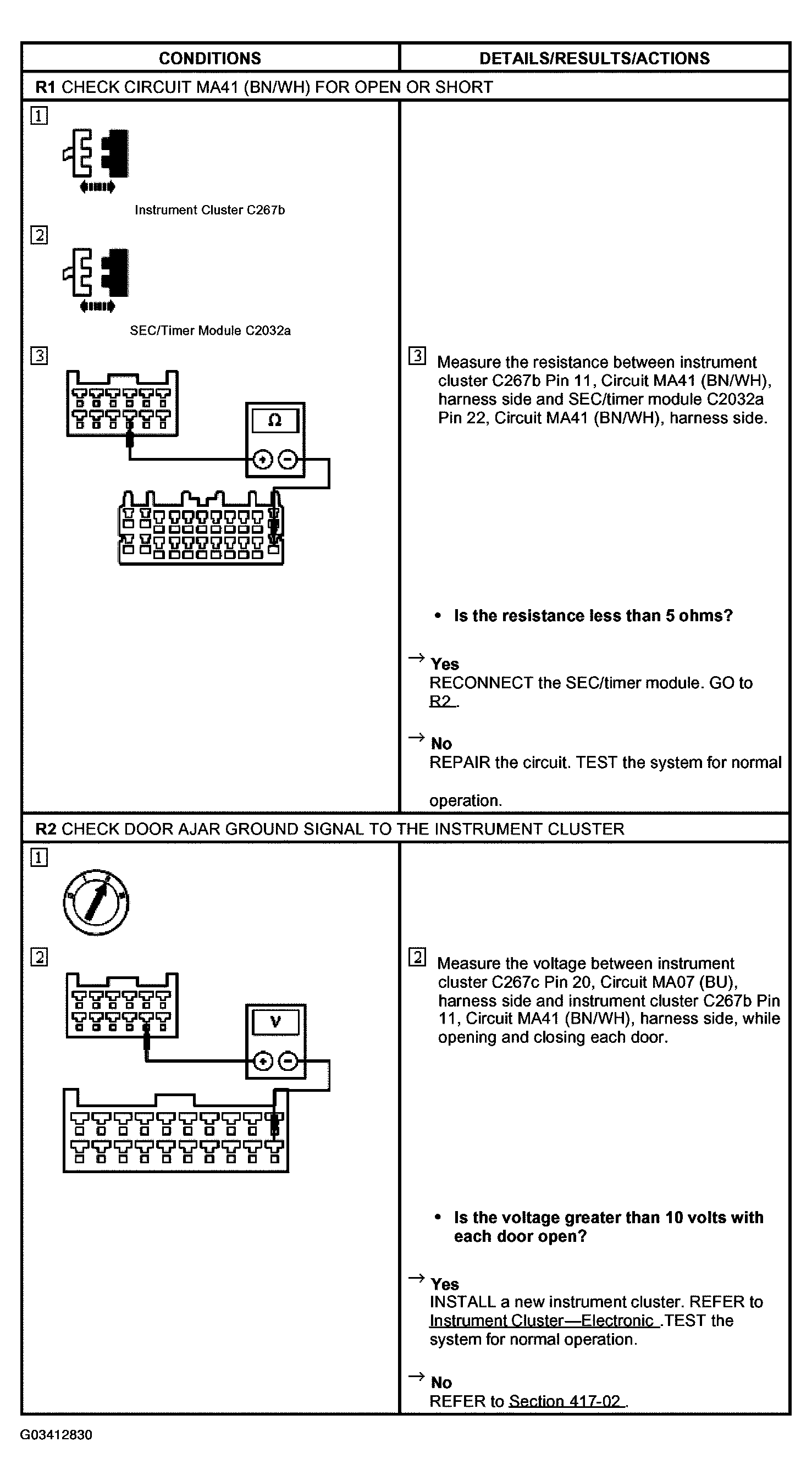

Fig 1: Pinpoint Test R: Door Ajar Indicator Is Inoperative (Chime Is Operative)

G03412830

Courtesy of FORD MOTOR CO.
