Pinpoint Test N: An Indicator Is Inoperative - Service Engine Soon

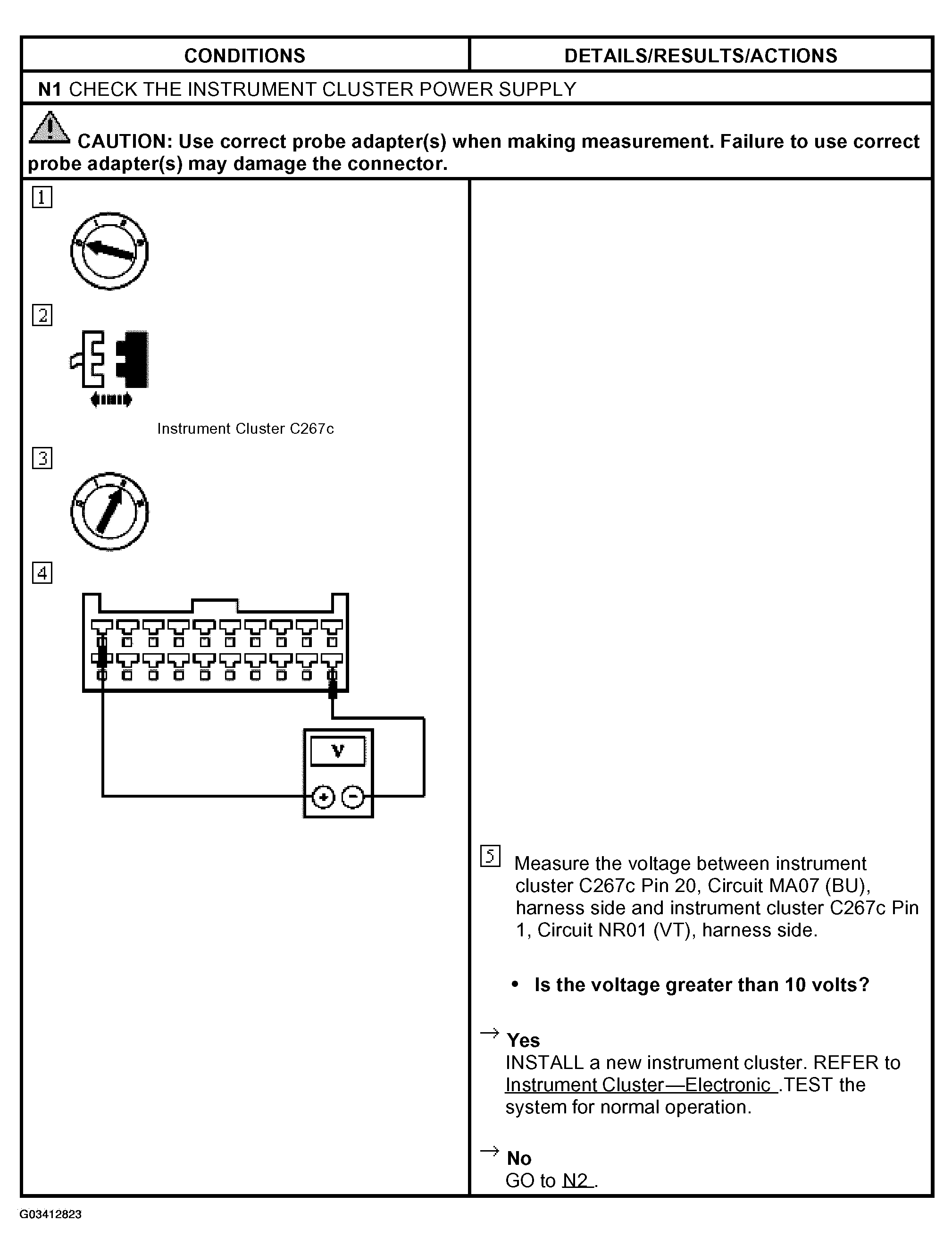

Fig 1: Pinpoint Test N: An Indicator Is Inoperative - Service Engine Soon (N1)
G03412823Courtesy of FORD MOTOR CO.

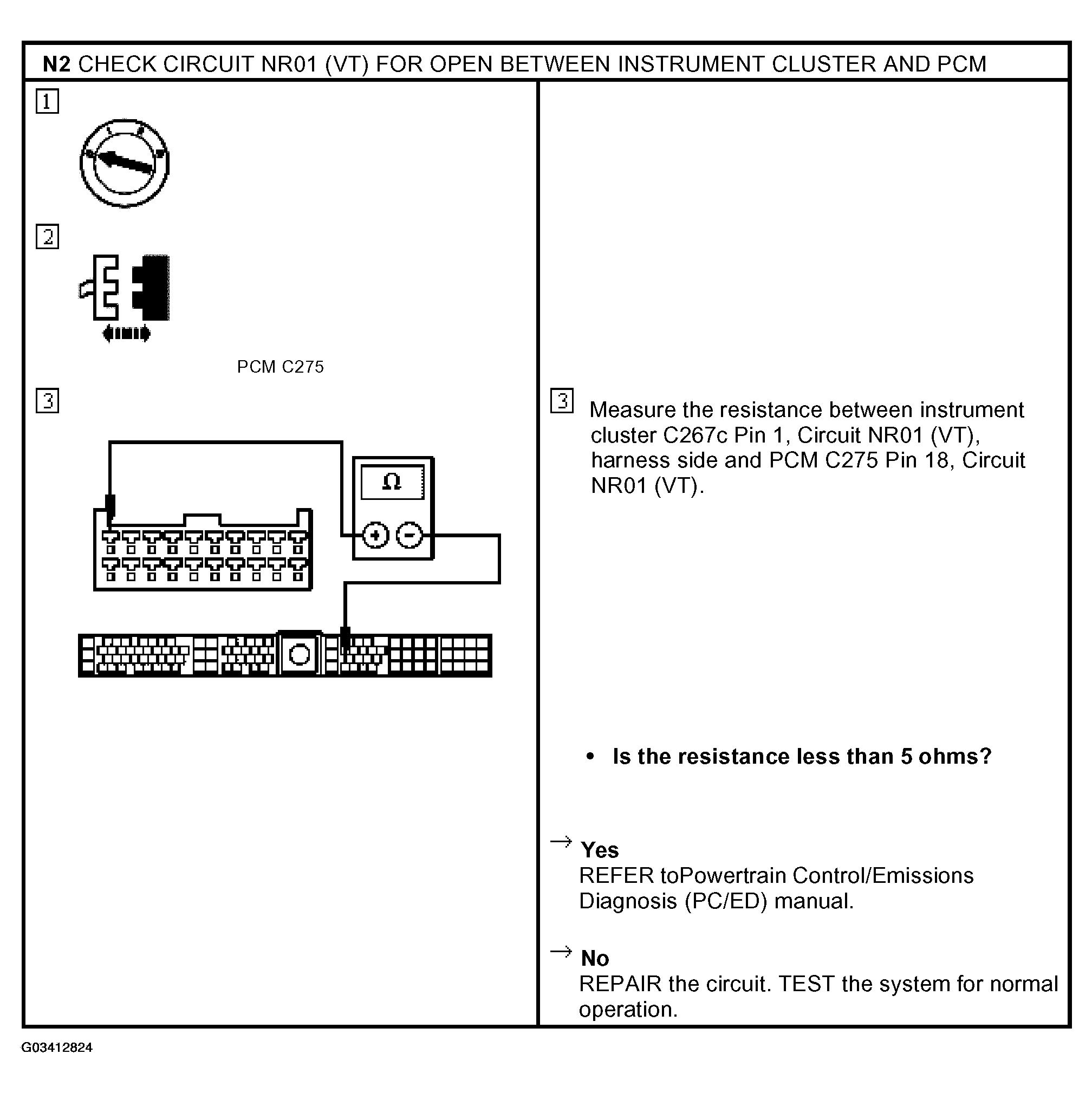

Fig 2: Pinpoint Test N: An Indicator Is Inoperative - Service Engine Soon (N2)
G03412824Courtesy of FORD MOTOR CO.
