Pinpoint Test M: An Indicator Is Inoperative - High Beam

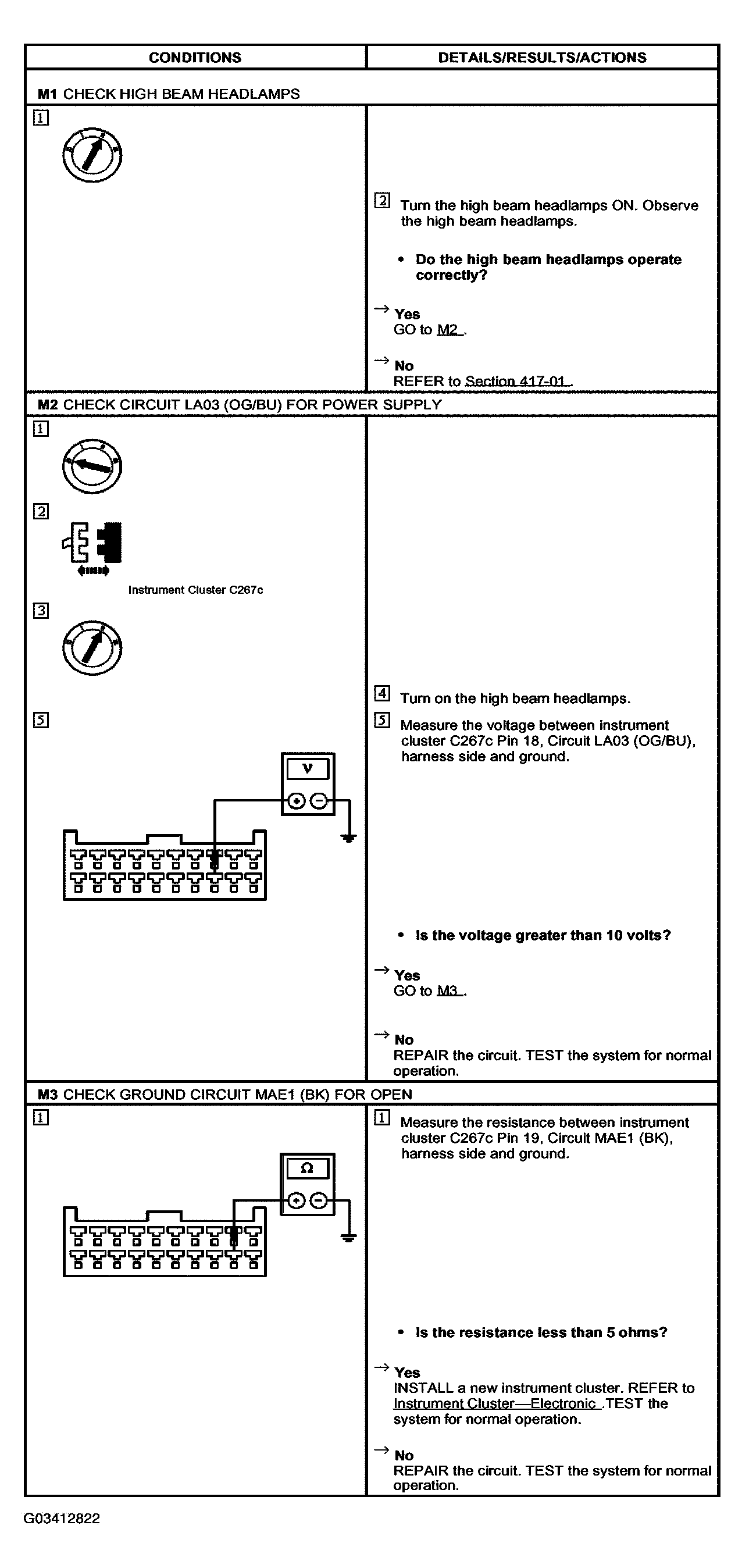

Fig 1: Pinpoint Test M: An Indicator Is Inoperative - High Beam

G03412822

Courtesy of FORD MOTOR CO.
