Home >> Mercury >> 2002 >> Villager Estate >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Cluster - Conventional >> Removal And Installation >> Warning Indicator Bulb >> Removal and Installation

Removal and Installation

  1. Remove the instrument cluster. Refer to INSTRUMENT CLUSTER - CONVENTIONAL  in this section.
  2. Remove the indicator socket and bulb.

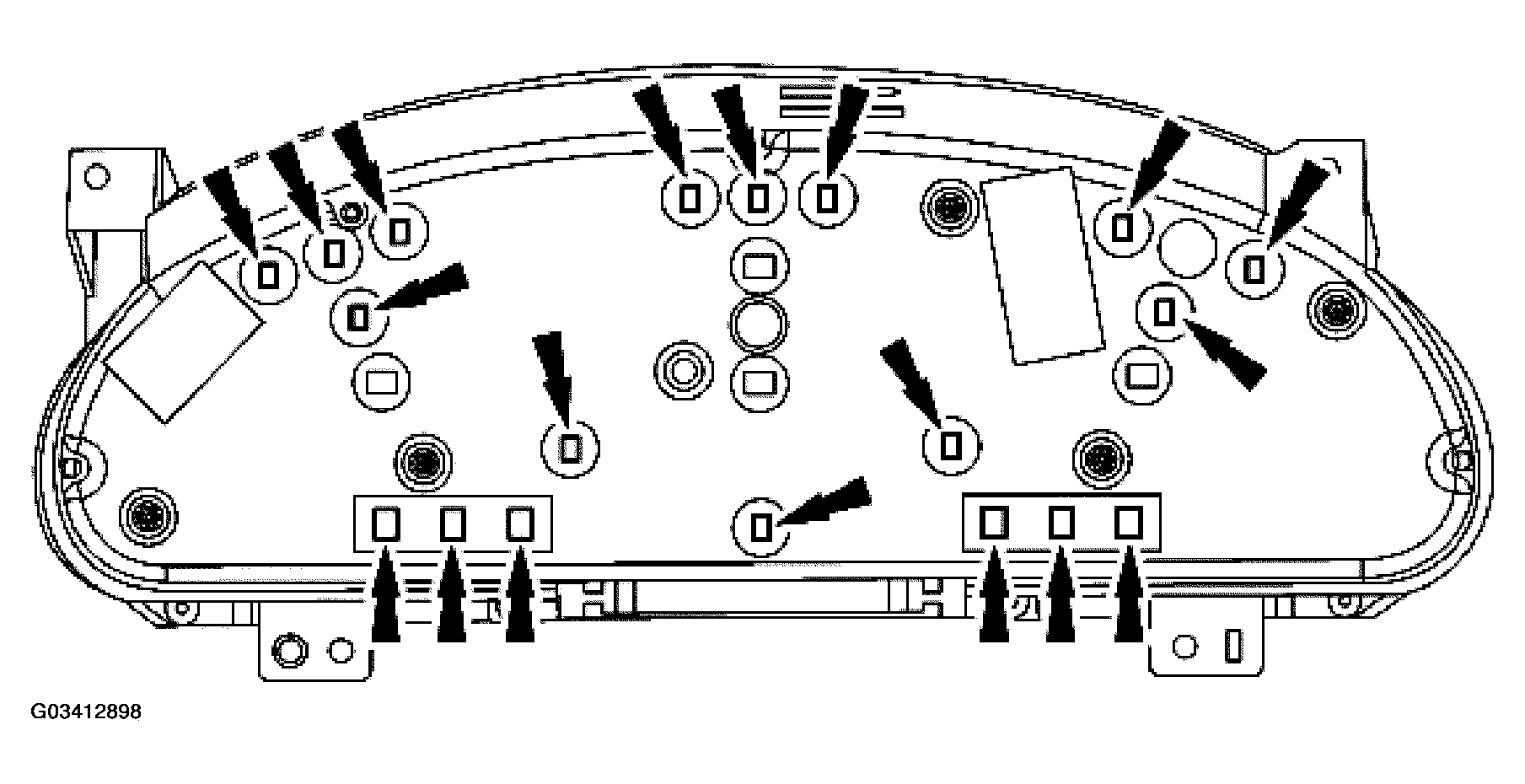

    Fig 1: Removing Indicator Socket And Bulb
    G03412898Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
