Removal and Installation

  1. Remove the instrument cluster. Refer to INSTRUMENT CLUSTER - CONVENTIONAL  in this section.
  2. Remove the screws and remove the instrument cluster lens.

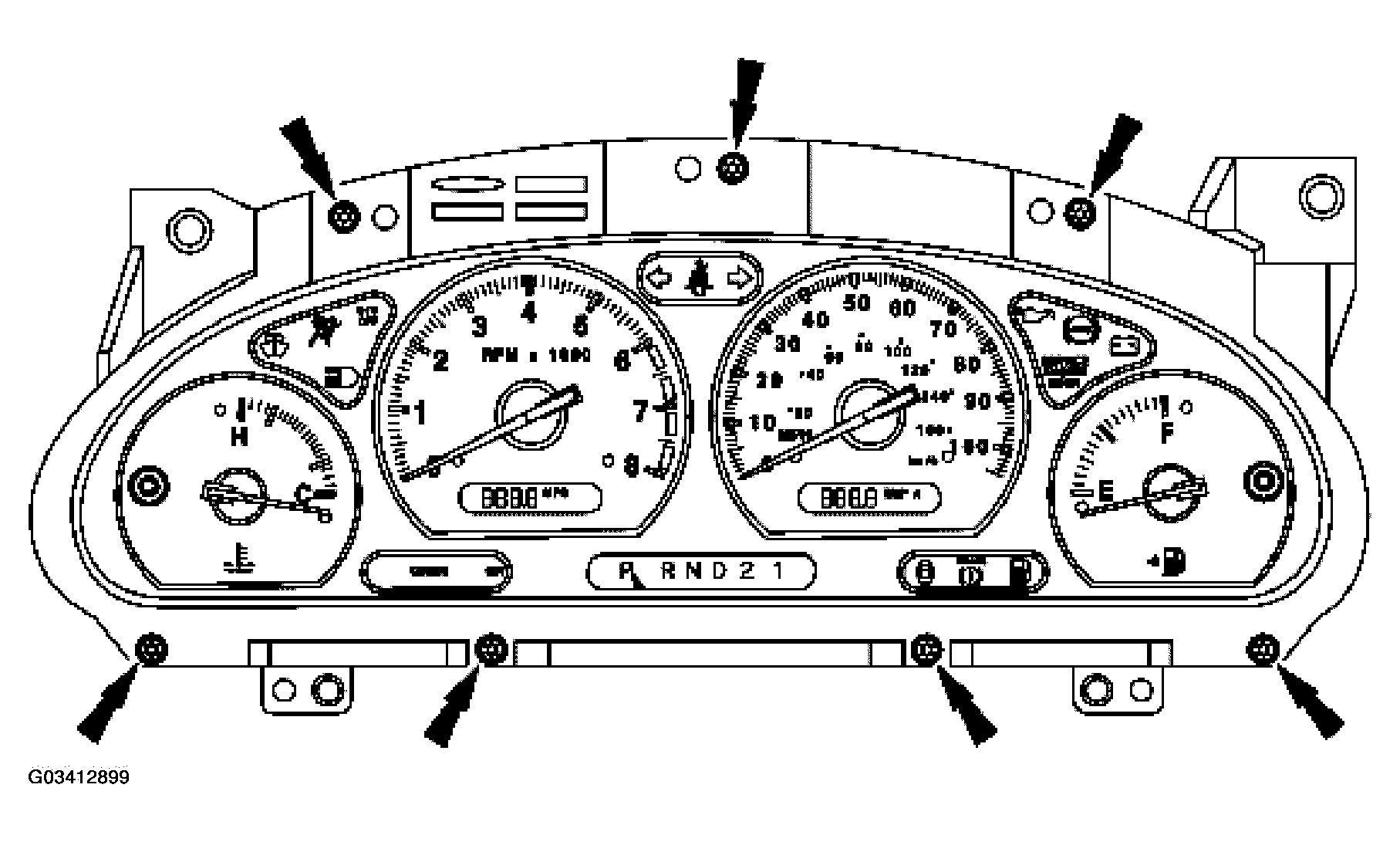

    Fig 1: Removing Screws And Instrument Cluster Lens
    G03412899Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
