Pinpoint Test T: The Door Ajar Indicator Is Inoperative (Chime Is Operative)

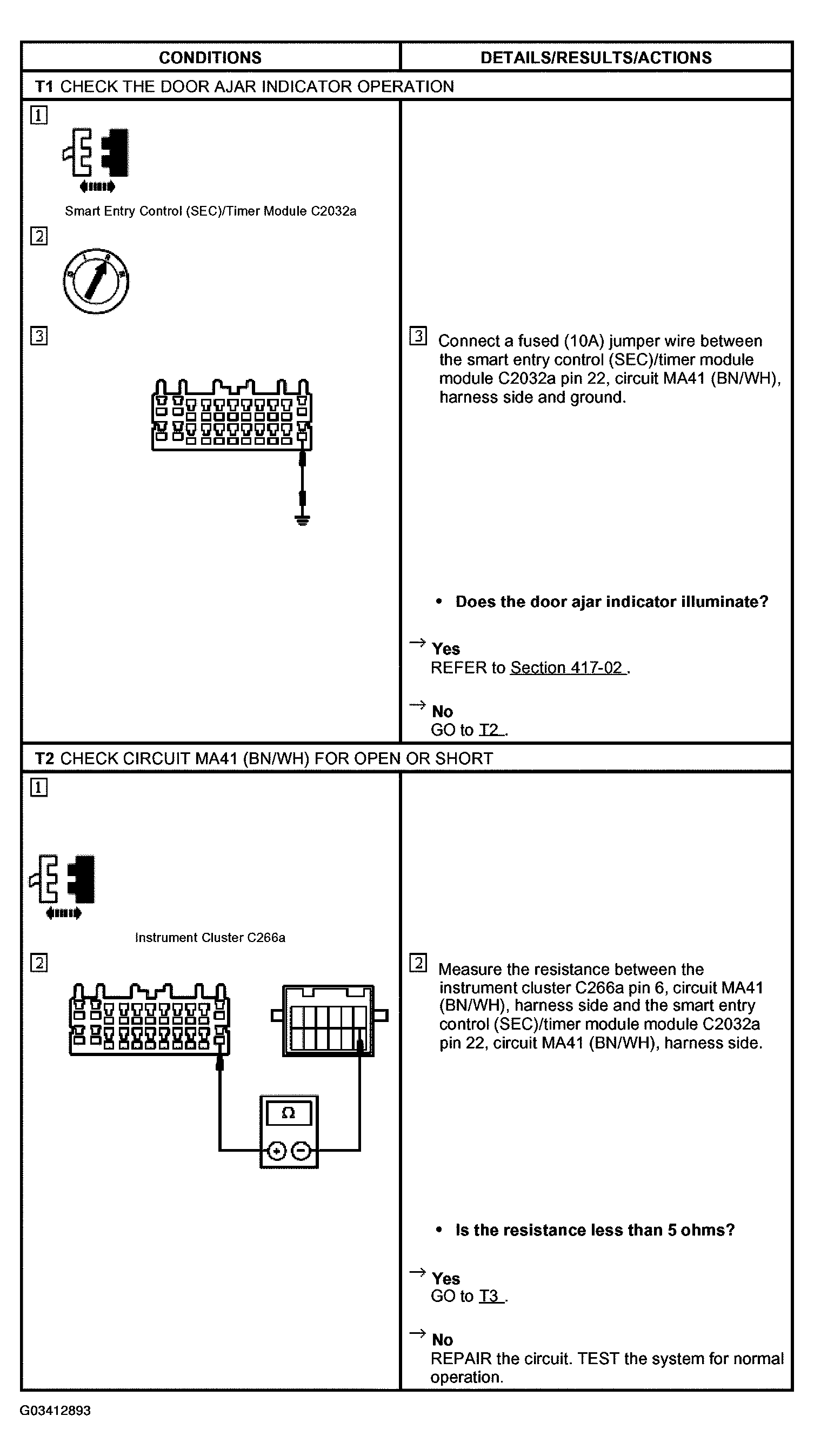

Fig 1: Pinpoint Test T: Door Ajar Indicator Is Inoperative (Chime Is Operative) (T1-T2)
G03412893Courtesy of FORD MOTOR CO.

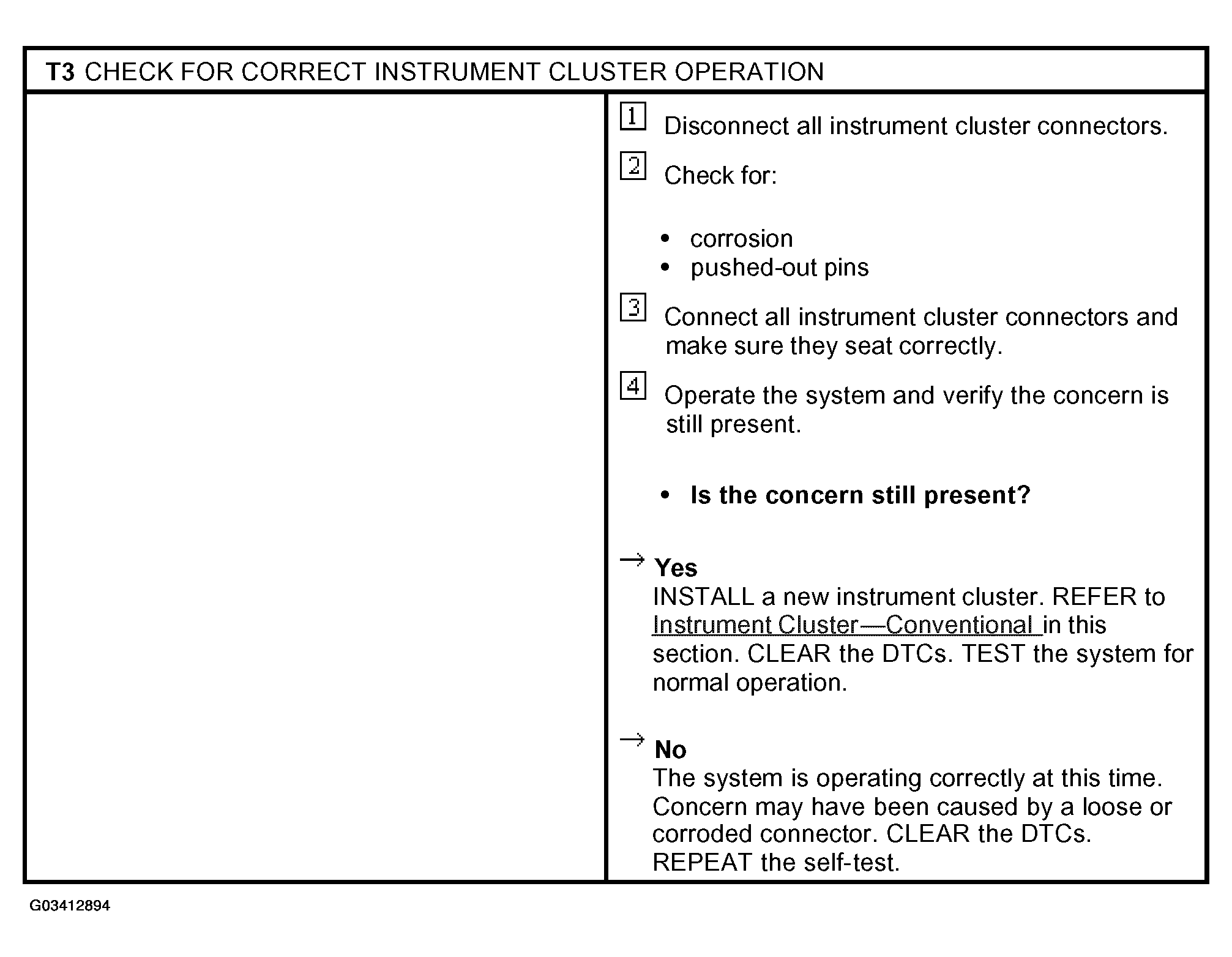

Fig 2: Pinpoint Test T: Door Ajar Indicator Is Inoperative (Chime Is Operative) (T3)
G03412894Courtesy of FORD MOTOR CO.
