Pinpoint Test S: The Speed Control Indicator Is Never On - Set Indicator

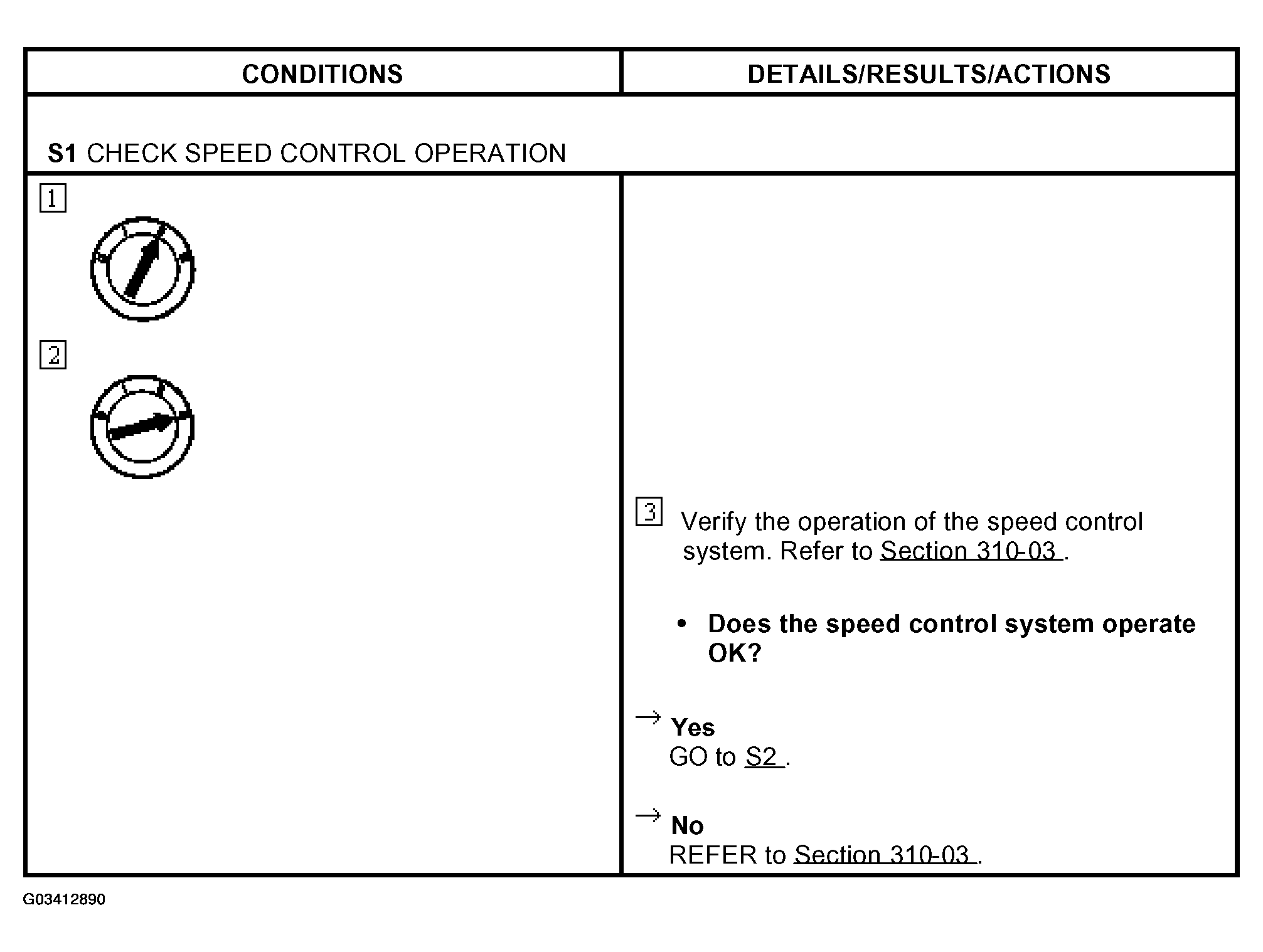

Fig 1: Pinpoint Test S: Speed Control Indicator Is Never On - Set Indicator (S1)

Courtesy of FORD MOTOR CO.

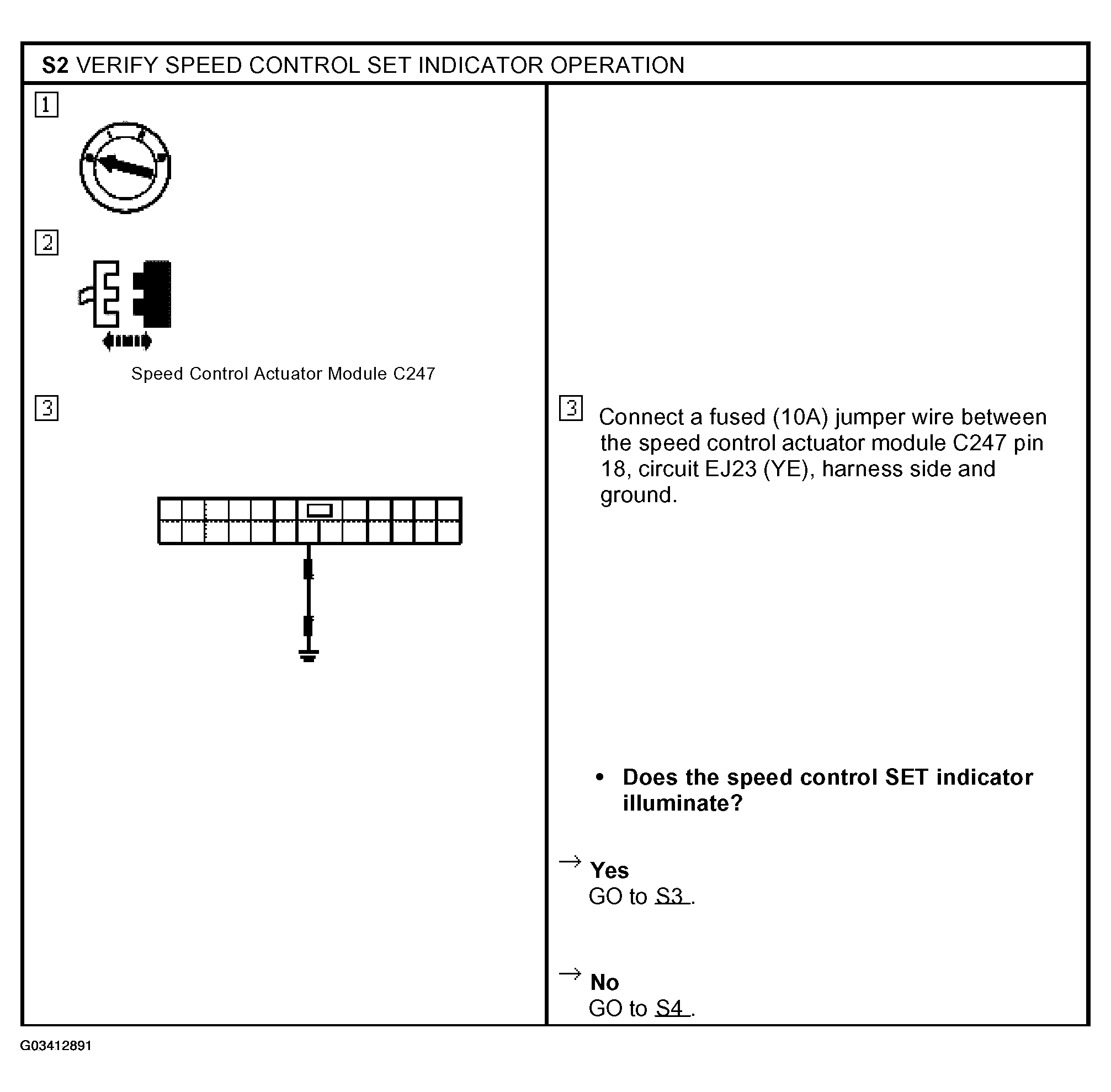

Fig 2: Pinpoint Test S: Speed Control Indicator Is Never On - Set Indicator (S2)

Courtesy of FORD MOTOR CO.

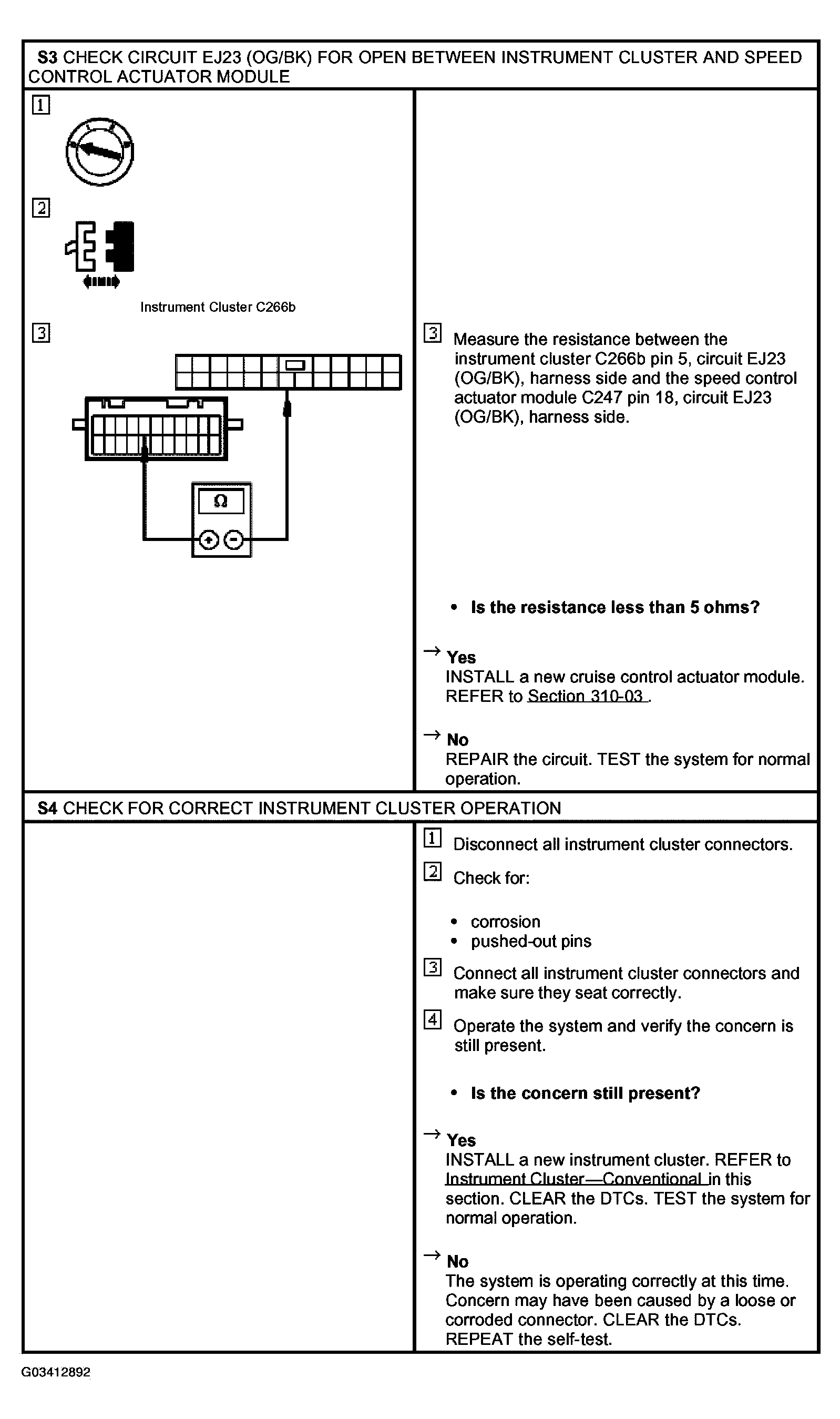

Fig 3: Pinpoint Test S: Speed Control Indicator Is Never On - Set Indicator (S3-S4)

Courtesy of FORD MOTOR CO.
