Pinpoint Test F: The Tachometer Is Inoperative

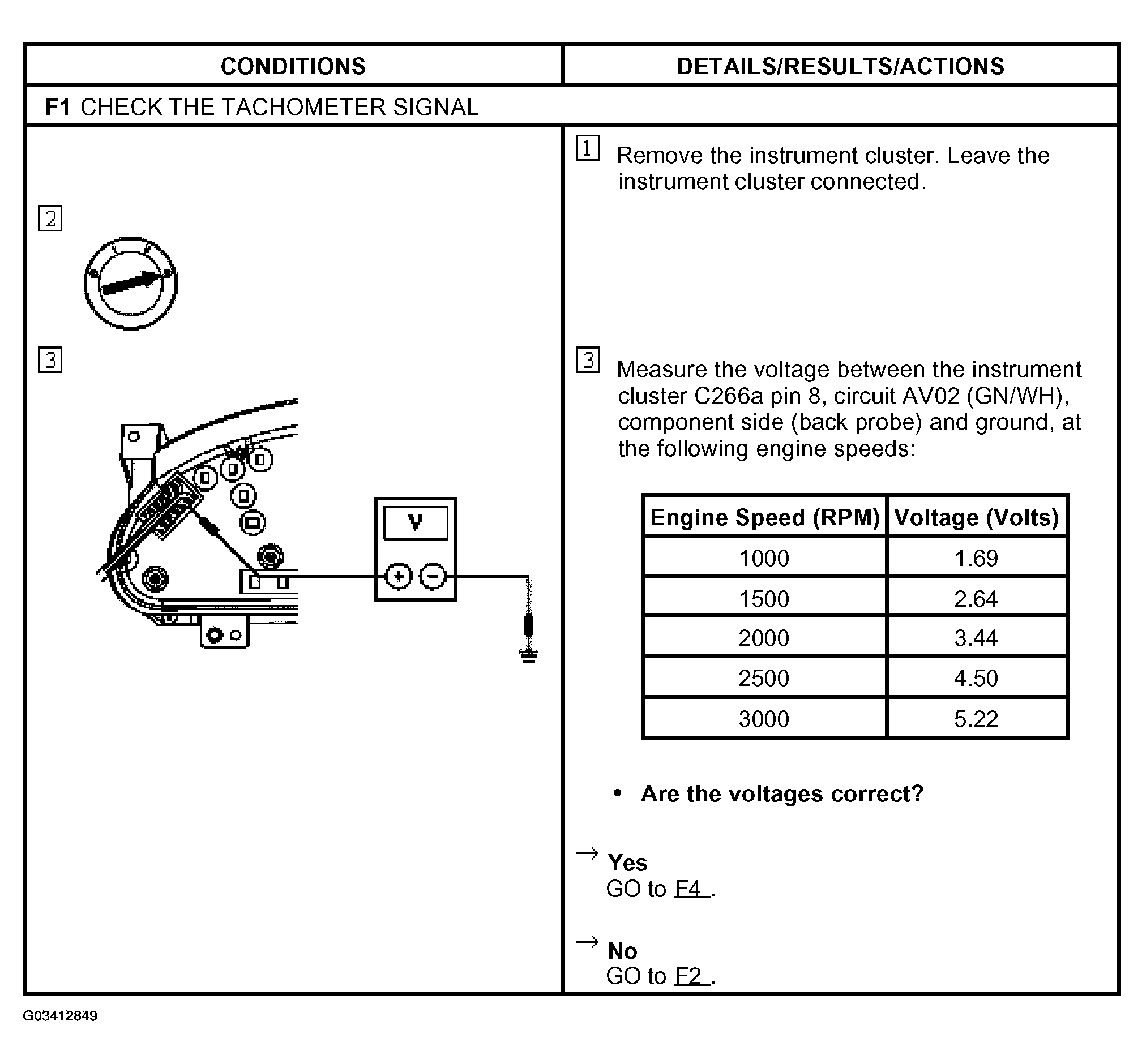

Fig 1: Pinpoint Test F: Tachometer Is Inoperative (F1)
G03412849Courtesy of FORD MOTOR CO.

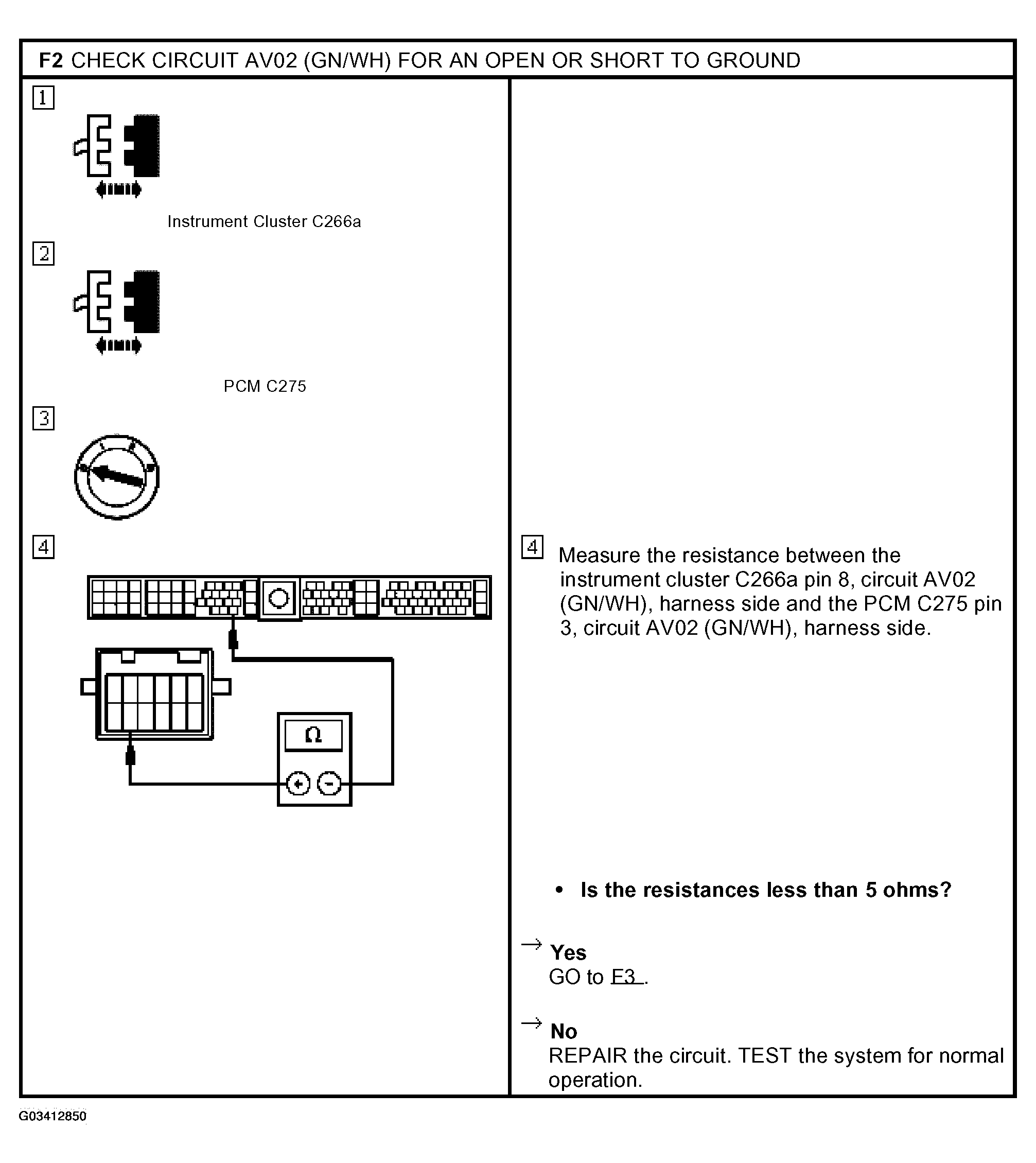

Fig 2: Pinpoint Test F: Tachometer Is Inoperative (F2)
G03412850Courtesy of FORD MOTOR CO.

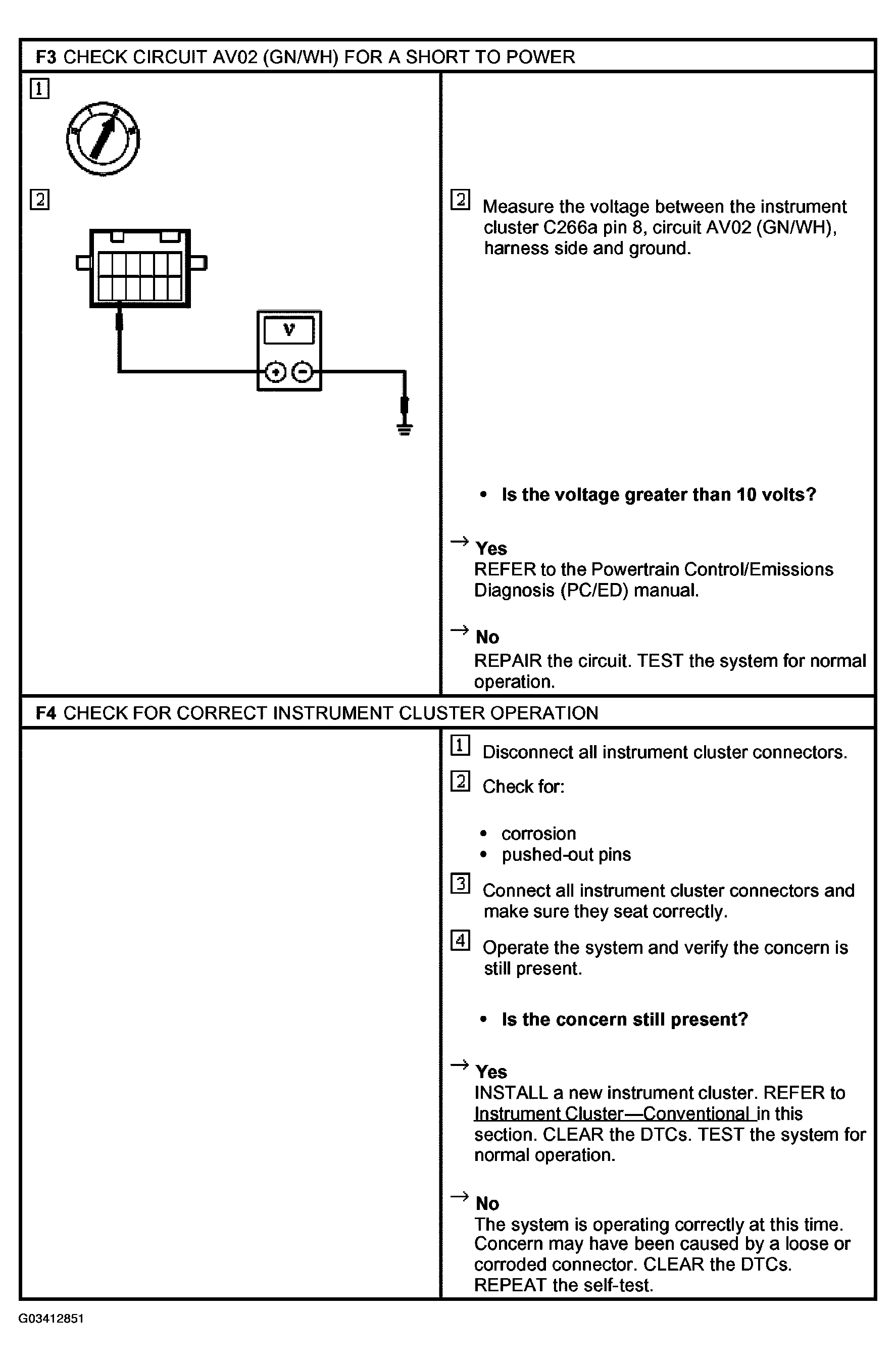

Fig 3: Pinpoint Test F: Tachometer Is Inoperative (F3-F4)
G03412851Courtesy of FORD MOTOR CO.
