Pinpoint Test E: The Speedometer/Odometer Is Inoperative

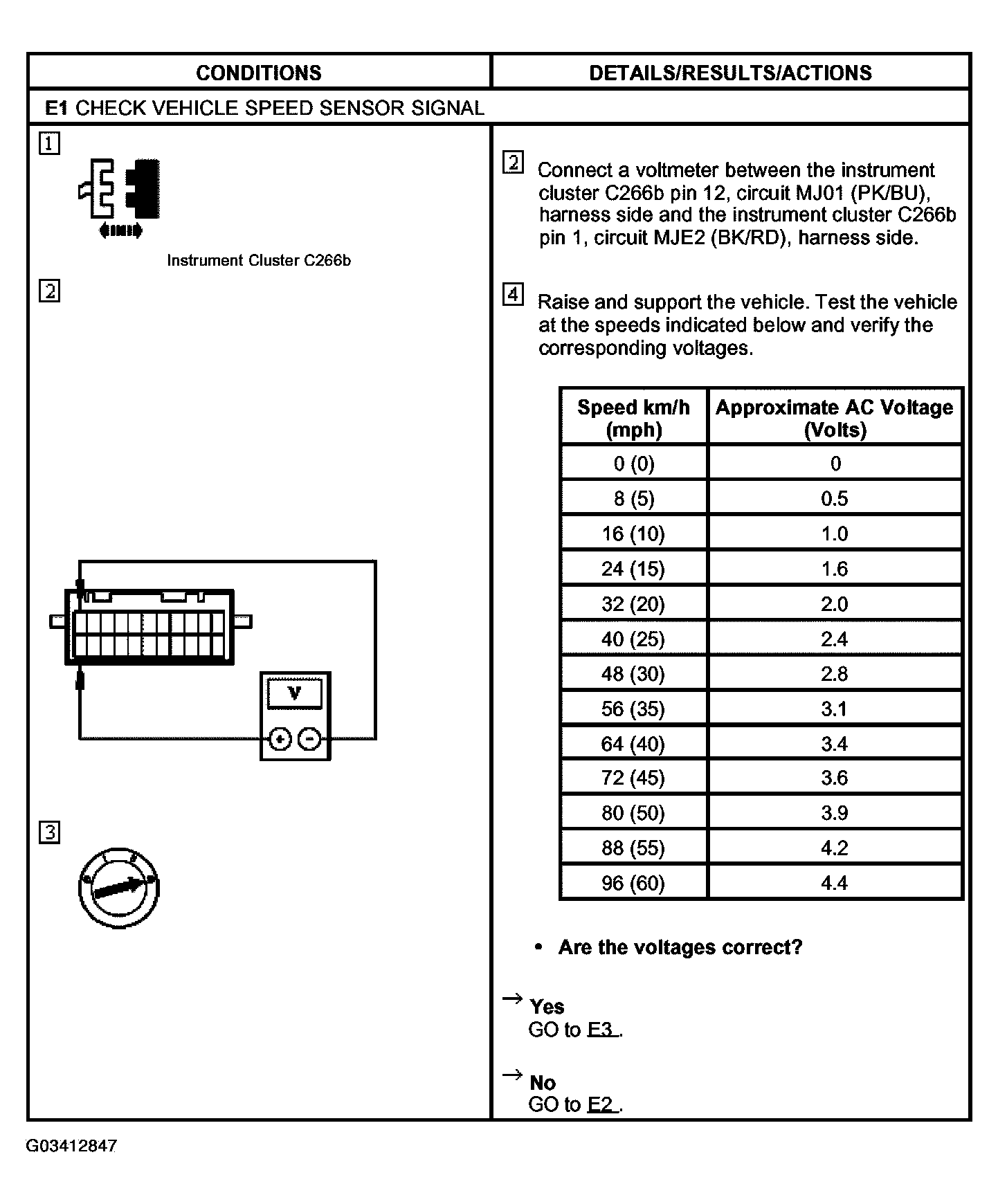

Fig 1: Pinpoint Test E: Speedometer/Odometer Is Inoperative (E1)
G03412847Courtesy of FORD MOTOR CO.

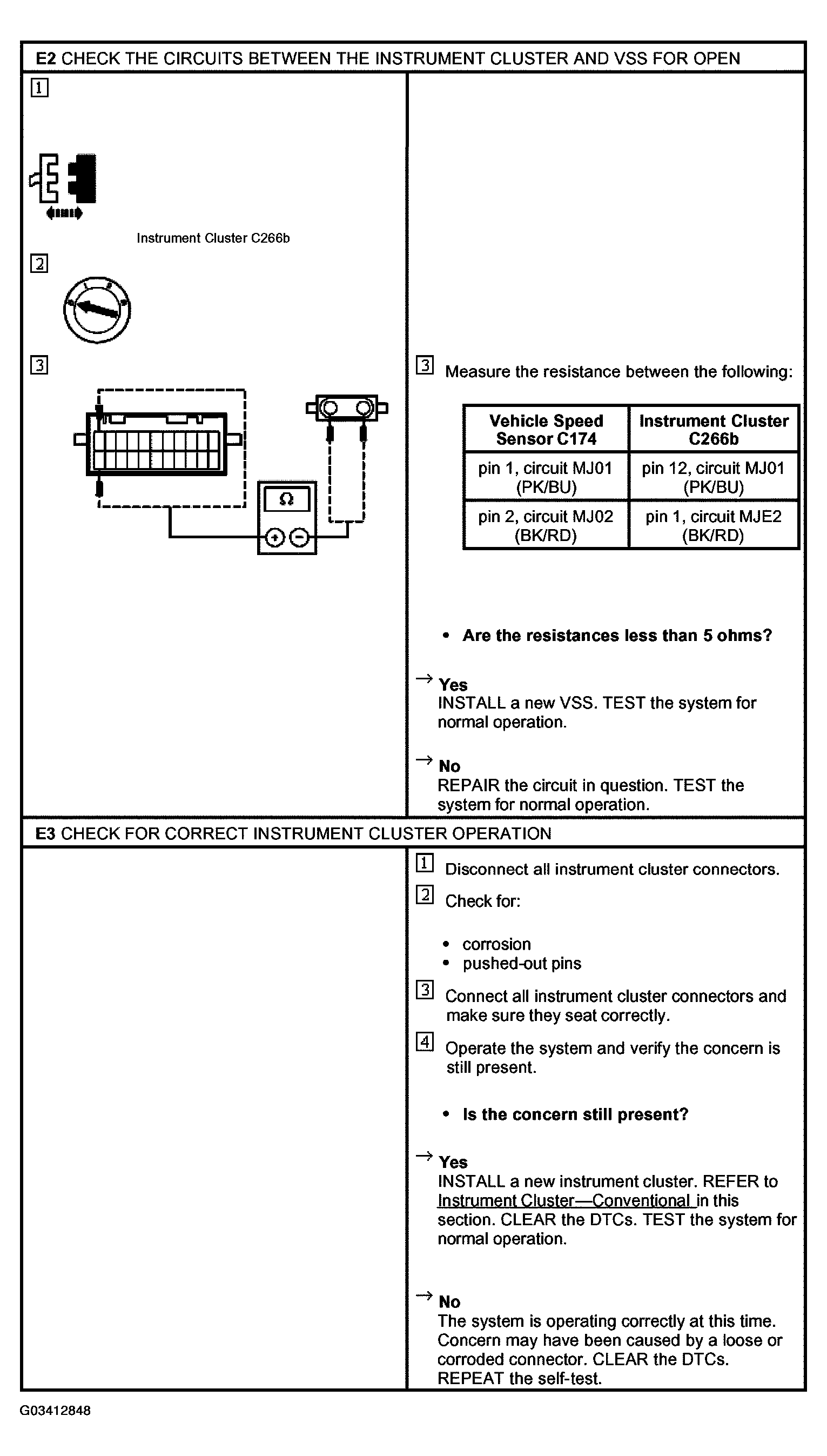

Fig 2: Pinpoint Test E: Speedometer/Odometer Is Inoperative (E2-E3)
G03412848Courtesy of FORD MOTOR CO.
